6 Installing a Projector with the Ceiling Bracket

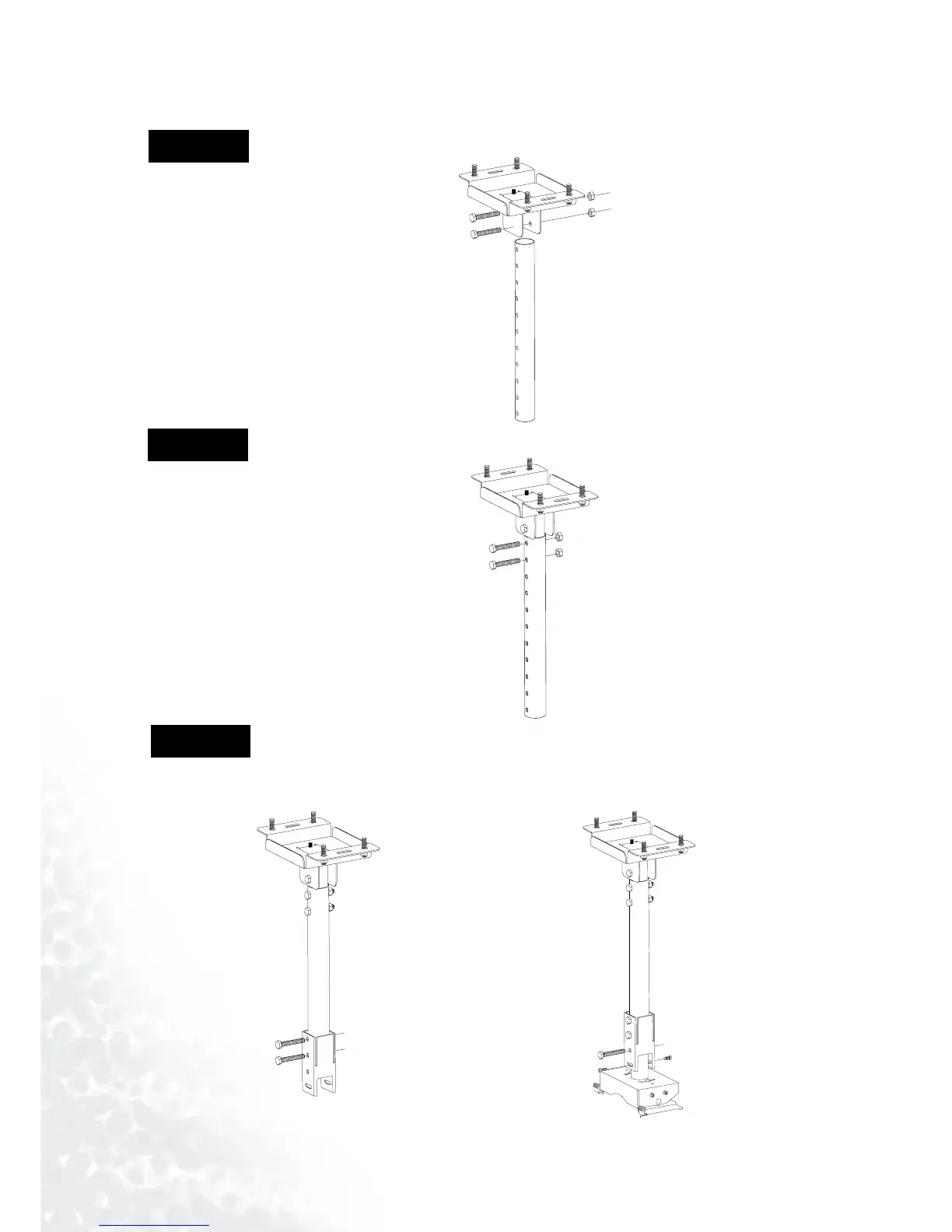

Install the TUBE and the U-PLATE with 2 sets of BOLTS & NUTS (TUBE BOLT).
Install the PIPE and the TUBE with 2 sets of BOLTS & NUTS (L-ADJUST BOLT).
Install the base-assembly.
STEP D1 Combine the SQUARE TUBE and the
PIPE with 2 BOLTS.
STEP D2 Install the ADJUSTMENT ASSEMBLY to the
SQUARE TUBE with one BOLT and 2 M3 SCREWS.
STEP D
TUBE BOLTS x 2
NUTS x 2
TUBE
STEP B
PIPE
L-ADJUST BOLTS x2
NUTS x 2
STEP C
M3 SCREWS BOLT
To Next Page
