Installing a Projector with the Ceiling Bracket 7

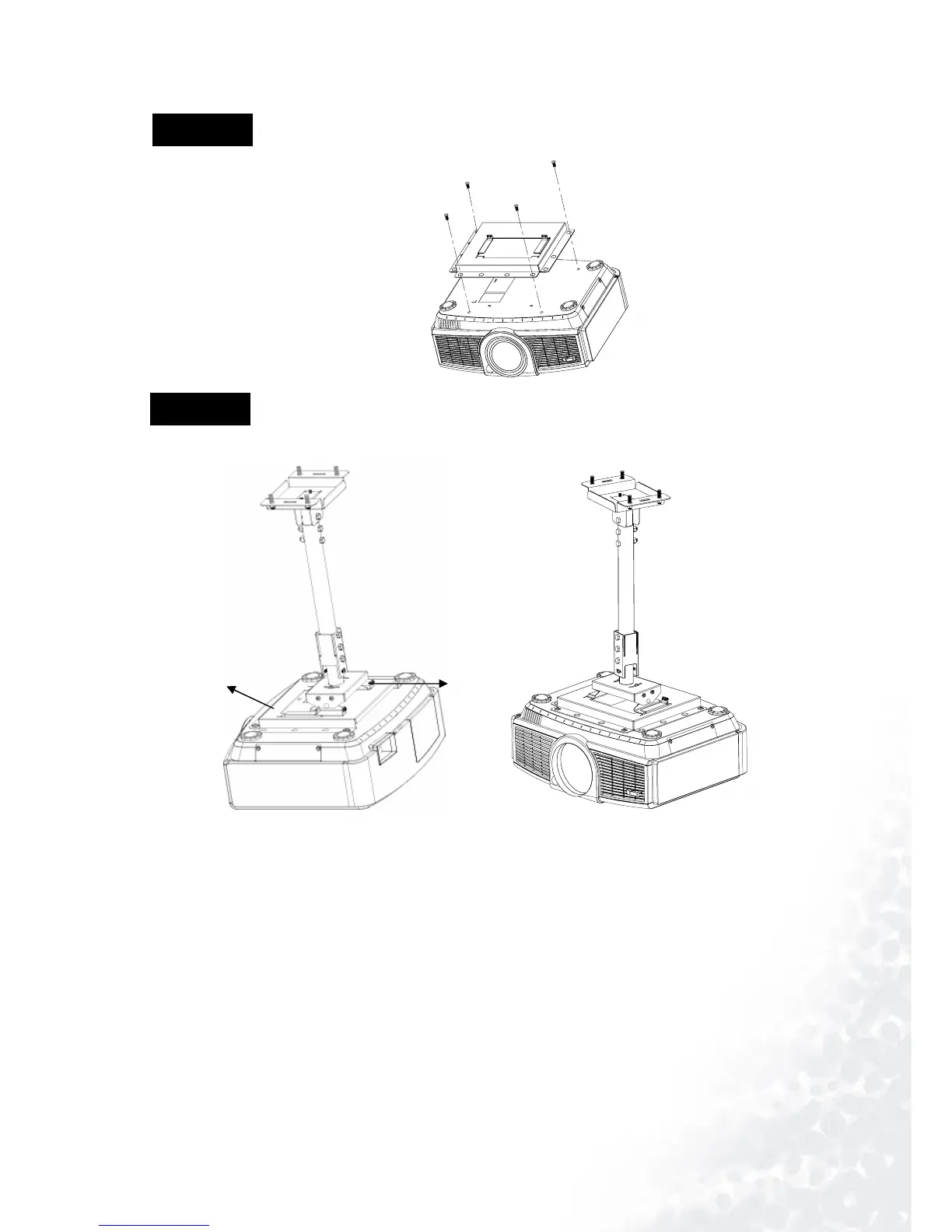

Assemble the PROJECTOR ADAPTER and PROJECTOR with 4 M6 SCREWS.
Slide the projector with adapter into the ceiling assembly and fix the projector with 4 M3 SCREWS.
Installation finished.
M6 SCREW
Ceiling mount bracket
BASE-ASSEMBLY
STEP F
STEP E
M3 SCREW
