Model 865-A Deep Sea Acoustic Release/Transponder M-855-009
Benthos, Inc.
6
BATTERY
CONNECTOR
COVER PLATE
ASSEMBLY TUBE
CONNECTOR
(FEMALE)
CHASSIS BATTERY
PACK
(MALE)
CHASSIS
END CAP
BENTHOS
BATTERY PACK
HOUSING
NO. 2
PLATE
TUBE
CONNECTOR
(FEMALE)
TRANSDUCER
NO. 1
P.C. BOARD
TRANSDUCER CONNECTOR (MALE)
DELRIN BUSHING
ELECTRONICSP.C. BOARD
TRANSDUCER
END
ANODE

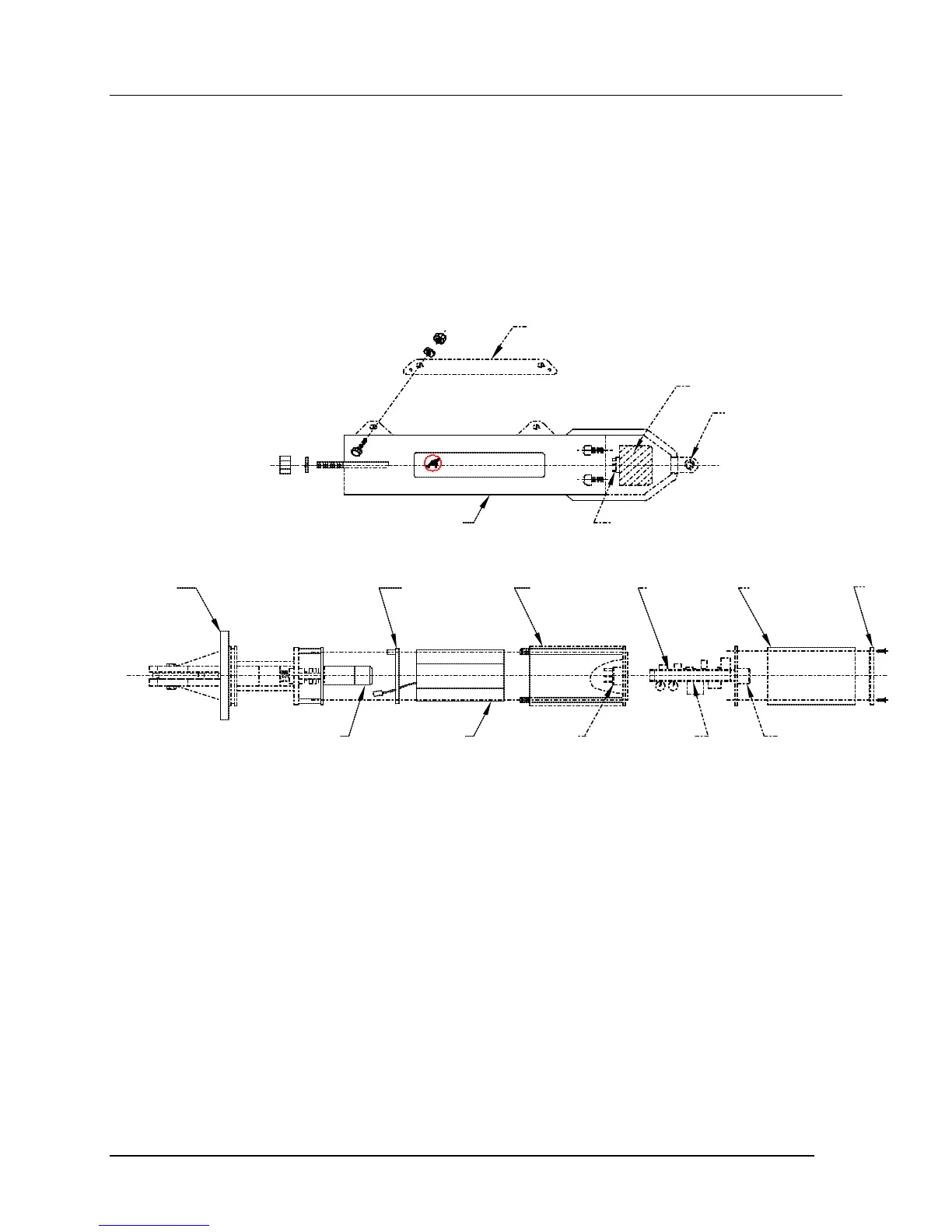

Exploded View of 865-A Release
Figure 2-1
