Service and Installation Manual
2. Put the door with care horizontally.

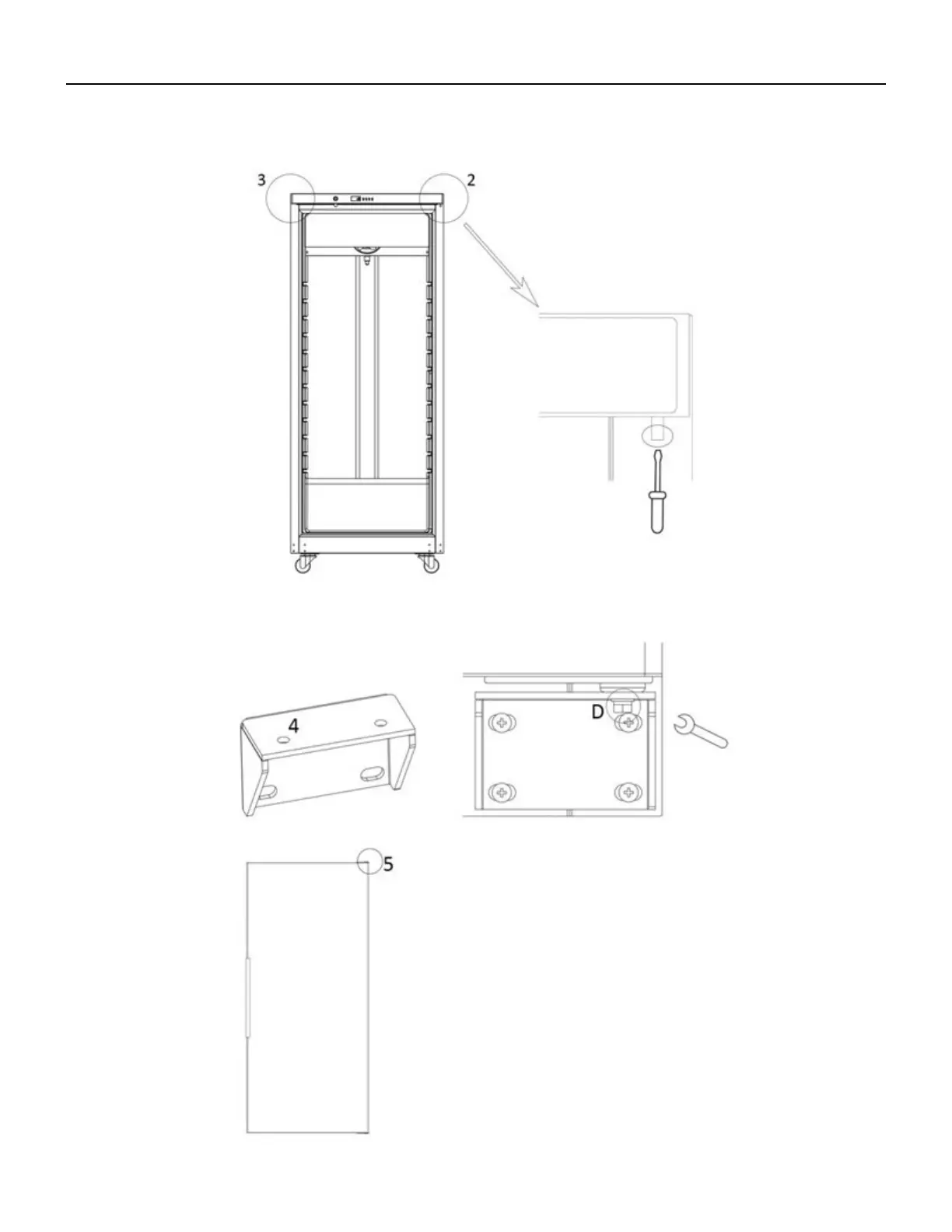

3. Use slot type screwdriver to remove the upper hinge axis in position 2 and screw it into the opposite side
position 3.
4. Use hexagon wrench to remove the hinge axis D from the door and the bottom hinge, insert it into the
opposite hole of bottom hinge, position 4, and screw into position upper axle hole, position 5.
