12 • OWNER/OPERATOR MANUAL BK45760 Rev. A (02-15)

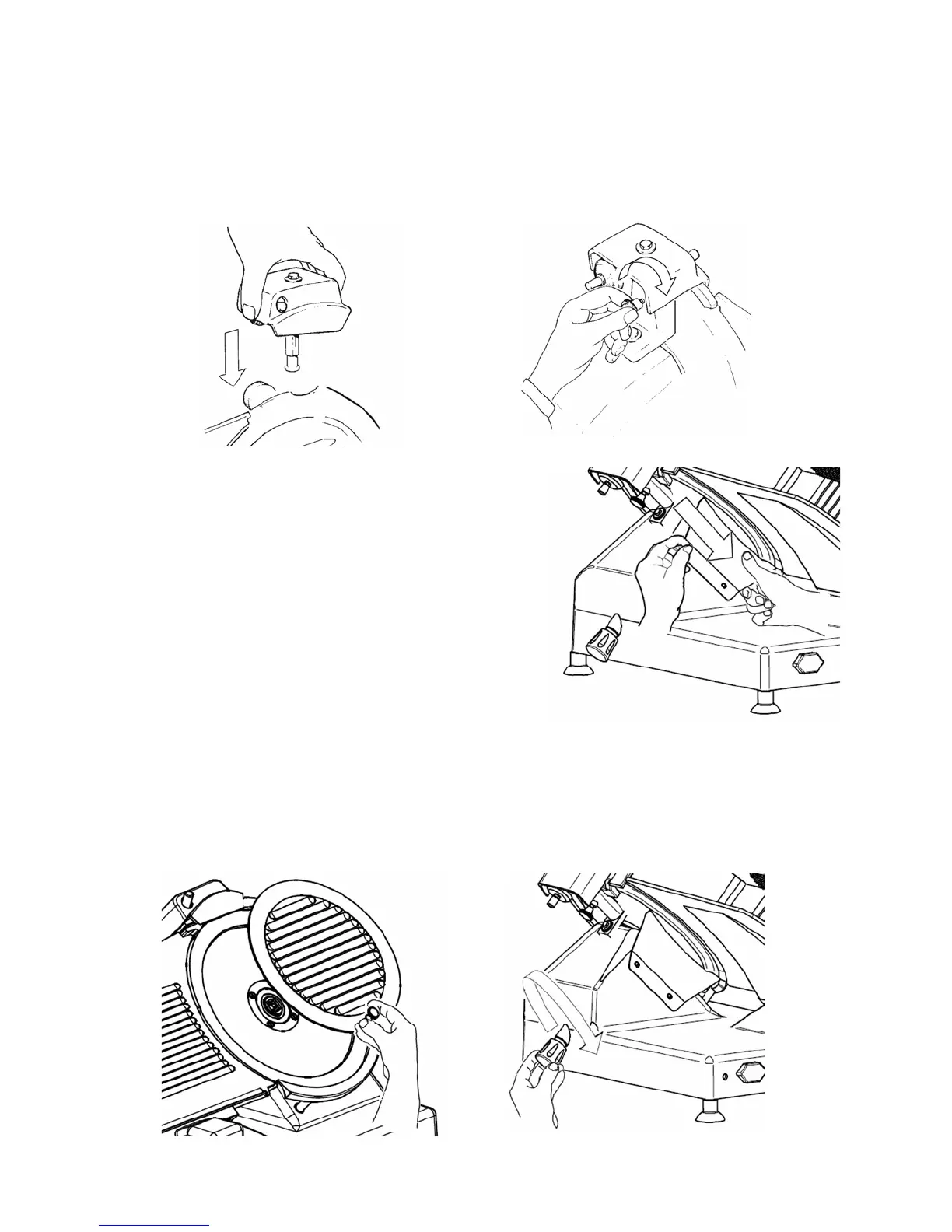

REASSEMBLING THE SLICING MACHINE
Reassembling the sharpener
 0DNHVXUHWKHVKDUSHQHUNQREDWWKHEDVHRIWKHVKDUSHQHULVORRVHDERXWWXUQV
2. Insert the sharpener as shown in the picture until it stops at its correct position and screw the
knob.
5HDVVHPEOLQJWKHVOLFHGHÀHFWRU
 3ODFHWKHVOLFHGHÀHFWRUFDUHIXOO\LQLWVSODFHDVVKRZQ
in the picture.
Reassembling the Center Plate
 Replace the center plate as shown in the picture making sure the section joint is in its proper
place.
2. Insert the tension rod for locking and screw completely.
3. Reassemble carefully and do not strip the rod threads or center plate bushing threads.
