Berkel 825A - Wiring Diagram

Fuse
0.5 A
12
34
5
L1L2
L3 U V W N
Start
Stop
Motor
Pilot
Light
Line
Line

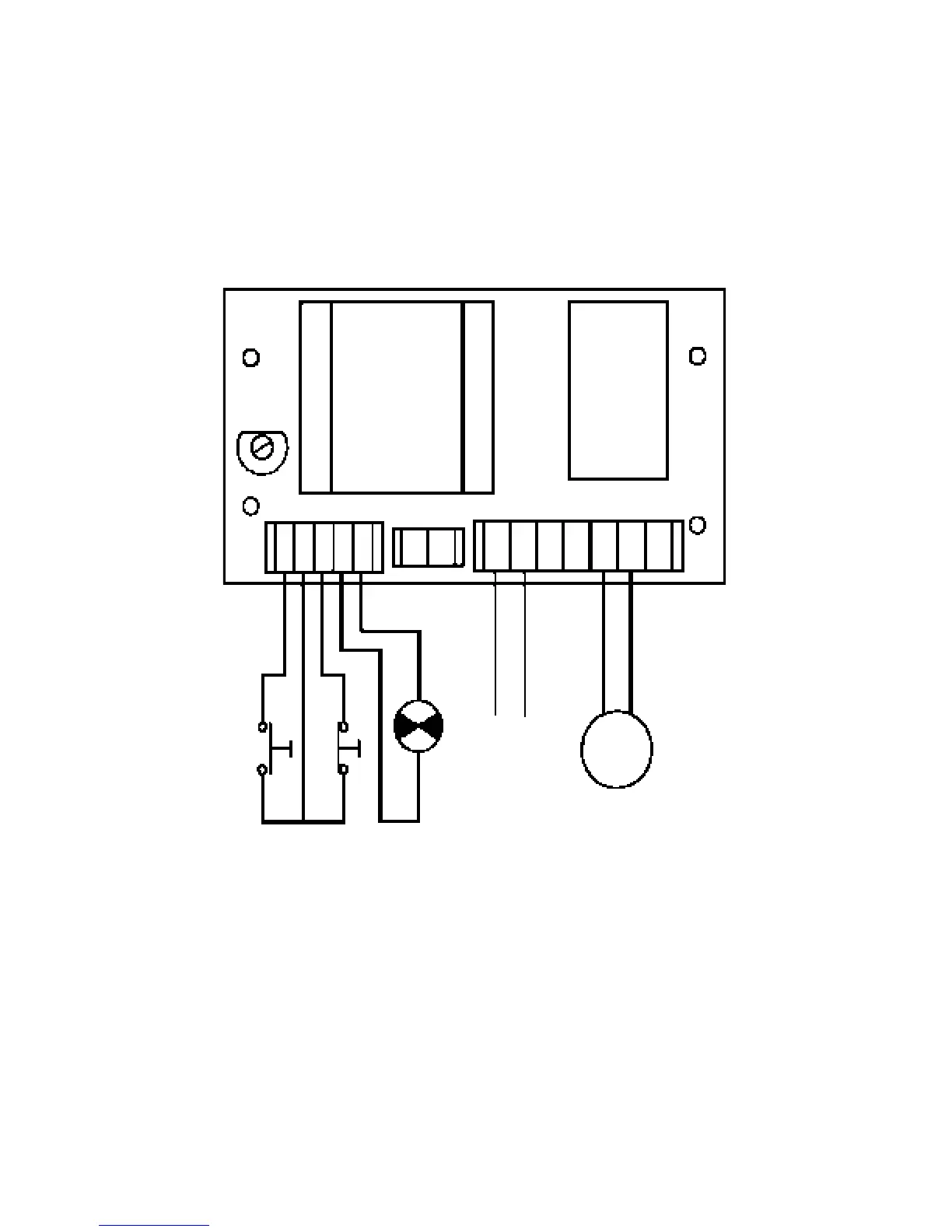

Wiring diagram for 827 and 825 slicers with center plate interlock.
This is the new style box that replaces the switch/relay assembly,
part number 827-00039.
