Bernard INTELLIBUS FF - 3 Foundation Fieldbus Interface; Hardware Description

INTELLIBUS
Number : NR 1157
Revision : B
Page 4/19
Instructions for start-up
3 FOUNDATION FIELDBUS INTERFACE
3.1 Hardware description

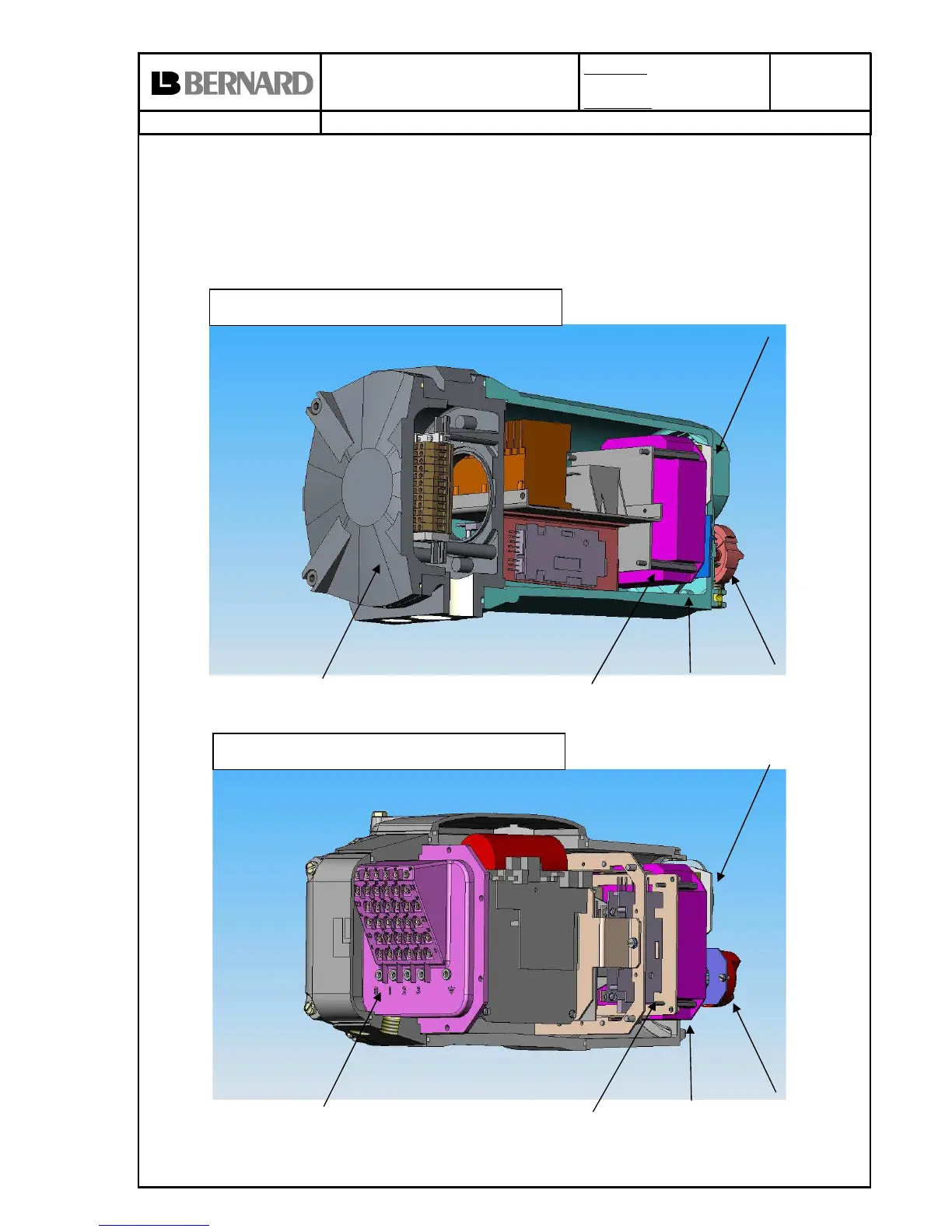

The Fieldbus module " INTELLIBUS FF " located in the actuator is plugged on to the main
Intelli+ board and no access is needed.
Connection box
INTELLI+
board
Button for
local control
Display
INTELLIBUS board
FPX: INTELLI+ explosion proof box
Connection box
INTELLI+
board
Button for
local control
Display
INTELLIBUS board
FPI: INTELLI+ water proof box
