Berner Architectural High Performance 10 User Manual

-3-
www.berner.com Berner International 800.245.4455
111 Progress Ave. / New Castle / PA / 16101 / USA
Use threaded rod
to hang from the
ceiling instead of
the wall - using
the factory
installed
threaded inserts.
1
2
3
4

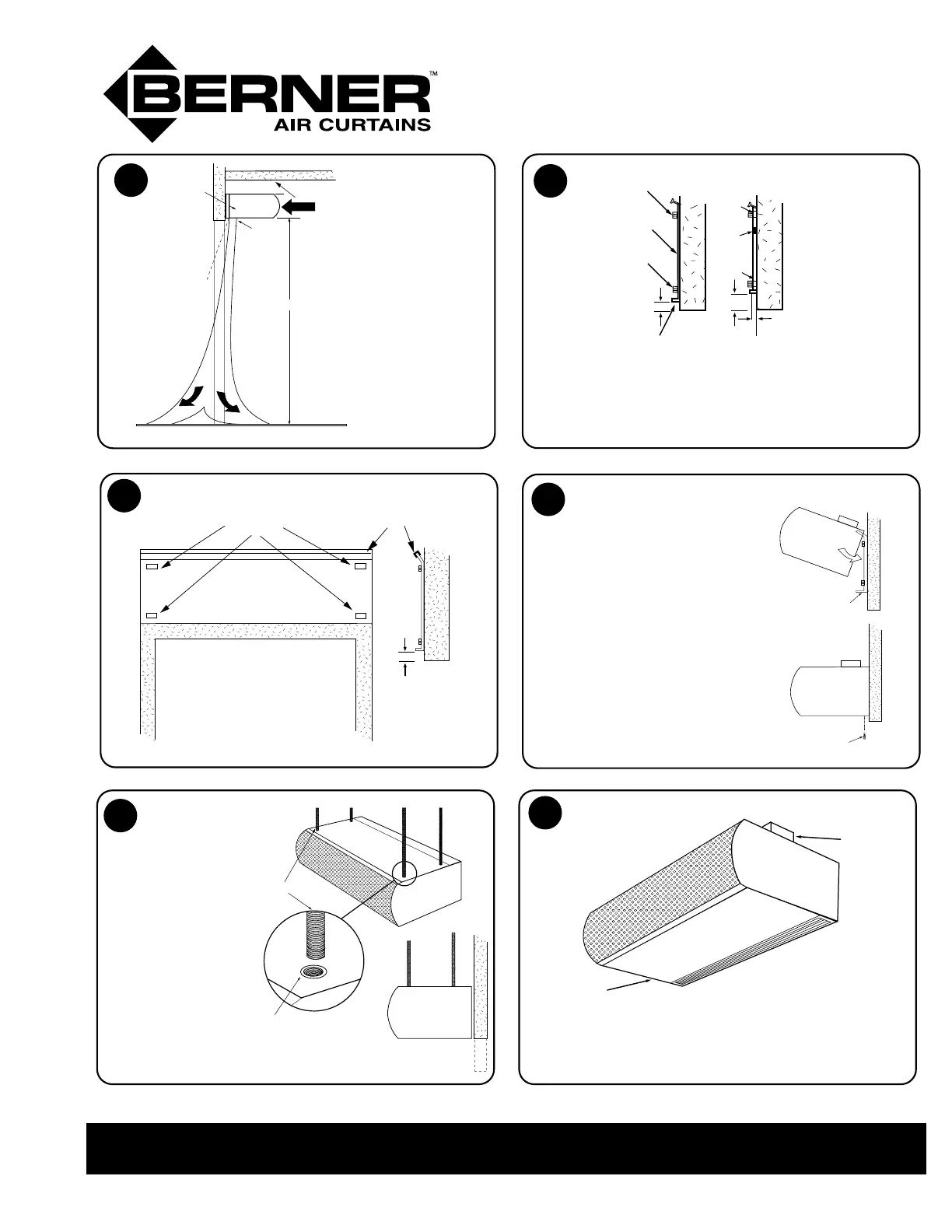

Ships fully assembled with a mounting plate
To wire – follow the wiring diagram (found inside
the junction box).
The controls ship in the same box as the air curtain.
1" max.
Doorway
Opening
5
6
For more information see page 4
For more information see page 4
For more information see page 5 For more information see page 5
For more information see page 5 For more information see page 6
After hanging the
mounting plate, drop
the air curtain into
place & add locking
screws.
2 Locking Screws
(One In Each Corner)
Mounting
Plate
45˚ Lip and Rubber
Vibration Gasket
Discharge
Nozzle
Before hanging,
check to see what
the clearance is
above the door.
6' minimum
20˚
8" minimum*
AIR
Discharge
Nozzle
4" minimum
side
clearance
from
combustible
material*
A
I
R
A
I
R
*Electrically Heated Units Only
INTERIOR
EXTERIOR
Rule of thumb – If the unit must be mounted
higher than 1” above the opening, it must be
spaced out from the wall 3/8” for every inch the
unit is above the door opening.
1"
2"
Lower Lip
3/8"
Mounting
Screws
Mounting
Plate
Mounting
Screws
FLUSH WALL
MOUNT
EXTENDED
WALL MOUNT
Spacer
Spacer
Seal
1"
Doorway Opening
Recommended Mounting
Plate Holes
45º Lip and Rubber
Vibration Gasket
5/16" Recessed Insert
Side View
Suspension Rods
Simple to Install
Easy to operate & maintain
Junction Box
Hinged Bottom
Access Cover
