Berner IDC12 Series - Suspended Mounting; Vertical Mounting; TANDEM MOUNTING BRACKETS (for Vertical Mounting); Electrical Connections

B. Tandem Mounting Brackets connect the end plates of the
units to be joined. Two brackets are required. Ideally, the
units are joined together before the lower unit is bolted to
the oor.
C. Using (4) ½ - 13 x 1” bolts, attach the Tandem Mounting
Brackets to the inside of one of the unit’s end plates as
shown in Figure 8.
D. Slide the end plate of the next unit over the brackets
installed in Step C and attach using (4) additional ½” bolts as
shown in Figure 9.
E. Assemble Floor Mounting Brackets to lower unit and attach
to oor per steps C and D of Section V.
F. Electrical Connections - Proceed to Section VII.
VII. ELECTRICAL CONNECTIONS
All electrical wiring and connections MUST be performed
by qualied personnel in accordance with the National
Electrical Code ANSI/NFPA No. 70 (latest edition) or, in Canada,
the Canadian Electrical Code, Part 1-C.S.A. Standard C22.1, and
local codes and regulations.
-4-

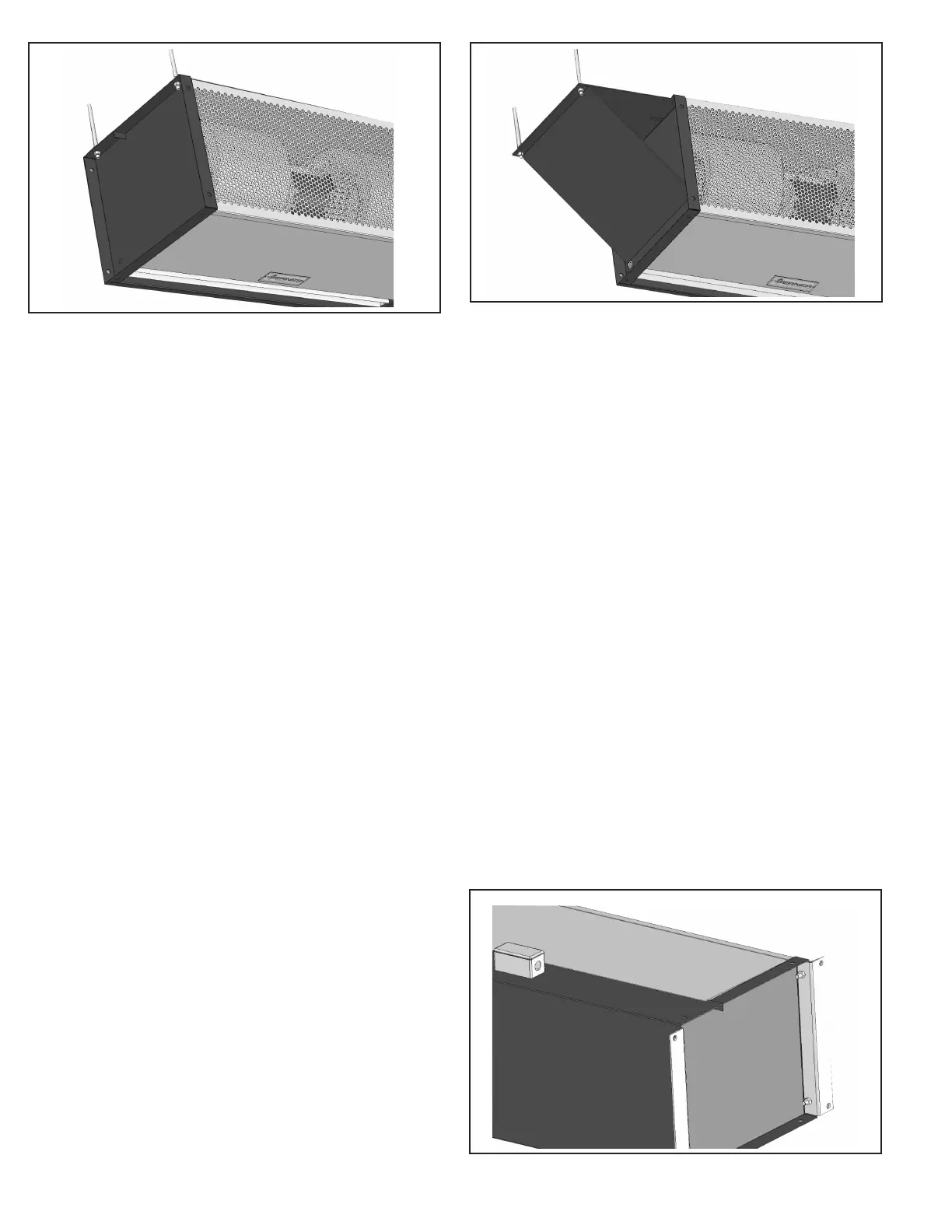

FIGURE 4 - With Extension Brackets
FIGURE 5 - Floor Mounting Brackets
FIGURE 3 - Threaded Rod Suspension
IV. SUSPENDED MOUNTING
A. Suspended mounting works well with the majority of door
types commonly found in an industrial setting, such as roll-
up doors, “high rise” track doors, “low-rise” turn back doors,
and “high-rise” turn back doors.
B. The IDC12/IDC14 Series end plates are equipped with ½”
holes for suspended mounting. The unit may be suspended
using a minimum
³
/” suspension rod (Figure 3), or using
³
/” suspension rods and extension brackets (available from
Berner). See Figure 4.
C. Electrical Connections - Proceed to Section VII.
V. VERTICAL MOUNTING
A. Vertical mounting works well when the opening is taller
than it is wide, or when the door type prevents a typical
“over-door” mounting position.
B. Optional Floor Mounting Brackets (available from Berner)
bolt to the unit end plate, and provide a rigid base to attach
the unit to the oor. Two Brackets are required.
C. To vertically mount a IDC12/IDC14 Series unit using optional
Floor Mounting Brackets, bolt brackets on the inside of the
end plate with (4) ½ - 13 bolts as shown in Figure 5.
D. Position the unit vertically in its intended position and
anchor it to the oor with a minimum
³
/” fastener.
See Figure 6.
E. To improve the stability of the installation, it is required
that the top of the unit be attached to the wall. A common
approach is to attach a minimum length of
³
/” threaded rod
through one of the open mounting holes in the top end
plate and ax the other end of the rod to the wall.
See Figure 7.
F. Electrical Connections - Proceed to Section VII.
VI. TANDEM MOUNTING BRACKETS
(For Vertical Mount Installation)
A. Optional Tandem Mounting Brackets (available from Berner)
are used to join two air curtains together in a vertical
application when the door height exceeds 16’.
