Bernina 570 QE - User Manual

Bernina 570 QE
208 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...

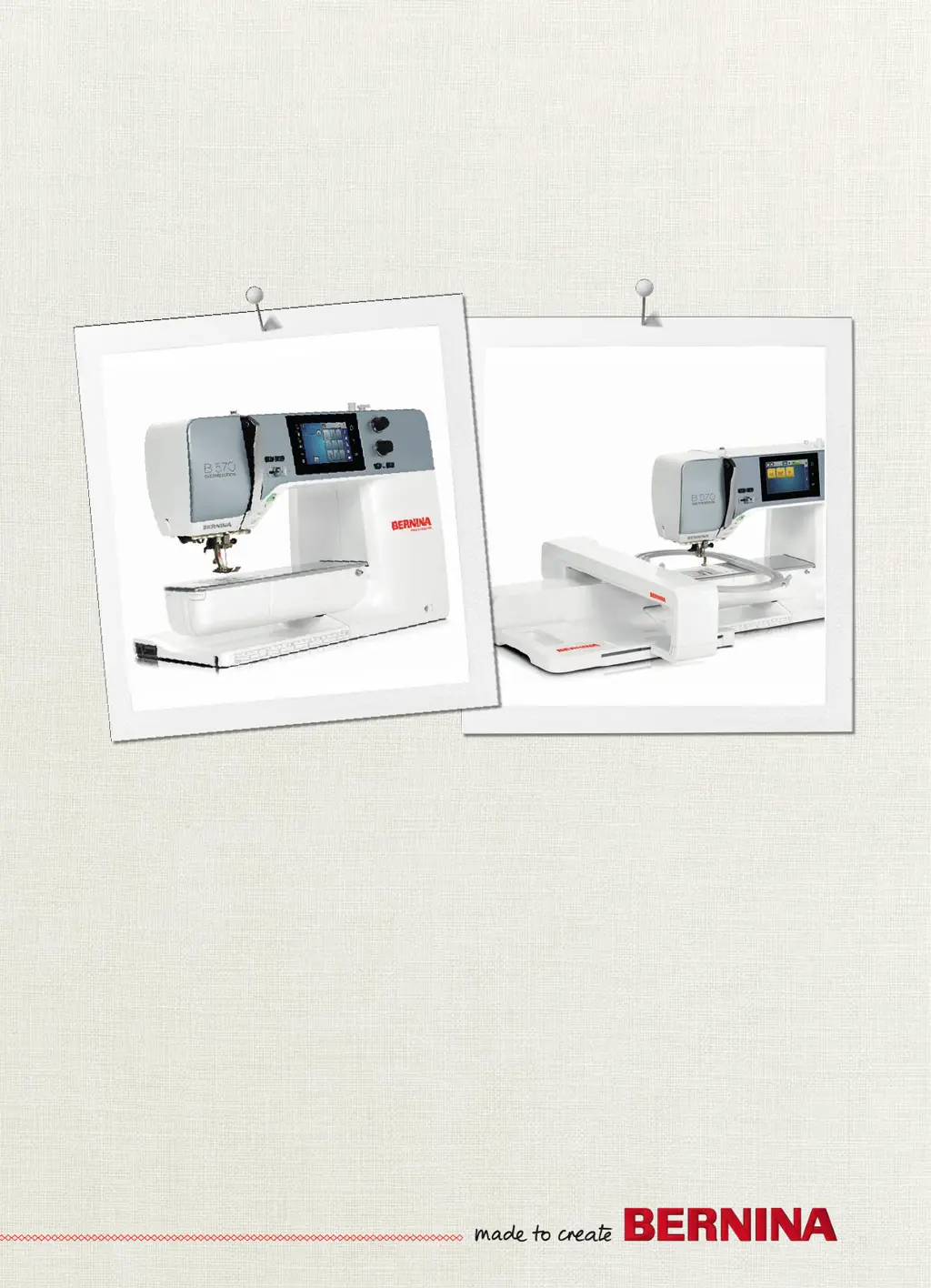

BERNINA 570 QE
User manual

Table of Contents

Other manuals for Bernina 570 QE

Questions and Answers

  • C
    Corey SingletonSep 23, 2025
    Why is the bobbin thread indicator not reacting on my Bernina Sewing Machine?
    • Z
      zroachSep 23, 2025
      If the bobbin thread indicator isn't reacting on your Bernina sewing machine: * Check the settings in the Setup Program; activate it in the Setup Program. * If the bobbin thread indicator is defective, contact the specialized BERNINA dealer.
  • B
    Brittany SmithAug 23, 2025
    What to do if my Bernina 570 QE skips stitches?
    • T
      tdayAug 23, 2025
      Skipped stitches can occur if you're using the wrong needle, so ensure you're using the 130/705H needle system. Replace the needle if it is blunt or bent, and make sure it is a BERNINA quality needle. Check that the needle is correctly inserted with the flat side to the back, pushed as far as it can go into the needle holder, and that the screw is tightened. Finally, match the needle point to the material's texture.
  • C
    Calvin CruzAug 25, 2025
    What to do if my Bernina 570 QE Sewing Machine doesn't start?
    • J
      John RichardsonAug 26, 2025
      If the machine doesn't start, first ensure the room temperature is favorable by placing the machine in a warm room one hour before use, and make sure it's connected and switched on. If it still doesn't start, contact a specialized BERNINA dealer as the machine may be damaged.
  • J
    jonessarahAug 27, 2025
    How to resolve an error during a software update on my Bernina Sewing Machine?
    • A
      Angel WoodAug 27, 2025
      If you encounter an error during a software update, first ensure you are using a BERNINA USB stick. If the update process is blocked with an inactive hourglass, remove the USB stick, switch the machine off and on, and then follow the display instructions. If the software update data cannot be found, unzip the update data and save it directly onto the USB stick, not within a folder.
  • D
    Dr. Jack HowellAug 27, 2025
    Why does the upper thread keep breaking on my Bernina 570 QE?
    • E
      Edward OchoaAug 27, 2025
      If the upper thread keeps breaking on your Bernina sewing machine, consider the following: * The needle and thread combination might be incorrect; match the needle with the thread size. * The upper thread may be too tight; reduce the upper thread tension. * The machine might be incorrectly threaded; rethread it. * The thread quality could be poor; use quality thread. * The stitch plate or hook tip may be damaged; contact a specialized BERNINA dealer for repairs. * The thread may be caught in the area of the thread take-up lever; replace the stitch plate.
  • B
    Brittany KnightSep 15, 2025
    How to resolve faulty stitching on my Bernina Sewing Machine?
    • S
      sheilaphillipsSep 15, 2025
      Faulty stitching on your Bernina sewing machine can often be resolved by checking for these issues: * Thread remnants between the thread tension discs; fold a piece of thin material and slide the folded edge (not the raw edges) between the thread tension discs. * The machine may be incorrectly threaded; rethread it. * Thread remnants below the bobbin case spring; remove the thread remnants under the spring.
  • D
    Debbie DuncanSep 12, 2025
    What to do if the bobbin thread indicator doesn't react on my Bernina 570 QE Sewing Machine?
    • J
      joseph32Sep 12, 2025
      If the bobbin thread indicator isn't reacting, first check the Setup Program to ensure it is activated. If the issue persists, contact a specialized BERNINA dealer, as the bobbin thread indicator may be defective.
  • E
    Elizabeth RobinsonSep 14, 2025
    Why is my Bernina Sewing Machine needle breaking?
    • P
      patricia60Sep 14, 2025
      A breaking needle on your Bernina sewing machine could be due to several reasons: * The needle may be incorrectly inserted; insert the needle with the flat side to the back as far up as it will go into the needle holder and tighten the screw. * The fabric might be pulled; feed the fabric evenly. * Thick fabric may have been pushed; use the appropriate presser foot, such as Jeans foot No. 8 for thick material. * The thread may be knotted; use quality thread.
  • L
    Lauren PatelSep 5, 2025
    Why is my Bernina Sewing Machine breaking the lower thread?
    • B
      Breanna WilsonSep 5, 2025
      Lower thread breakage can occur if the bobbin case is damaged, in which case you should replace it. If the stitch hole in the stitch plate is damaged, contact a specialized BERNINA dealer for repairs. Also, ensure the needle isn't blunt or bent; replace it if necessary.
  • C
    Carrie HowardSep 2, 2025
    Why does my Bernina Sewing Machine needle keep breaking?
    • G
      gonzalezstephanieSep 2, 2025
      A broken needle can result from several issues. Ensure the needle is correctly inserted with the flat side to the back and pushed fully into the needle holder before tightening the screw. Avoid pulling the fabric; instead, feed it evenly. For thick fabrics, use an appropriate presser foot like Jeans foot No. 8. Also, be sure to use quality thread to prevent knotted thread from causing the needle to break.

Bernina 570 QE Specifications

General IconGeneral
Stitch Width9 mm
Maximum Sewing Speed1000 stitches per minute
Sewing Space to the Right of the Needle8.5 inches
Color Touch ScreenYes
Automatic Thread CutterYes
Adjustable Presser Foot PressureYes
Start/Stop ButtonYes
Needle Positions11
Bernina Free Hand System (FHS)Yes
Stitch Length6 mm
LCD ScreenYes
Memory FunctionYes
USB PortYes
