REQUIRED TOOLS
10 mm 13 mm
INSTALLATION INSTRUCTIONS 1
1. Before installing the shower toilet, you should ensure that the bathroom is protected by a residual current circuit
breaker. It is also recommended that power connections are at least 30 cm from the centre of the toilet. As the
model complies with protection class IPX4, other sanitary installations such as the washbasin or bathtub should

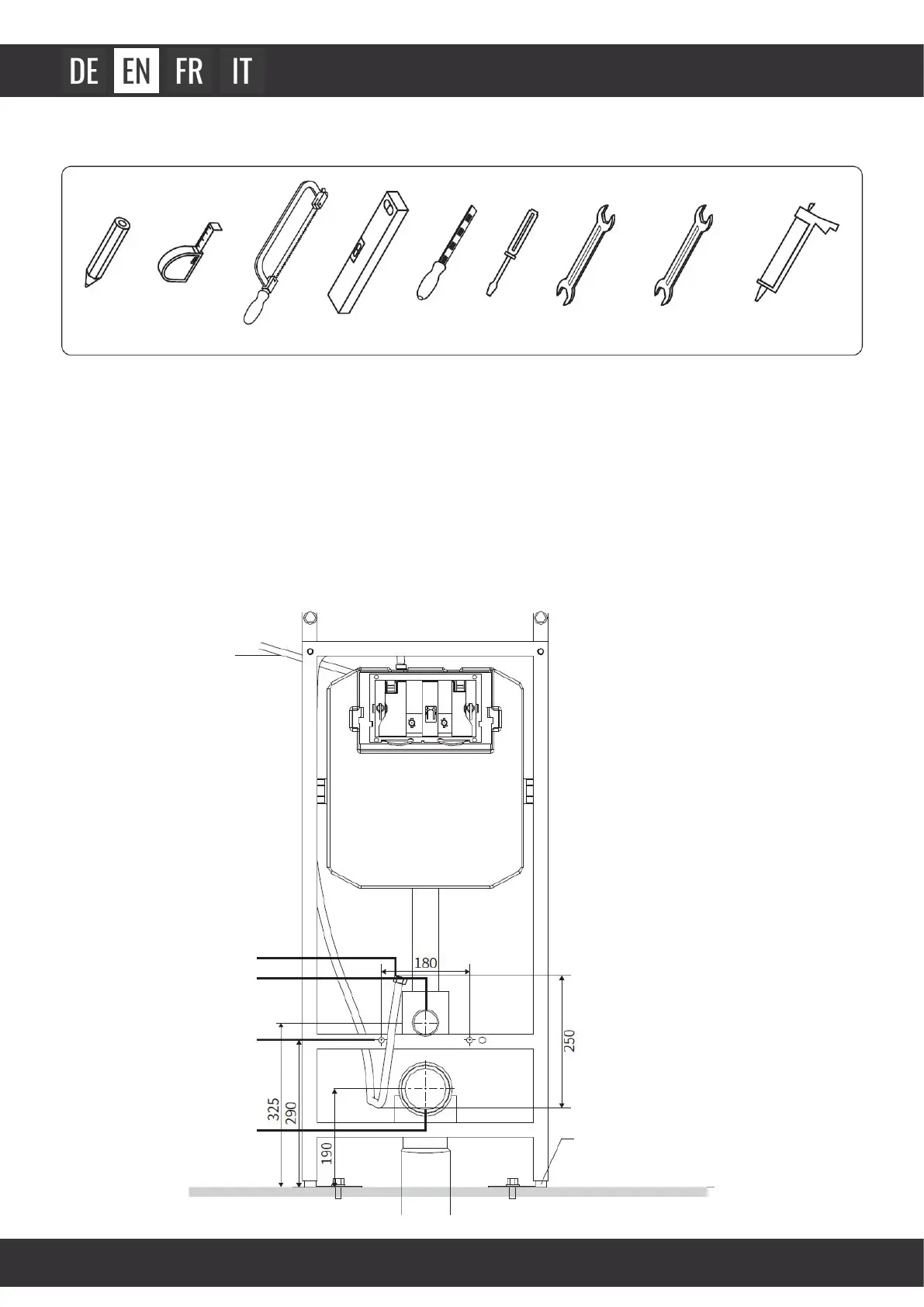

be at least 60 cm away from the power connection. Check the alignment of your pre-wall installation as shown in
the drawing and then arrange the water outlet pipe in front of the toilet. then arrange the water outlet pipe in front
of the wall.
Water inlet pipe
Water outlet pipe
Flushing opening
Sewage connection
Installation openings
Adjustable for raising or lowering
Level ground
BERNSTEIN SHOWER-WC T620 Pro
