3. INSTALLATION INSTRUCTIONS
CHOOSING THE DOOR THICKNESS

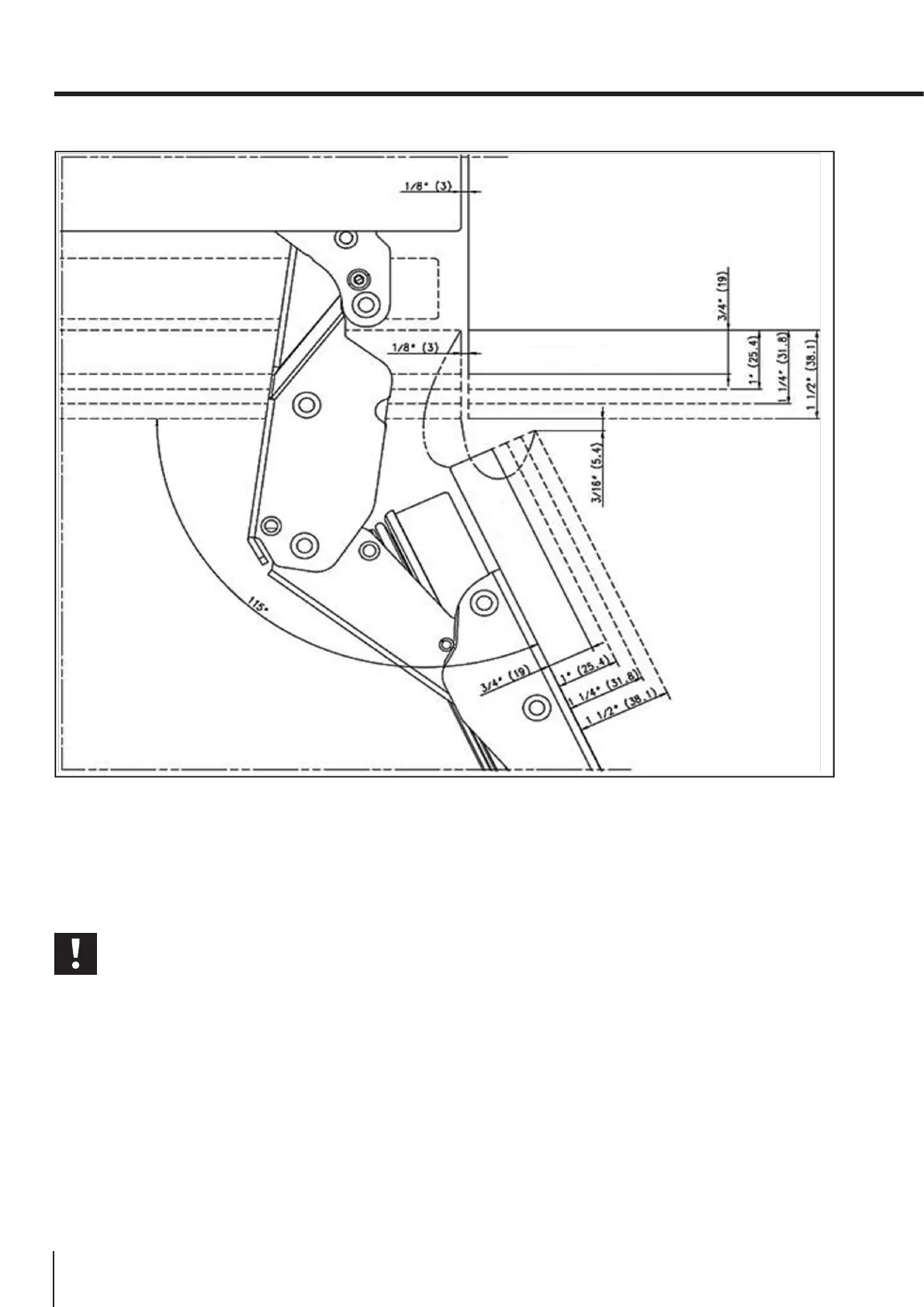

• The door of your refrigerator can open to 115°
maximum. If you want the doors to open to this
degree, you can choose from the thicknesses
shown in the image above.
WARNING:
If the door thickness is more than 1½” (38
mm), the door should not open more than
90°. You must use a limiting pin on the
hinge.
A limiting pin is provided with the unit to prevent
the door from opening beyond 90° if necessary;
it can be installed on the hinge. Door thickness
allowances when using the limiting pin are shown
in the diagram below.
Cabinet front
Front panel
