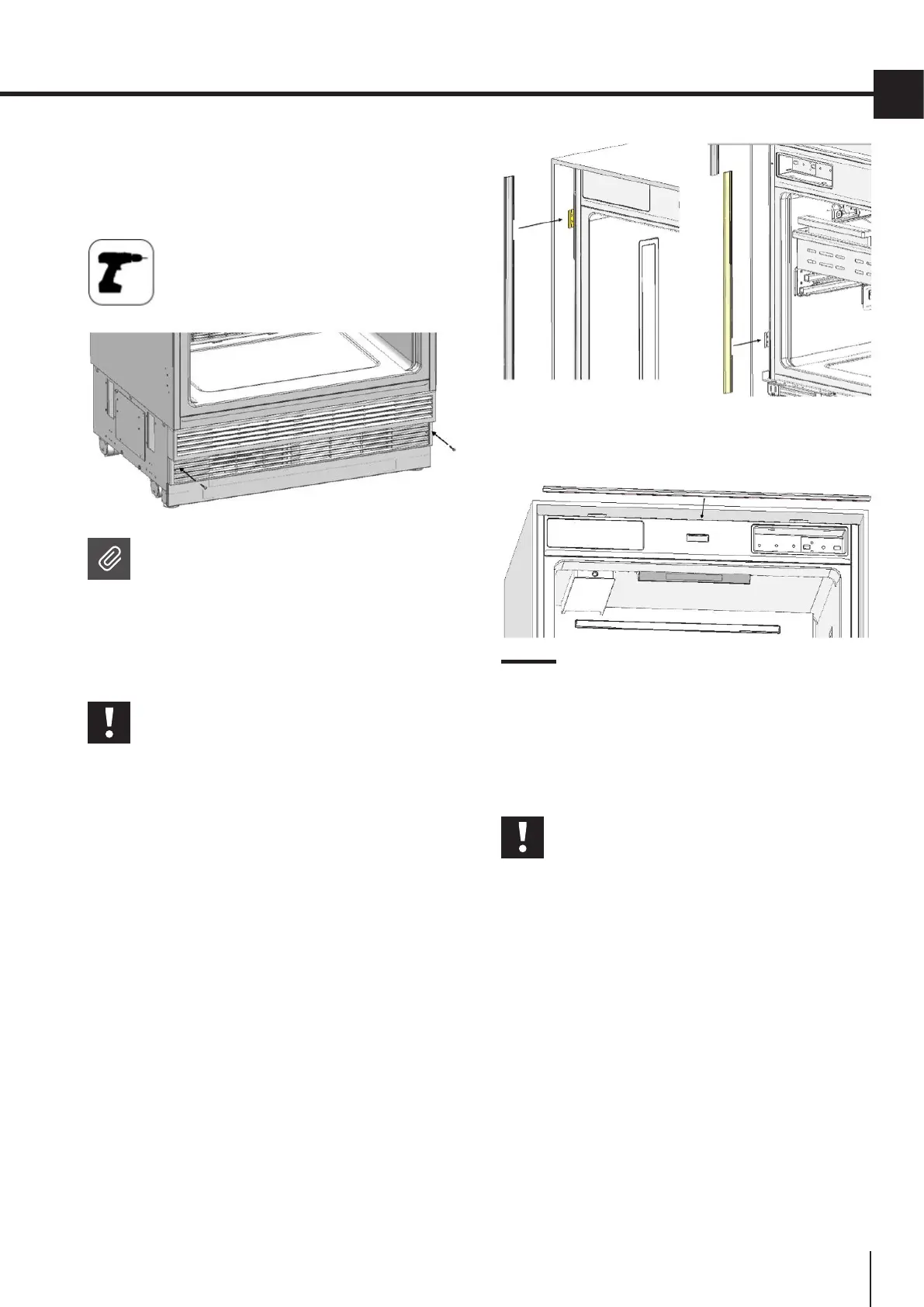

ATTACHING THE LOWER VENT APERTURE
ASSEMBLY
• Use 2 screws to attach the lower vent aperture
component.
NOTE:
The lower grill can be adjusted to
accommodate the cabinet toe kick. Also, a
piece of decorative cabinet toe kick material
can be axed to the lower grill to match the
cabinets, provided there is no obstruction
to vent grills and air flow.
WARNING:
If installing a one-piece cabinet toe kick
across the front of the fridge, you must
ensure proper air flow and no obstruction
to the vent grills.
ATTACHING THE DECORATIVE TRIM COVERS
• The decorative side trim is a soft plastic material
with a barbed end intended to be inserted
between the cabinet gable and the appliance
body (#1), onto the right/left connection brackets.
Some trimming may be required to ensure the
trim pieces can fit around the brackets; the
thickness of the barbed end may also require
trimming depending on the width of the gap
between the side body and the cabinet gable.
• Push in the finished trim (#4) on the upper
connection bracket.
3.5 Overlay Panel Installation and
Preparation
This section contains information about preparing
the cabinet doors and mounting them on the
product.
WARNING:
Maximum weights of the panels to be
mounted on the unit are as follows:
Bottom Mount Fridge Door: 35 lbs (16 kg)
French Door Fridge Doors: 26 lbs (12kg)
Freezer Door: 20 lbs (9 kg)
