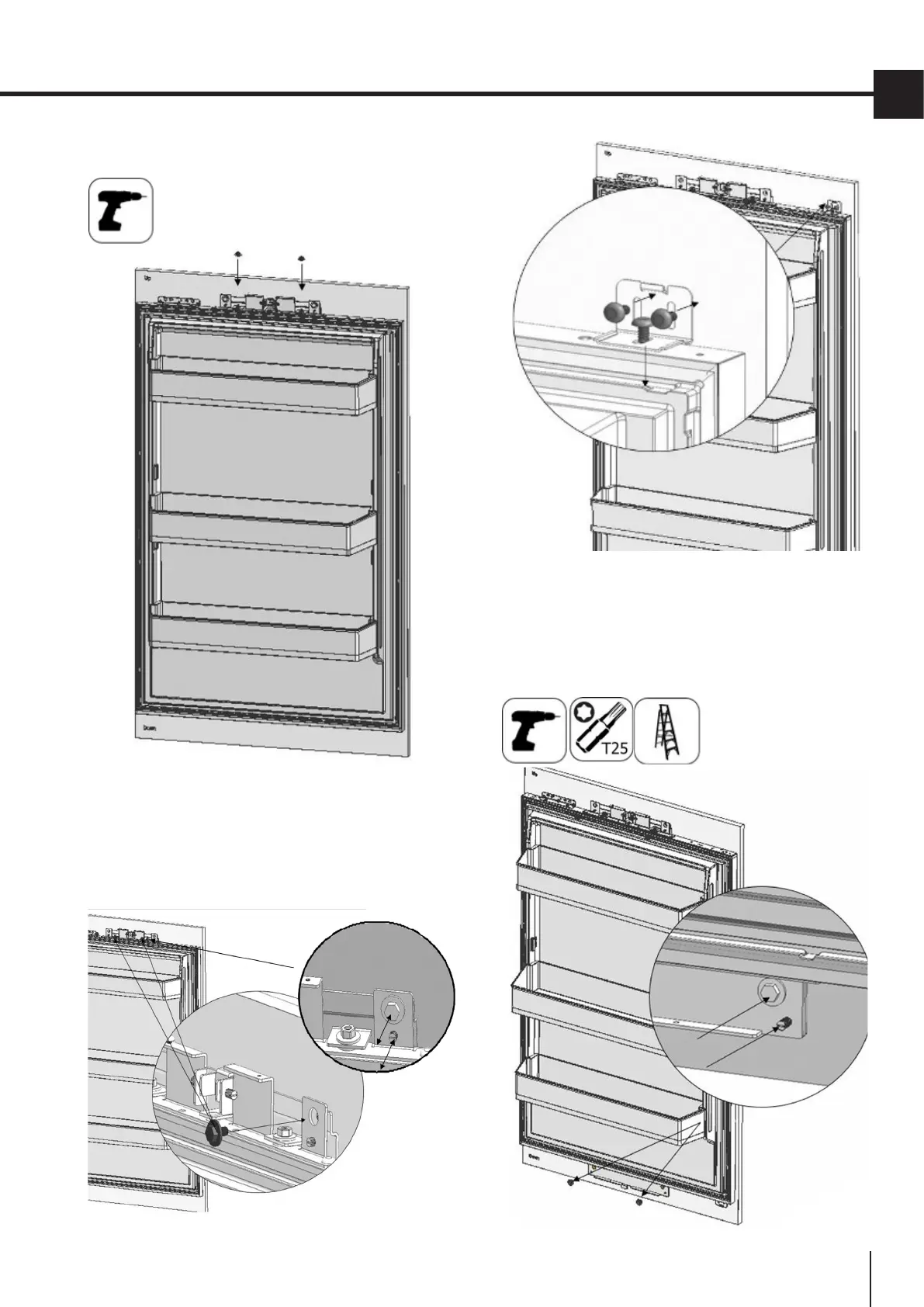

• Mount the two screws removed from here onto
the adjusting bolts.
• Adjust the upper part of the door using 2 screws
removed from the bracket (shown below)
together with 2 slotted screws.
• Use the bracket (#21) to join the door panel and
the fridge door, then use 2 screws (#20) and 1
screw (#22) to fasten them together.
• Adjust the lower part of the door using 2 screws
removed from the bracket (shown below)
together with 2 slotted screws.
• Use the bracket (#21) to join the door panel and
the fridge door, then use 2 screws (#20) and 1
screw (#22) to fasten them together.
