ADJUSTING THE FREEZER DOOR PANEL
1. Use the freezer cabinet door adjustment washer
to align the top part of the door panel.
2. Adjust set screw 1 (see the illustration) to shift
the panel from side to side.
3. Select the mounting hole (see the illustration) to
shift the panel forward/backward, then screw in
the mounting screw to secure the panel in place.
4. Adjust set screw 2 (see the illustration) to shift
the panel forward/backward; engage the bolt to
secure the panel in place.
5. Adjust the double-threaded bolts securing the
lower part of the door panel.
6. Engage the locking bolt to secure the lower part
of the panel in place.

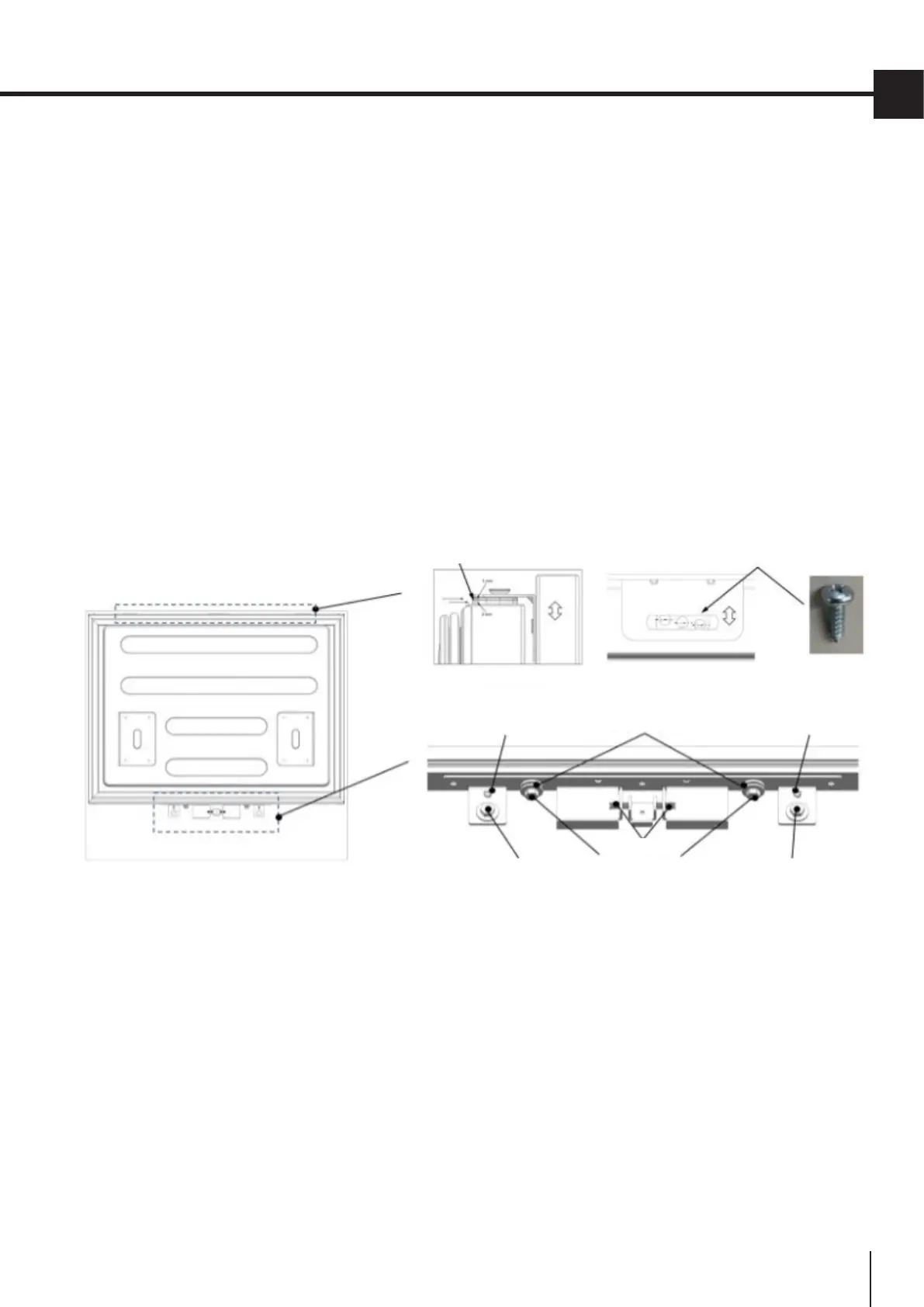

Panel-Adjustment Mechanisms
Bolt Bolt
Set screw 2 Set screw 2
Set screw 1
Washer and nut
Double-threaded bolt
Panel alignment
Freezer cabinet door adjustment washer
To shift panel forward/backward
Mounting screw
ST4.8x16
To Next Page
