B-9

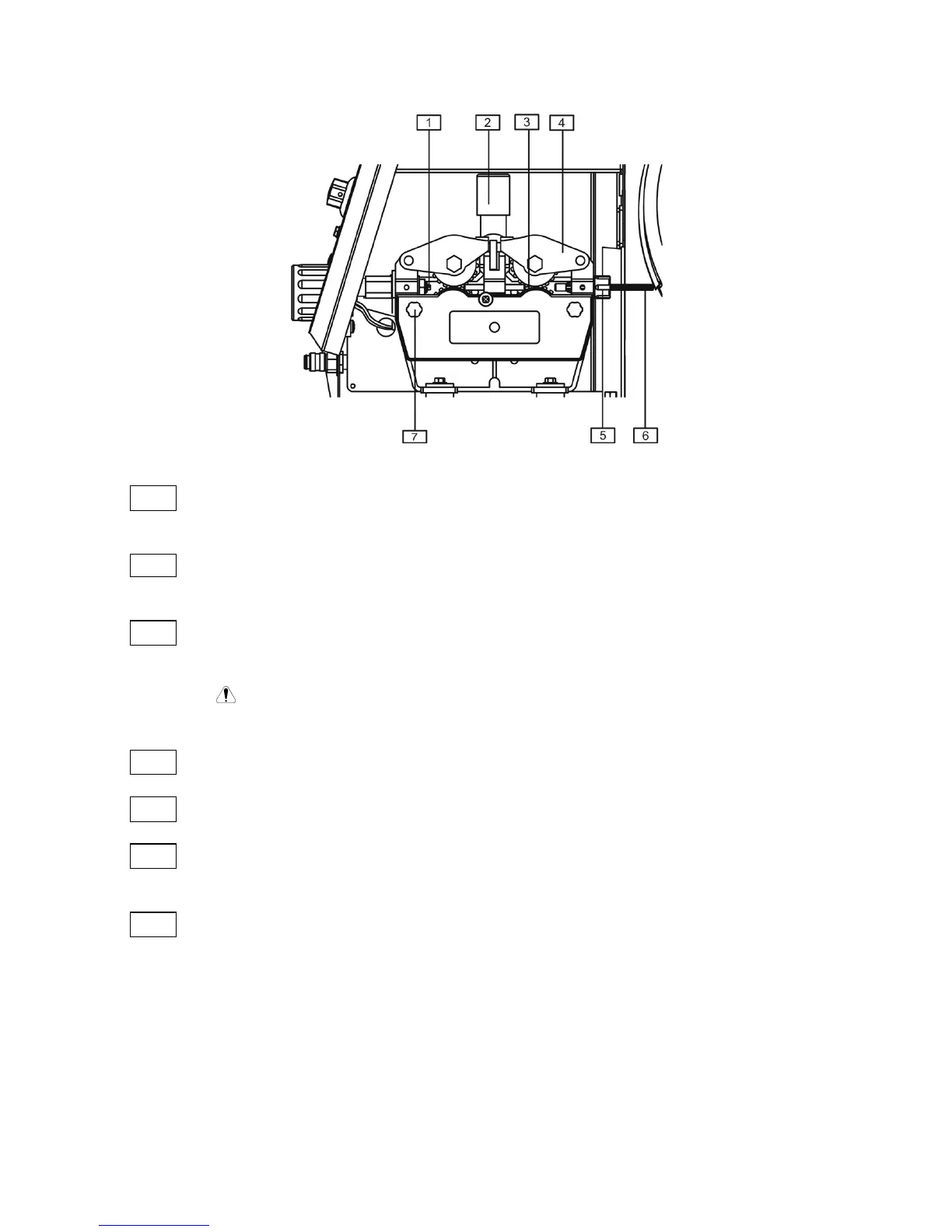

PDE 51 Wire Drive System
1
Wire Guide Tube of the Euro Socket: Inserts welding wire into the Euro
socket.
2 Roll Pressure Arm Thumbscrew: Turning clockwise increases roll
pressure; turning counterclockwise decreases roll pressure.
3
Drive Roll ø40: You should use rolls with appropriate shape and size of
the groove corresponding to the wire type and diameter (see chapter
“Accessories”).
Attention: You should use accessories delivered by the
producer.
4
Roll Pressure Arm.
5
Leading end.
6
Wire Guide Tube of the Wire Drive System: Inserts welding wire into the
wire drive system.
7
Roll Fastening Cap.
