B-4
SAFETY MARK: This equipment is suitable for supplying
power for welding operations carried out in an environment
with increased hazard of electric shock.
MOVING MECHANICAL PARTS MAY BE DANGEROUS:
Keep hands, hair, clothing and tools away from gears, fans
and all other moving parts when starting, operating or
repairing equipment.

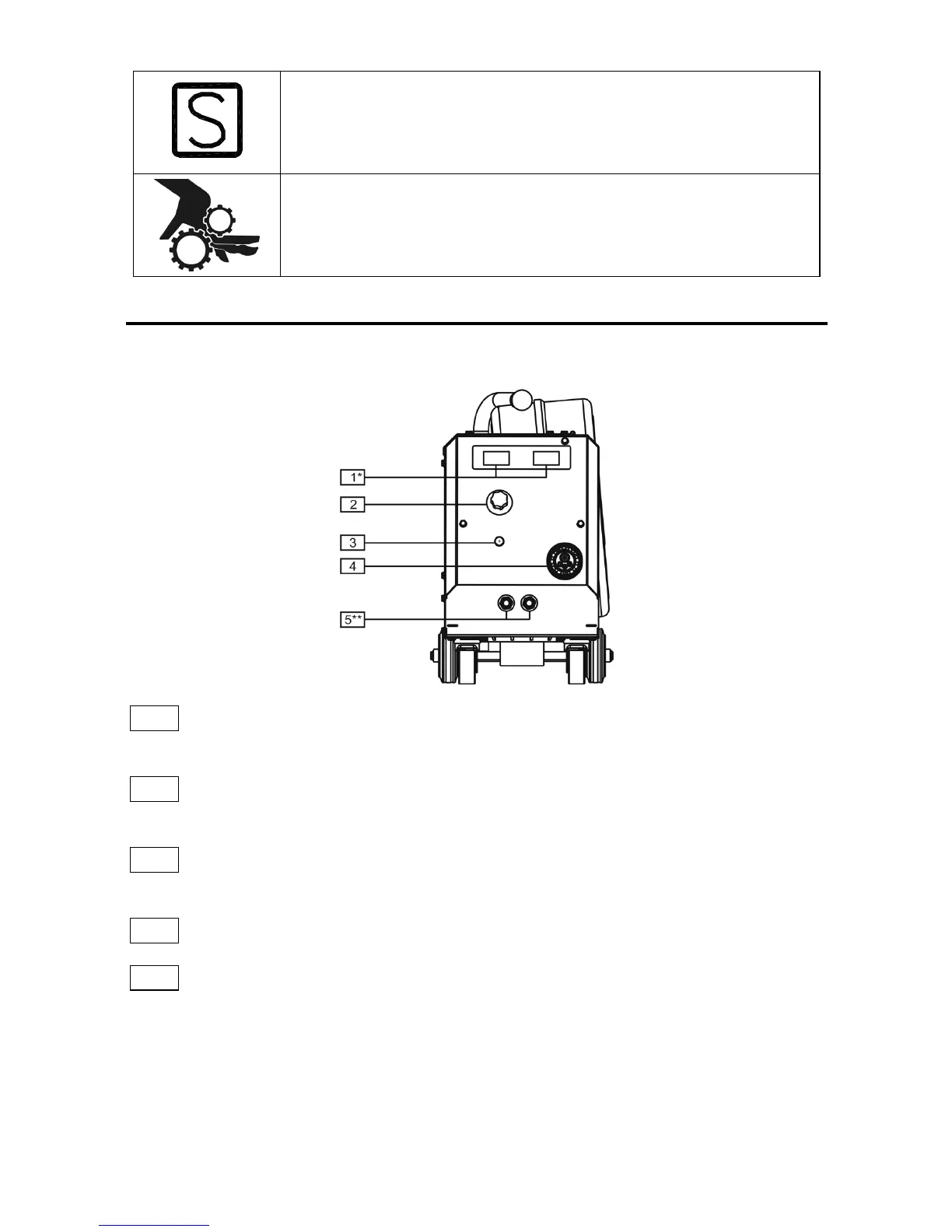

Controls
Front Panel
1*
Digital Display Panel: Displays welding parameters – welding voltage in
[V] and welding current in [A].
2
Wire Feed Speed (WFS) Knob: Enables stepless WFS control in a
range of 1,0÷20,0 [m/min].
3
Thermal Protection Indicator: The lamp indicates overheating of the
machine.
4
Euro socket: For connecting the welding gun.
5**
Quick Water Connector of the Water Cooling System: For connecting
the welding gun water cooled. Connector marked with blue colour –
cooling liquid input; connector marked with red colour – cooling liquid
output.
* Only for PDE 51; in case of the wire feeder PDE 50 there are optional accessories
(see chapter “Accessories”)
** Only for PDE 51
