B-5

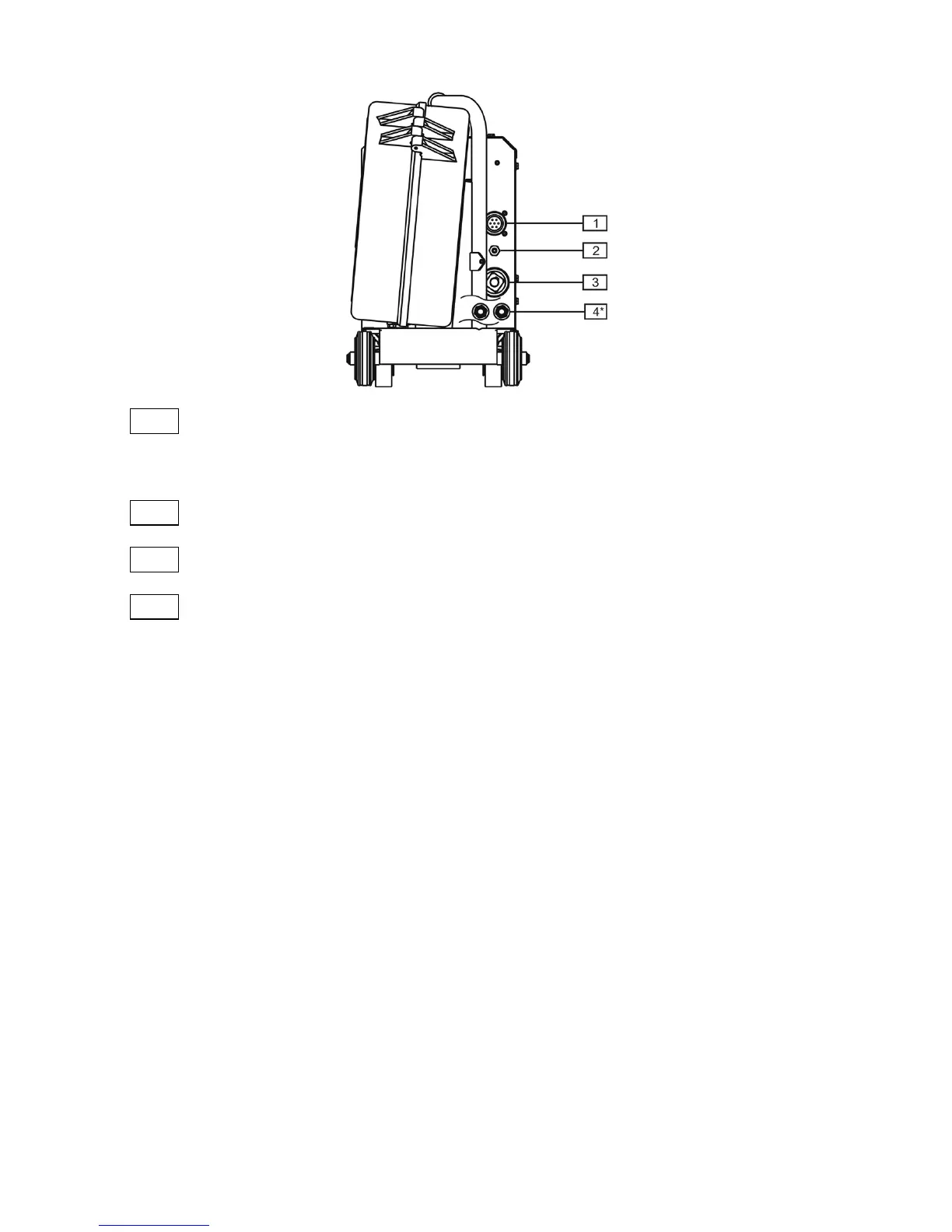

Rear Panel
1
Control Socket: 7-pin socket for connecting the control cable to control
the welding source and to supply the wire feeder from the welding
source.
2
Connector: For connecting shielding gas.
3
Power Socket: For connecting the welding cable.
4*
Quick Water Connectors of the Cooling System: For connecting hoses
of the water cooling system.
* only for PDE 51
