Twill Replace-a-top™ with Tinted Windows – Installation Instructions
Rev. C 0314 79837 pg. 5

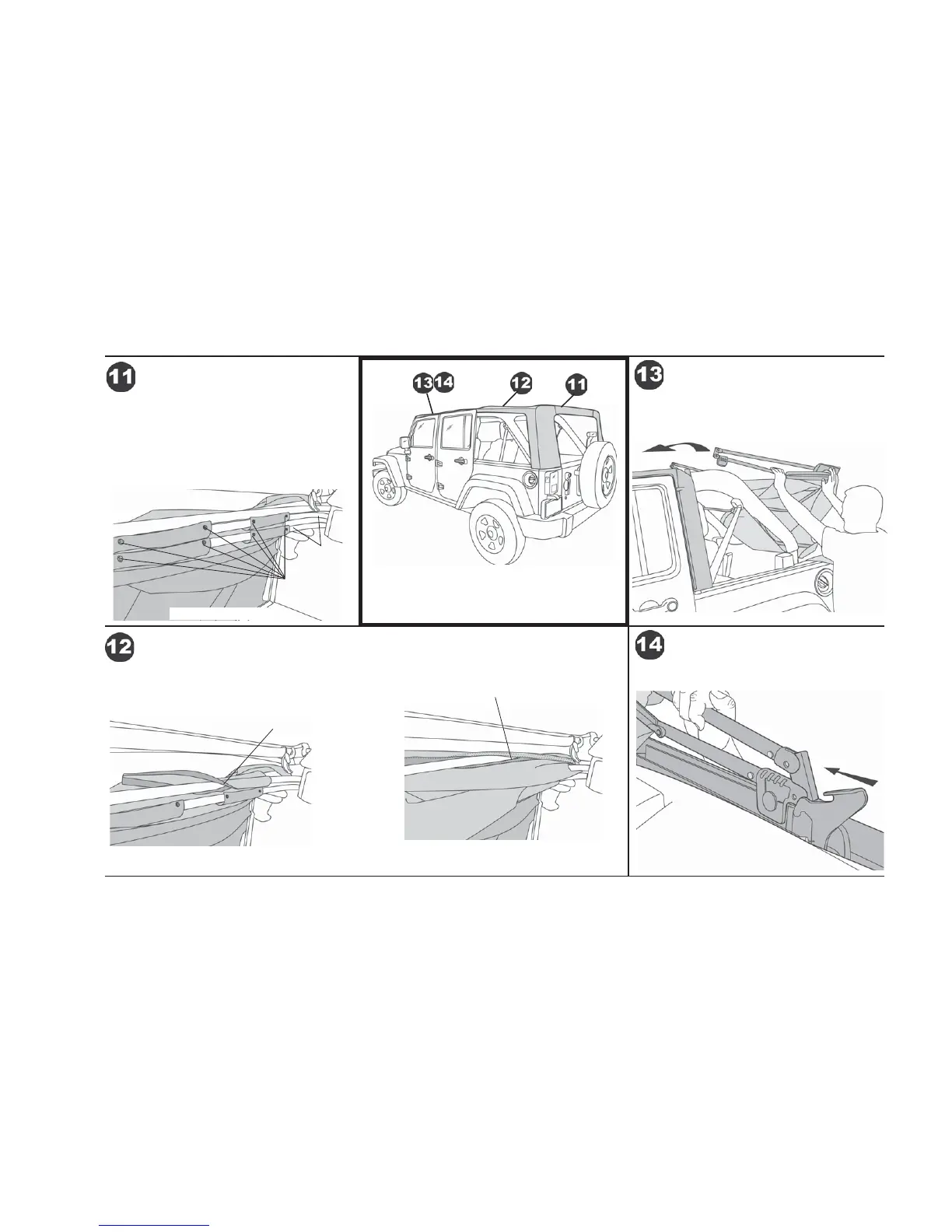

Raise the header and bow slightly to allow you to
attach the rear bow fl aps, that are inside the top
above the rear window opening, to the rear bow.
Use the screws that were removed in Step 5 to
secure the fl aps to the bow. Then secure the fl aps
to the bow in front of the rear bow.
Attach Top to Rear 2 Bows
Secure Center Bows
Rear
Bows
Screw Flaps to
Rear 2 Bows
View from inside vehicle
Wrap the hook and loop fl aps around the Bow in the
center of the top.
Wrap Flap around Bow and
Fasten Hook and Loop
Wrap Flap around Bow and
Fasten Hook and Loop
Open the Top Assembly and drape it over the cab of
the vehicle.
Slide the Pivot Assembly on the Top along the track
above the door until it latches into place.
Sport Bar
Passenger Side Shown
Install Bow Assembly
Secure Bow Assembly
To Next Page
