Machine Maintenance
LUBRICATION
It is important to lubricate all moving parts on the machine to keep it in top operating condition.
Lubricate the following areas with grease or oil (as indicated) every two months.
LUBRICATE THE FOLLOWING:

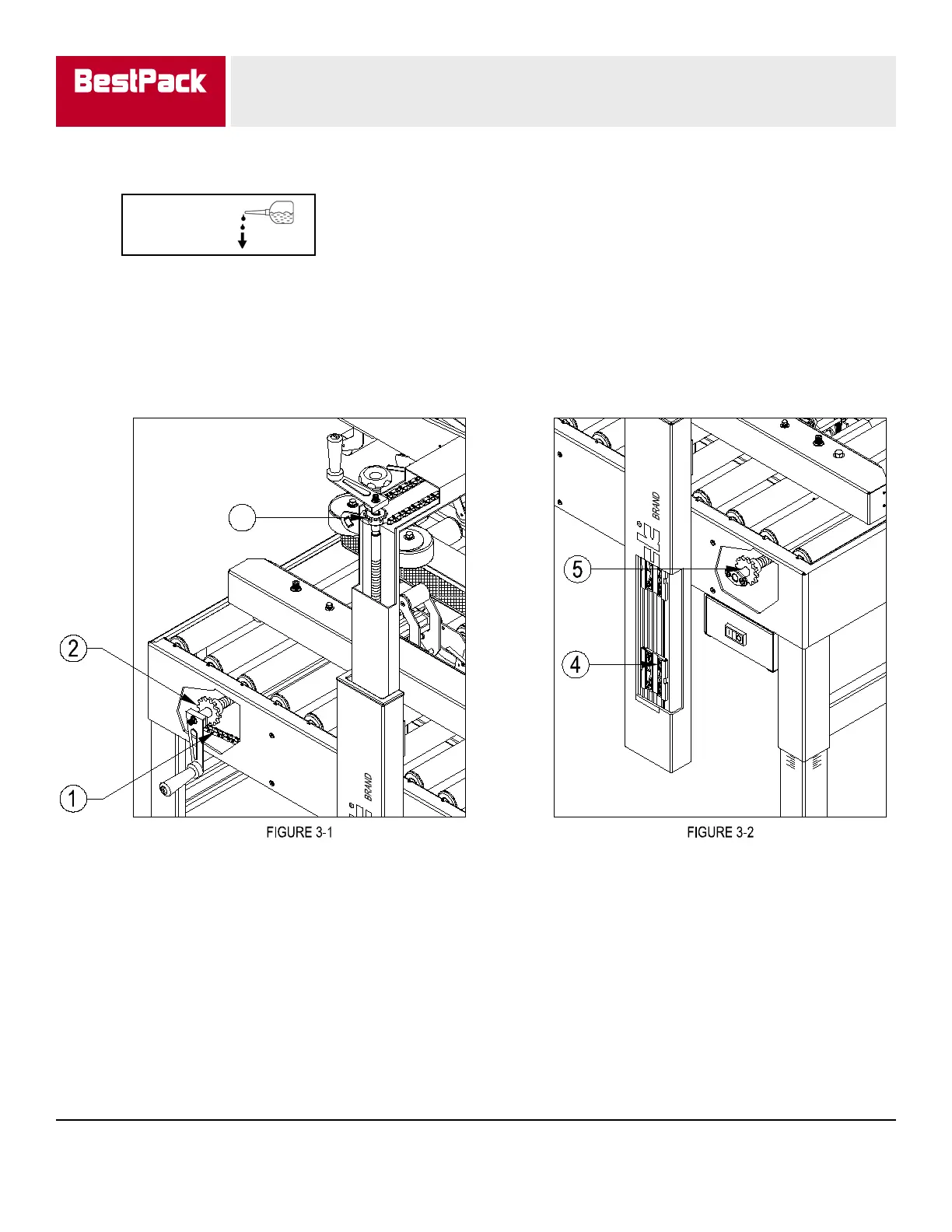

1. Chain drive mechanism for width adjustment. GREASE [Fig 3-2]
2. Spindle screw mechanism for width adjustment. GREASE [Fig 3-2]
3. Chain drive mechanism for height adjustment. GREASE [Fig 3-1]
4. Spindle screw mechanism for height adjustment. GREASE [Fig 3-1]
5. Sprocket for spindle screw mechanism for width adjustment. OIL [Fig 3-2]
GREASE
POINTS
INDICATED GREASE POINTS
