27

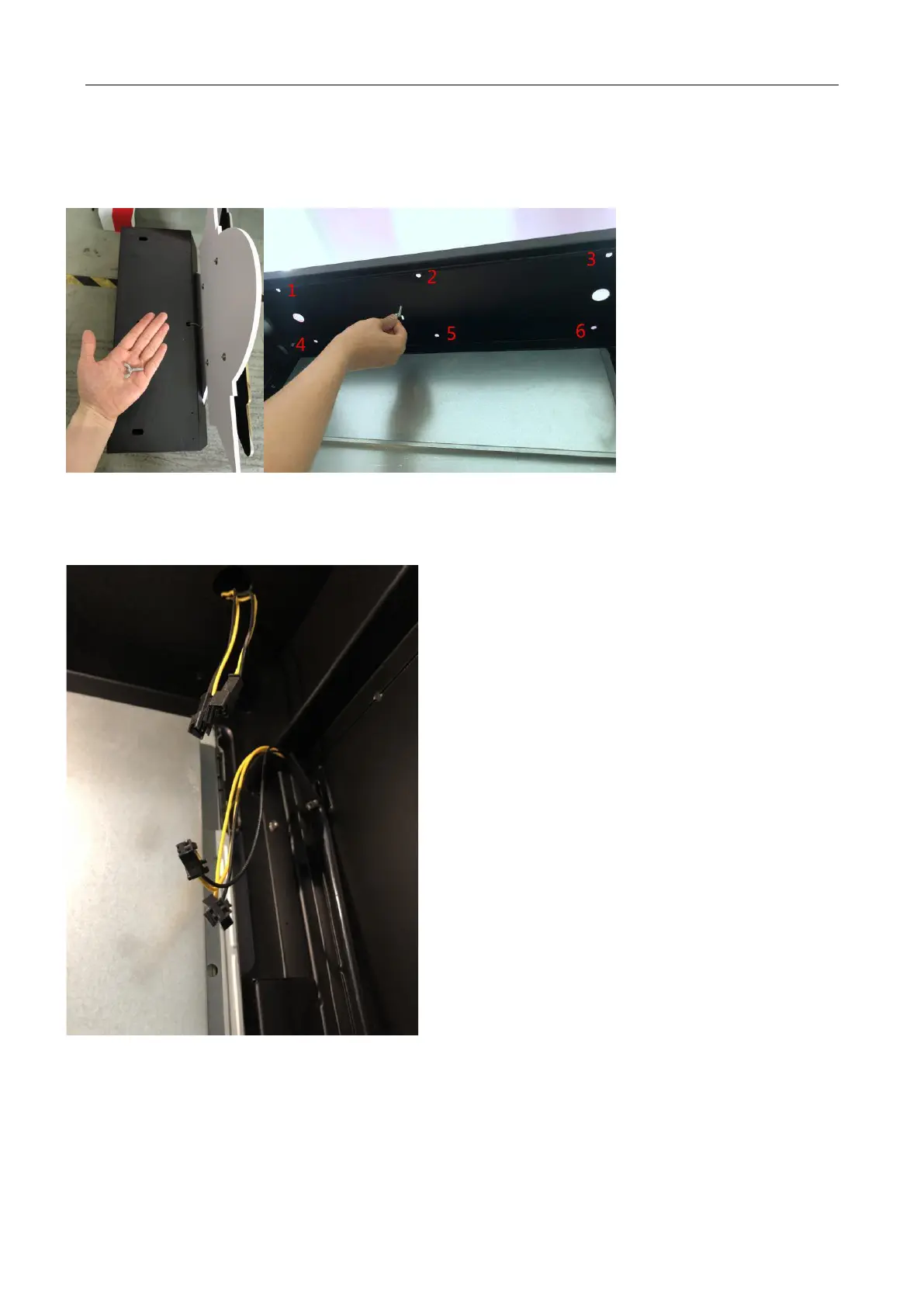

IV. Assembly and wire connection plan
1-Top light box
- 6x screw type 1 needed
-Wire connection: 2x 12V led cable
