BETTERI BC01 - Final Assembly and Tightening

BC01
Instruction Book Of BC01 cable to cable
9

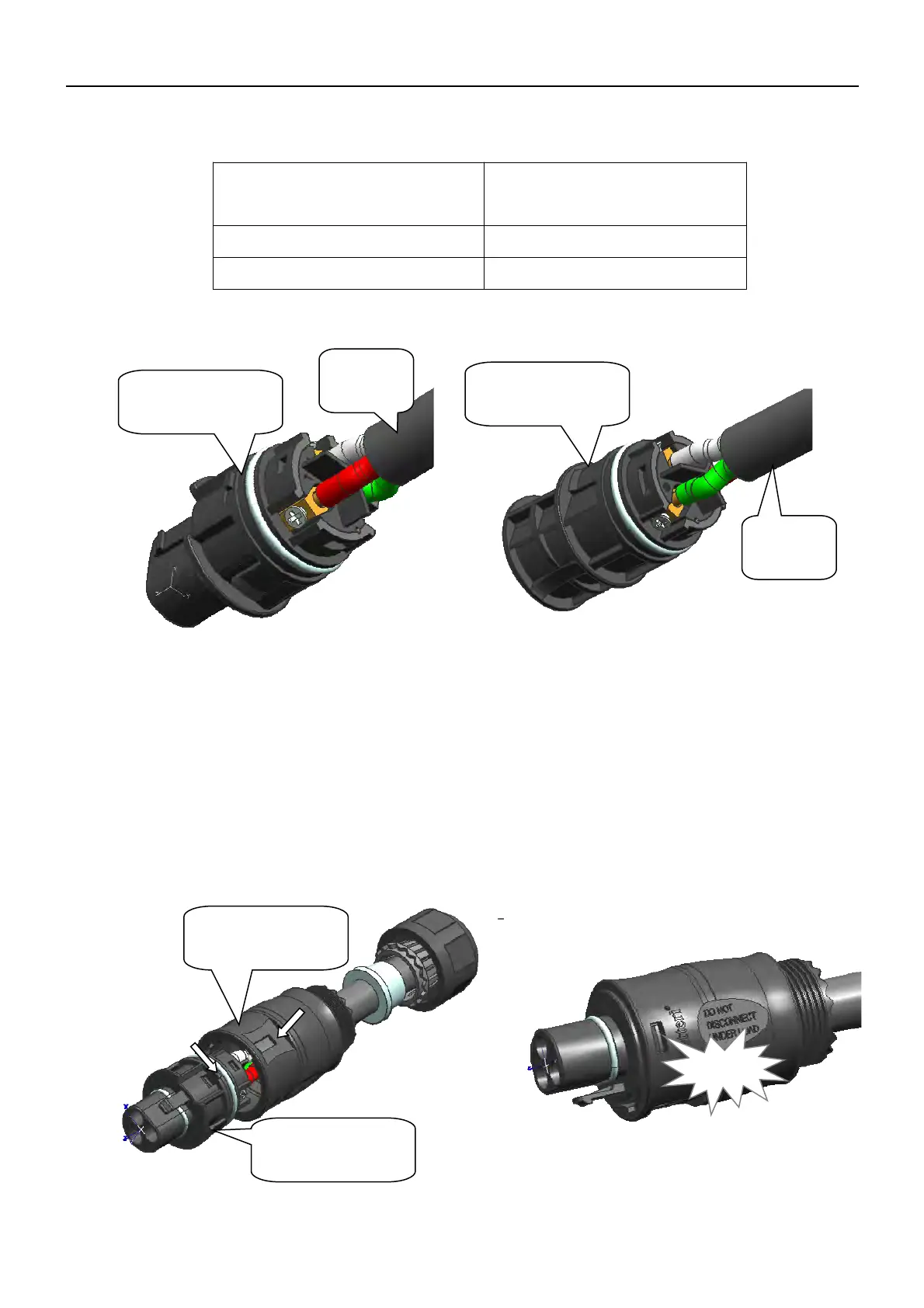

6.3.3. Install male & female cable body to plastic housing
Push the male or female cable body into housing body correctly according to the position of the
clamping groove , and will hear a crisp “click” sound in place.
Conductor cross-section area (mm2)
Required tensile strength (N)
2.5
＞
50
4.0
＞
60
click
Male cable body
Housing body
Male cable body
Cable
Cable
Female cab
le b
o
d
y
