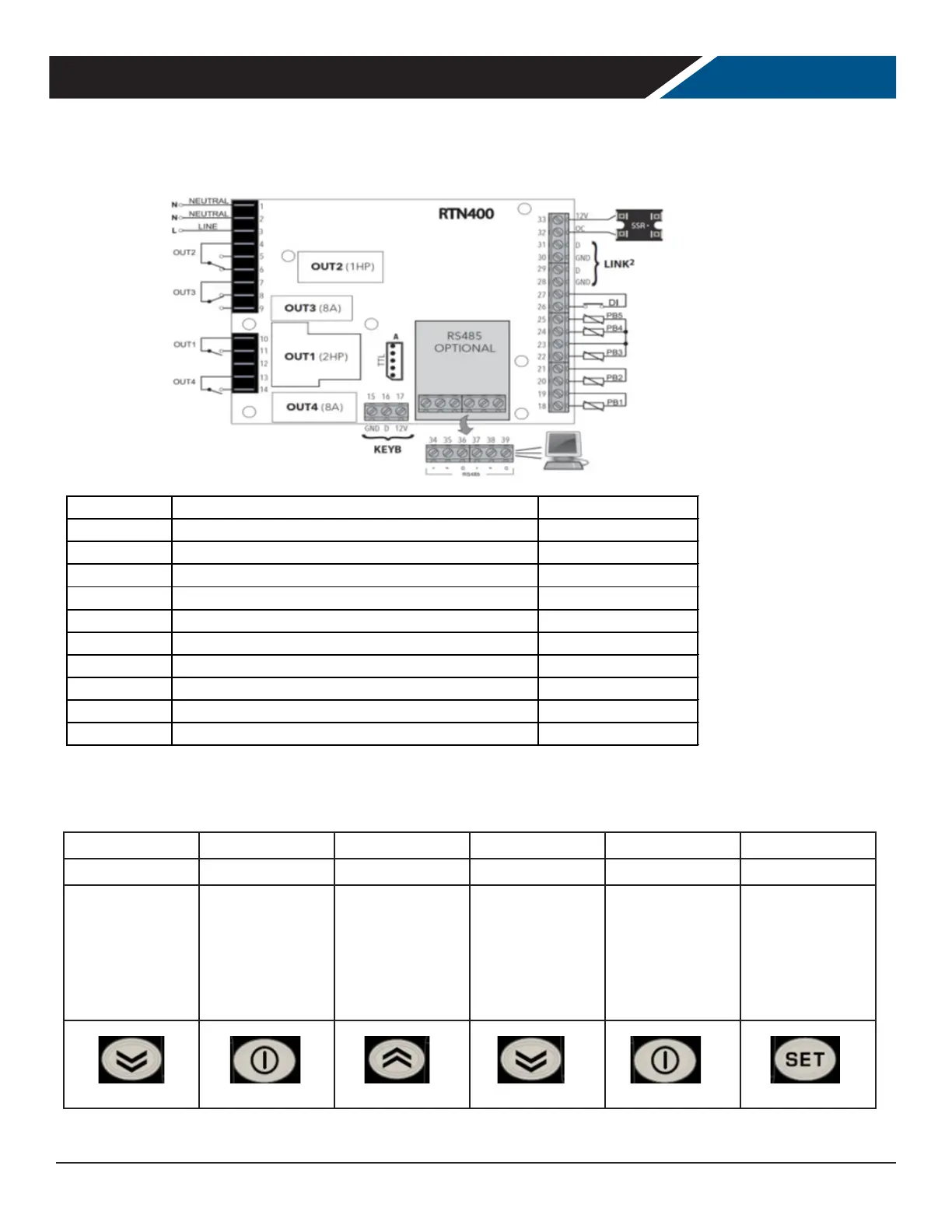

Relay/Probe Description Terminal
Out 1
Compressor 10,11
Out 2
Evaporator Fan 4, 5
Out 3
Defrost Element 7, 9
Out 4
Light (or alarm relay if electronic Lock model) 13, 14
PB1 –
Air/control probe 18, 19
PB2
Evaporator/defrost probe 20, 21
PB3
Condenser probe 22, 23
PB4&5
not used
DI
digital input/Door switch 26, 27
KEYB
Display connection 15, 16, 17
LIGHT STANDBY UP DOWN ESC SET (Enter)
Press and Hold Press and Hold Press and Release Press and Release Press and Release Press and Release
Long press (>5
sec) Toggles light
on and o.
Places unit in
Standby Mode. If
LED is on. Device
is o.
Scrolls the menu
items Increases
the values. Long
press (>5 sec)
starts manual
defrost
Scrolls the menu
items Decreases
the values. Long
press (> 5 sec)
Starts deep
cooling cycle
Returns up one
level with respect
to the current
menu. Conrms
the parameter
value
Accesses
the machine
status menu
and displays
any alarms (if
present)
