12 PD30EM & PD40EM Installation and User manual
ENG

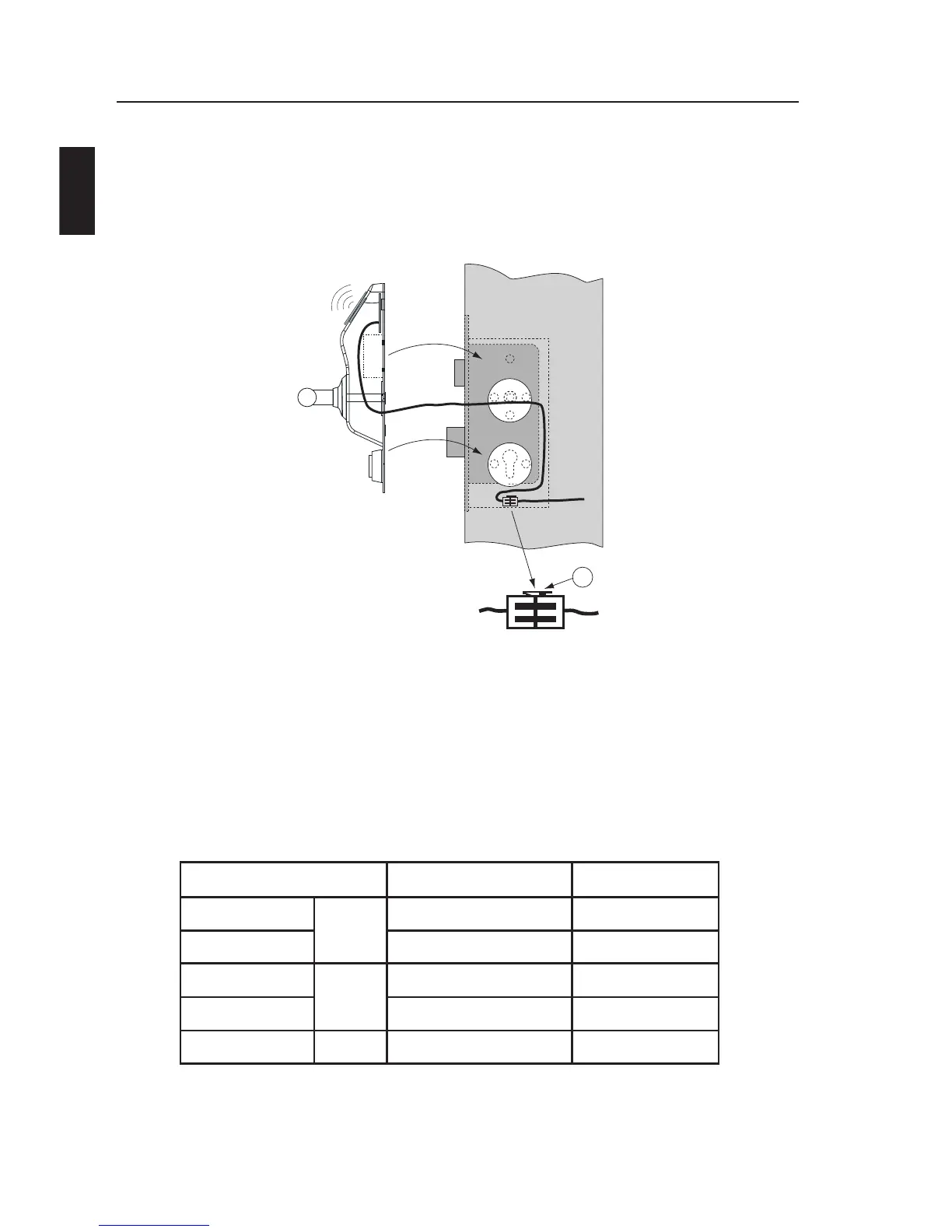

Disassemble the lockcase from the door and eventually cutout
enough space for the cable entry beside the lockcase. Also be sure
there is space to finally feed the cable connector (and some
remaining cable) beneath the lockcase. See figure .
Figure
Install the cable from the lockcase to the door loop and further to
the place for the dropbox. You may have to drill a hole through the
door between the lockcase and the door loop.
Mount the dropbox somewhere above the door, less than 5 metres
from the lockcase and connect the 4-wire cable according to the
following table.
Signal Colour on cable Drop box (PL2)
V+
Pair 1
Red 1
0V Black 2
Com B
Pair 2
White 3
Com A Green 4
Screen
-
5
4.
5.
6.
