PD30EM & PD40EM Installation and User manual 7
ENG

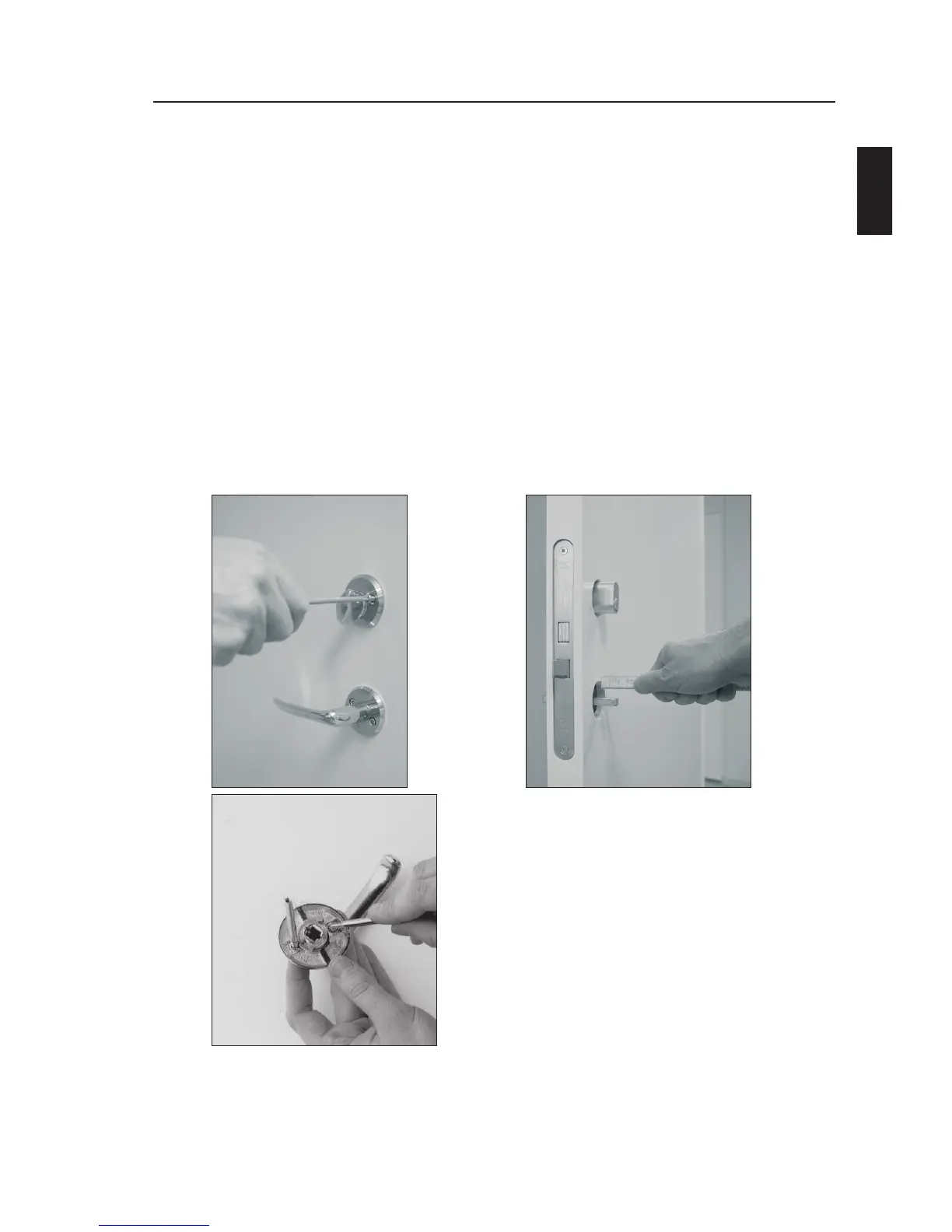

PD30EM installation
Remove the cylinder ring and the door handle from the door by
loosening the four screws. See photo .
The lever handle spindle should project no more than 20 mm on the
outside of the door. If the spindle is too long, push it through into
the handle on the inside. If this cannot be done, cut the spindle to
the right length. See photo .
Screw the supplied extension sleeves to the nipples for the handle.
Use the appropriate size sleeve to suite the bolts supplied with the
handles. Note! If neccessary, this must be mounted on the opposite
side of ProxCodoor (inside) See photo .
1.
2.
3.
