Beyerdynamic M 160 - Technical Specifications; Frequency Response & Polar Pattern; Wiring Diagram

M 160 — Dynamic Double-Ribbon Microphone 4
EN
TECHNICAL SPECIFICATIONS
Transducer type ................................Dynamic
Operating principle ...................Pressure gradient
Frequency response ........................40 - 18,000 Hz
Polar pattern ..............................Hypercardioid
Rear attenuation at 1 kHz ...................> 25 dB at 110°
Sensitivity (0 dB = 1 V/Pa) ............ 1.0 mV/Pa (= -60 dBV)
Nominal impedance .............................. 200 
Load impedance ................................≥ 1000 
Diaphragm .............................. Pure aluminium
Case/finish .........................................Brass
Connector ..............................XLR, 3-pin, male
Dimensions:
Length ..........................................165 mm
Sha diameter ..................................23 mm
Head diameter ..................................38 mm
Weight ..............................................192 g

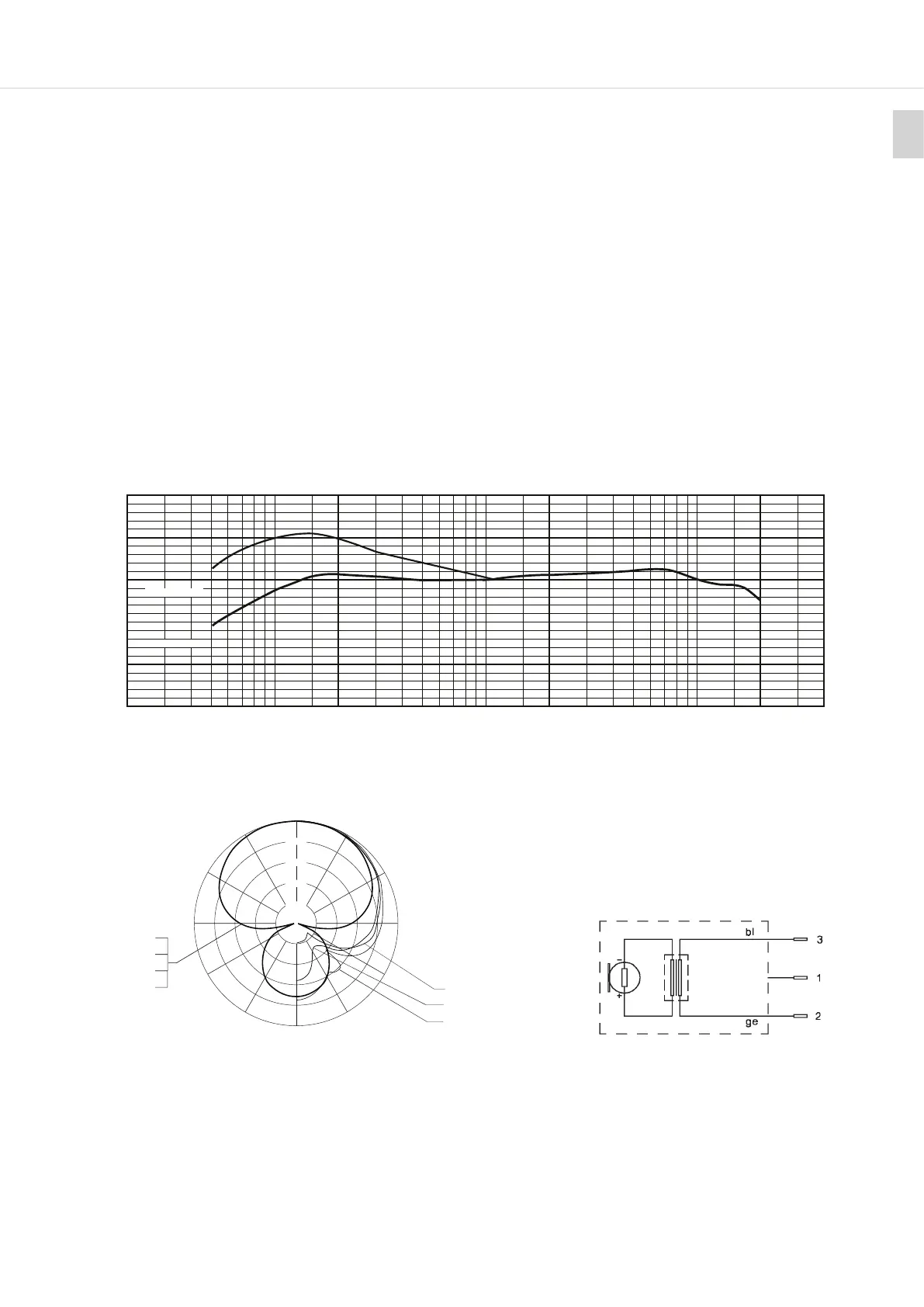

FREQUENCY RESPONSE & POLAR PATTERN
This polar pattern and frequency response curve correspond to a typical production sample for this microphone.
Frequency response curve ± 2.5 dB M 160 0 dB = 1.0 mV/Pa
+20
+10
0 dB
-10
-20
-30
20 200 2k 20k100 1k 10k50 500 5k Hz
Sollfrequenzkurve ±2, 5dB
0 dB = 1, 0mV/Pa
M 16 0
-----
--
10cm Abstand
1m Abstand
+
+
125 Hz
250 Hz
500 Hz
1000 Hz
8000 Hz
300°
270°
210°
240°
180°
150°
120°
90°
60°
30°
0°
330°
-5dB
-10dB
-15dB
-20dB
2000 Hz
4000 Hz
WIRING DIAGRAM
+20
+10
0 dB
-10
-20
-30
20 200 2k 20k100 1k 10k50 500 5k Hz
Sollfrequenzkurve ±2, 5dB
0 dB = 1, 0mV/Pa
M 16 0
-----
--
10cm Abstand
1m Abstand
+
+
125 Hz
250 Hz
500 Hz
1000 Hz
8000 Hz
300°
270°
210°
240°
180°
150°
120°
90°
60°
30°
0°
330°
-5dB
-10dB
-15dB
-20dB
2000 Hz
4000 Hz
Diance 10 cm
Diance 1 m
