Orbis – Quick Start Guide
16

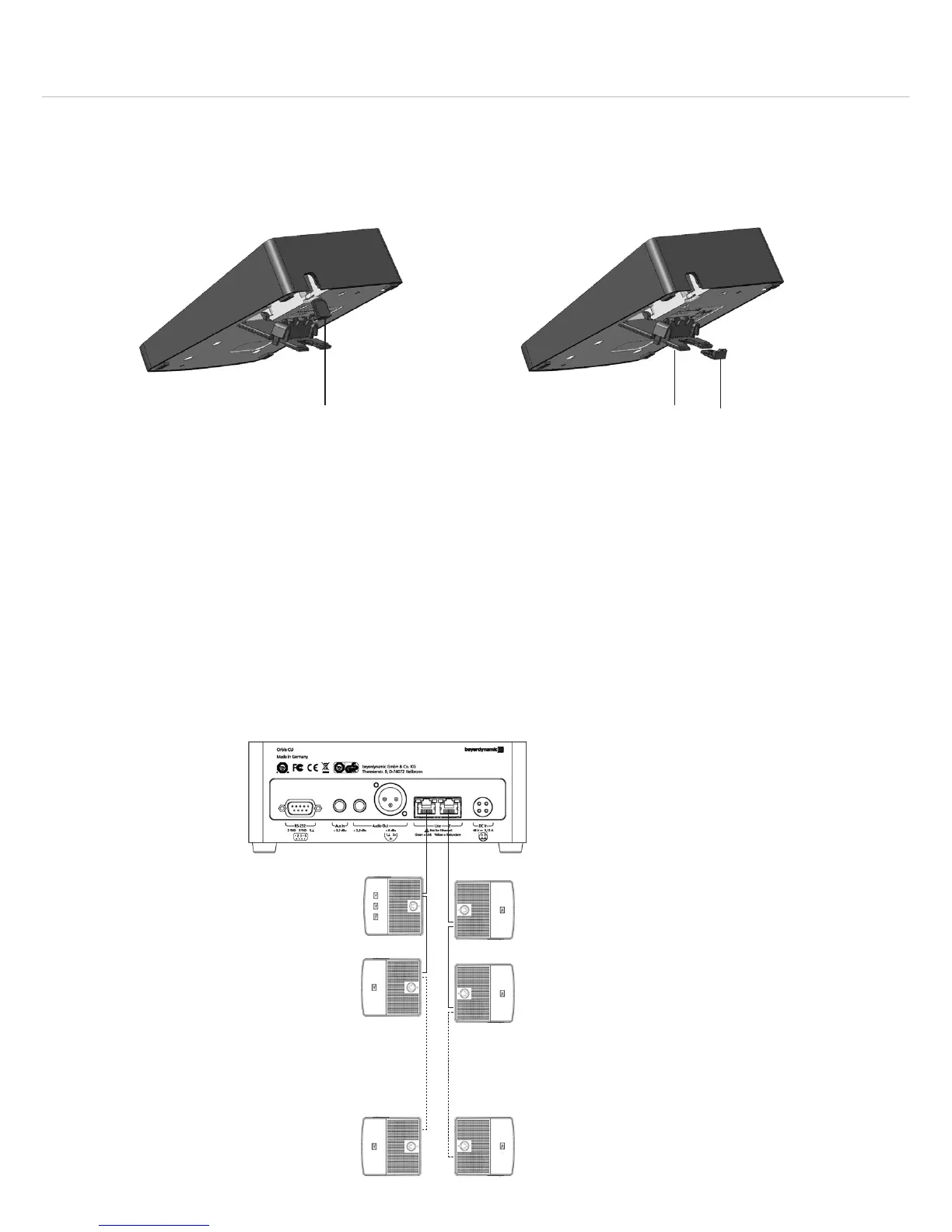

Connection of microphone units without redundancy
• The microphone units/system units are connected in one or two lines to the control unit. As cables
use standard CAT5e cables (S/UTP, min. AWG 26 diameter or better). The audio transmission,
power supply and control is made via one cable.
• At maximum you can connect 50 microphone units/system units per line so that a total of 100
microphone units is available.
Note: The max. number of microphone units also depends upon the cable type and cable length so
that the actual number of microphone units to be operated might be less than 50 or 100.
CAUTION: When using this kind of connection, there is no redundancy, i.e. if one microphone
unit/system unit fails, the whole line fails after the interruption, but the microphone units/system
units will still work before the interruption.
max. 50 microphone units in line 1 max. 50 microphone units in line 2
Orbis CU Control Unit
Cable outlet downwards
• If the connecting cables of the Orbis MU 23/21
microphone unit are to be routed downwards,
insert the sliding element into the back of
the microphone unit.
Cable outlet backwards
• If the connecting cables of the Orbis MU 23/21
microphone unit are to be routed backwards,
insert the sliding element into the cable
cover .
