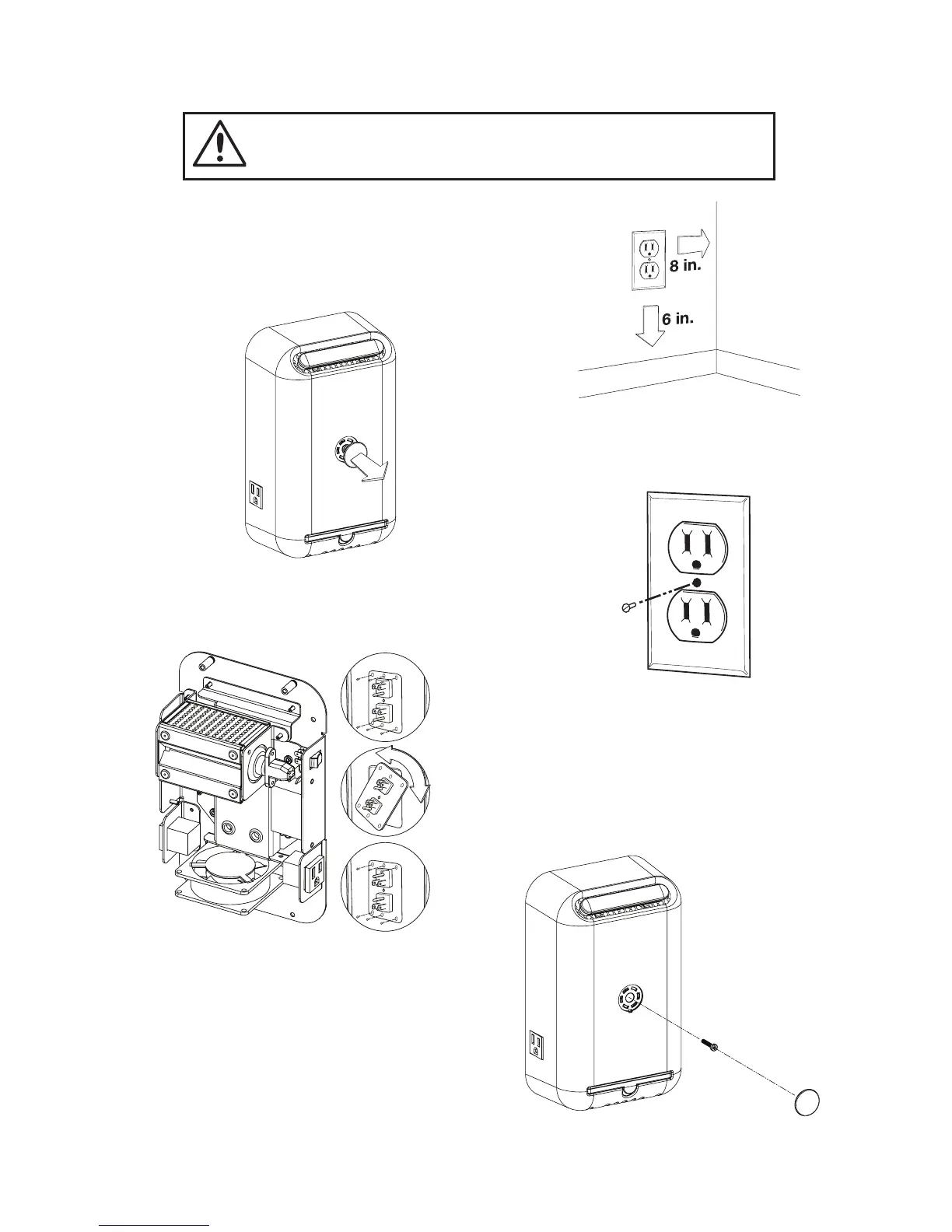

2. Remove the center cap of the AP 500 by inserting a small
blade under the cap edge and lift up.
3. Remove the screw from
outlet faceplate (Leave
faceplate on outlet.).
5. Insert AP 500 into outlet and secure from the front
through the attachment hole with screw provided.
CAUTION: Disconnect power at the breaker or fuse panel before
installing unit. AP 500 Power switch should be in the Off position.
1. Locate a grounded outlet with proper clearances. It is not
recommended to use a GFCI (Ground Fault Circuit
Interrupter) equipped outlet.
INSTALLATION
5
4. The plug on
the back of
the AP 500 can
rotate 90º or
180º to fit your
outlet.
