2x1,5mm
2
2x1,5mm
2
3x1,5mm
2
3x1mm
2
2x0,75 mm
2
3x1,5mm
2
2x1,5mm
2
3x1,5mm
2
5x0,75mm
2
2x0,75mm
2
825
FABER BT KIT
943
FABER L BT KIT
72,5 mm
FABER BT KIT
108 mm
FABER L BT KIT
55
102
80
Cu MAX 305 mm FABER BT KIT
Cu MAX 470 mm FABER L BT KIT
R
Q
RG58

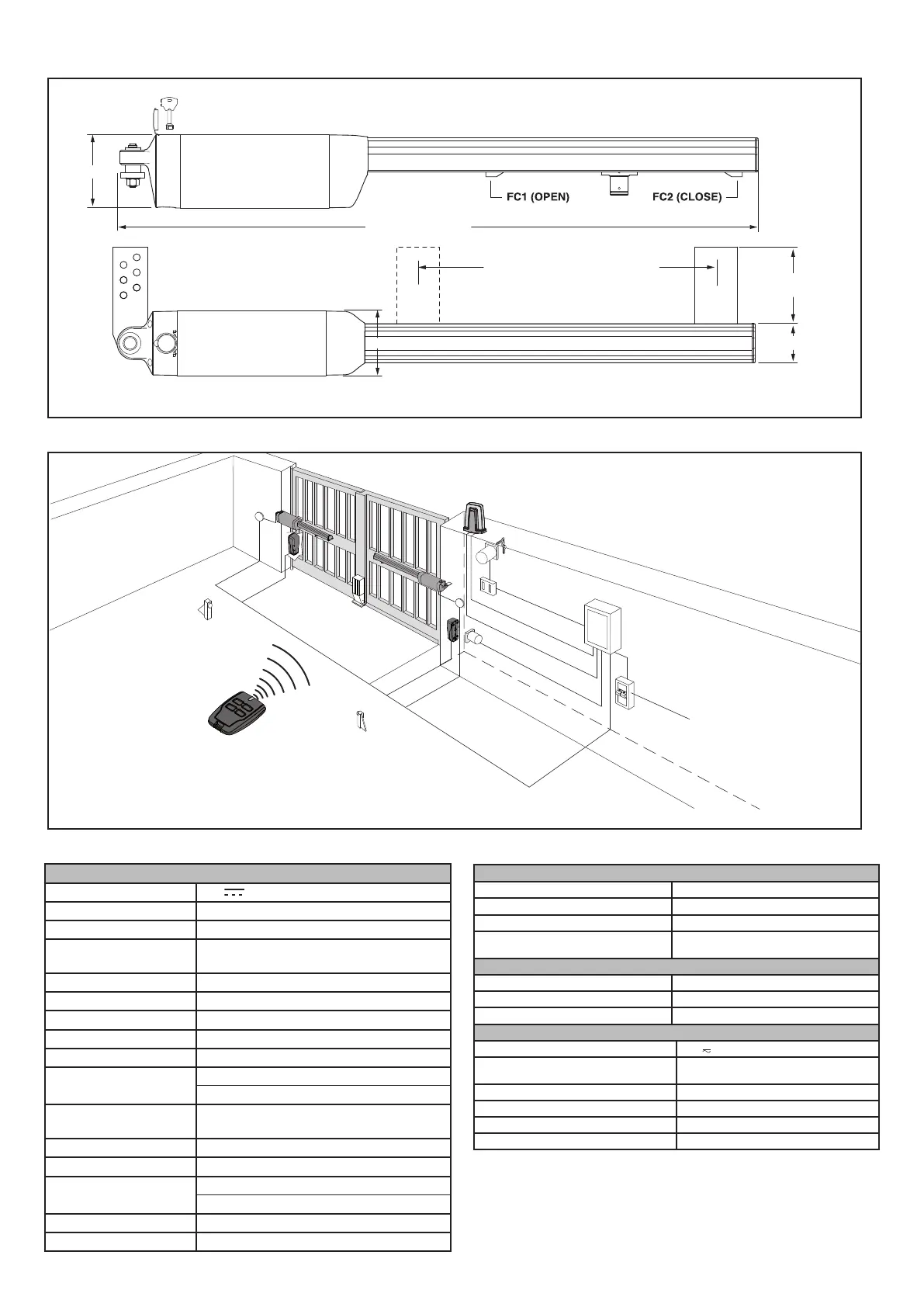

DIMENSIONS
INSTALLATION DIAGRAM
STOPS
STOPS
TECHNICAL SPECIFICATIONS
MOTOR
Power supply 24V
Max� power input 40 W
Current demand 1�5 A
Operating and pulling
force
2000 N (~200 kg)
Impact reaction Torque limiter built into control panel
Limit switches Magnetic, built-in and adjustable
Manual operation CLS release key
Ambient temperature range
- 20°C to +50°C
Type of use Semi-intensive
Maximum leaf length wi-
thout solenoid latch
1�8 m FABER BT
3 m FABER L BT
Maximum leaf length with
solenoid latch
5 m FABER L BT
Maximum leaf weight 2500 N (~250 kg)
Protection rating IP X4
Actuator weight
50N (~5kg) FABER BT
77N (~7�7kg) FABER L BT
Dimensions See g� L
Lubrication lifetime greased
CONTROL UNIT
Auxiliary power supply 24V ~ (180 mA)
Fuses See Fig� WIRING DIAGRAM
Built-in Rolling-Code radio-receiver frequency 433�92MHz
Max No� of transmitters that can be
memorized
63
REMOTE CONTROL
Frequency 433�92MHz
Battery 23A 12V model
Range 50 / 100 m
PHOTOCELLS
Supply voltage 24V
Current demand
TX: 10mA
RX: standby 7mA / max 20mA
Contact capacity 30V, 1A
Protection rating IP55
Operating temperature -20/+55°C
Operating range
30 m (less in case of fog/rain)
Not provided�
*
*
**
*
**Solenoid latch: for lengths exceeding 3 metres (not supplied)�
FABER BT - FABER L BT KIT - 35
D812458 10550_01
