BFT FABER BT - Page 52

1 2 3 4
ON
5 6 7 8 9 10
Y #
S4
S1
S2
S3
RADIO
EER
SET
1 2 3 4
ON
5 6 7 8 9 10
1 2 3 4
ON
5 6 7 8 9 10
T4
T4
1 2

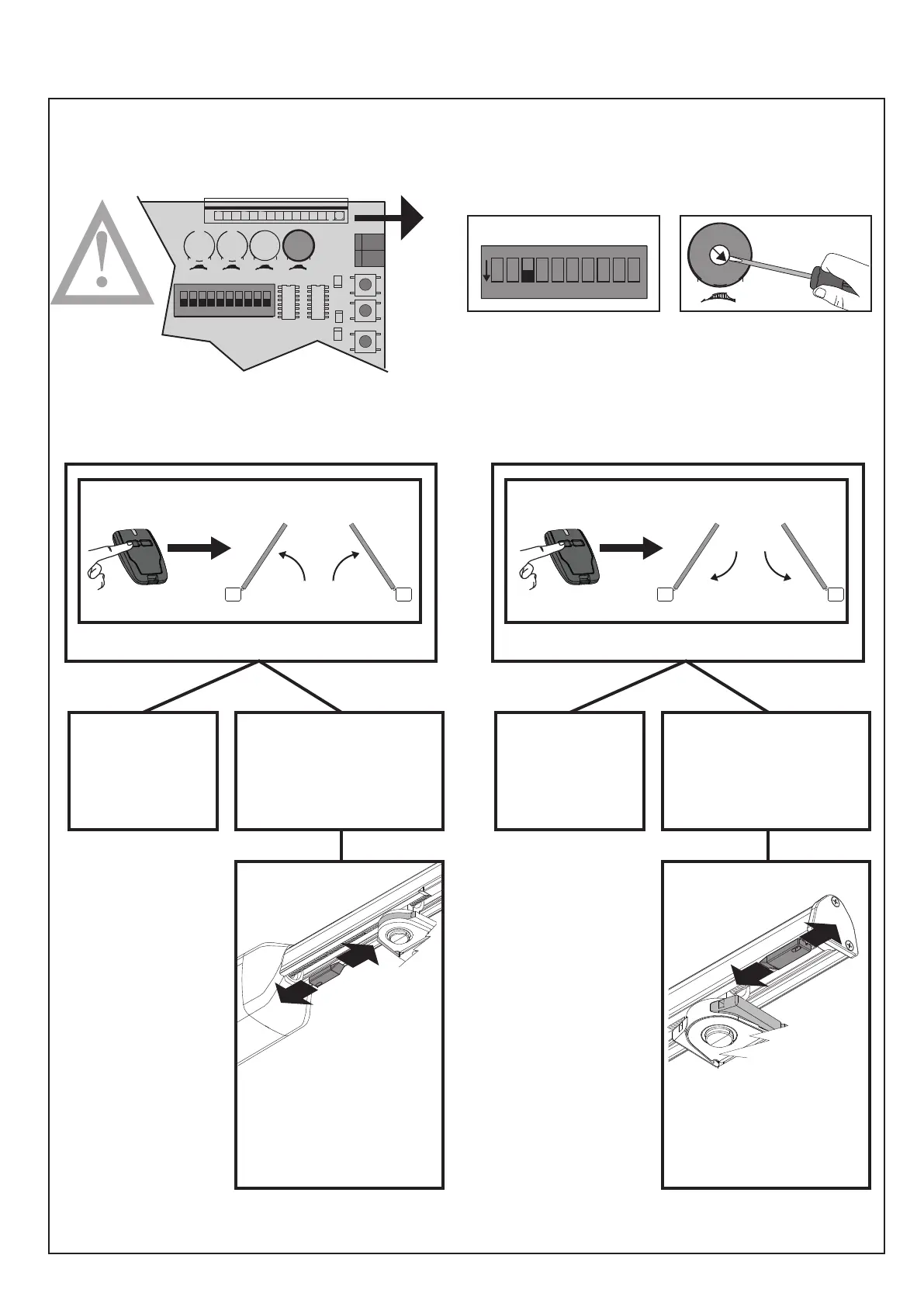

OPENING: CLOSING:
+ OPEN
- CLOSED
- OPEN
+ CLOSED
Press START from the remote control: the gate OPENS� Press START from the remote control: the gate CLOSES�
OPENING IS
AS
DESIRED:
OK!
OPENING IS
AS
DESIRED:
NO:
CLOSING IS
AS
DESIRED:
NO:
CLOSING IS
AS
DESIRED:
OK!
LIMIT SWITCH ADJUSTMENT COMPLETION
Move the limit switch (FC1) to get
the desired opening�
Move the limit switch (FC2) to get
the desired closing�
52 - FABER BT - FABER L BT KIT
