- 13 -
ENGLISH
For the value “A” see
TAB.1 page 37
A
45°
Check that the bar is balanced
at approximately 45° position.
If necessary, adjust again the
distance "A".
Bring the bar to verti-
cal position

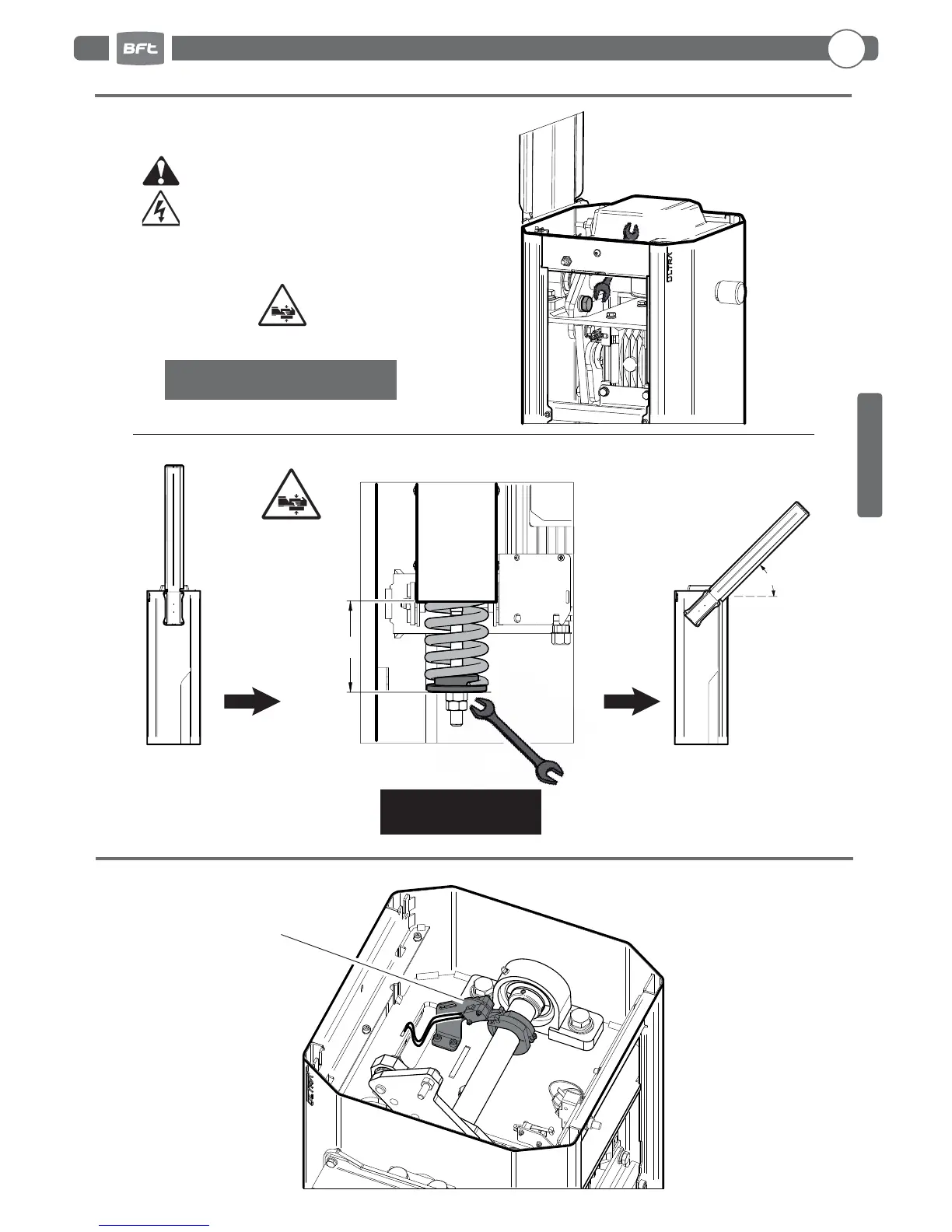

2.6 BAR BALANCING
24 mm
22 mm
DO IT ONLY WITH THE BAR MOUNTED
AND POSITIONED VERTICALLY
Remove the screw which secures the lever
Before performing any task
on the equipment, cut o
the power supply.
2.7 OPTIONAL ITEMS
ADDITIONAL
LIMIT SWITCHES
2. Installation
EN
