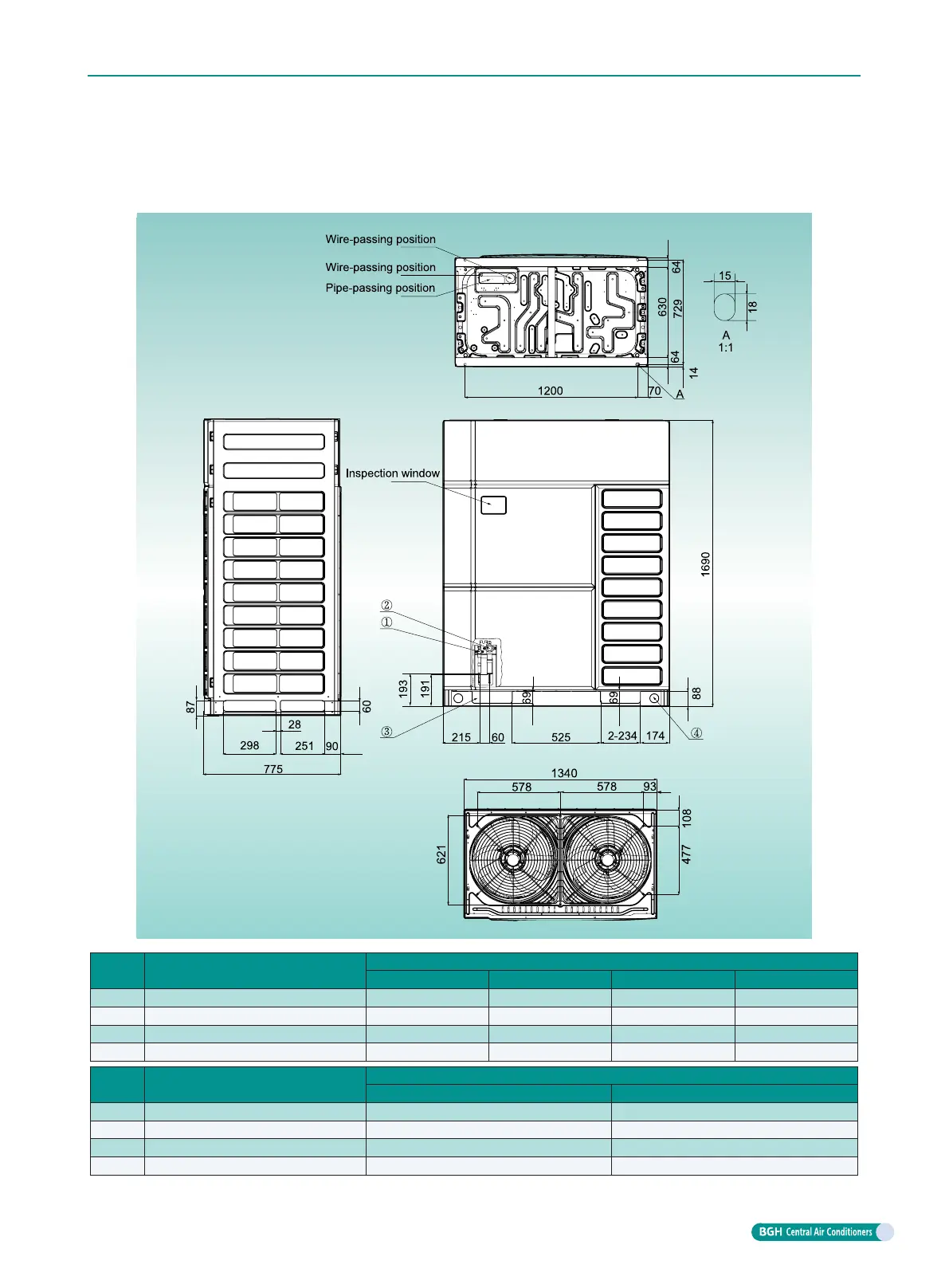

Outline size and installation hole size of GMV-400WM/G-X, GMV-450WM/G-X, GMV-504WM/G-X,
GMV-560WM/G-X, GMV-615WM/G-X and GMV-680WM/G-X
No. Name
Pipe diameter
GMV-400WM/G-X GMV-450WM/G-X GMV-504WM/G-X GMV-560WM/G-X
①
Liquid pipe stop valve
Φ
12.7
Φ
12.7
Φ
15.9
Φ
15.9
②
Suction gas pipe stop valve
Φ
25.4
Φ
28.6
Φ
28.6
Φ
28.6
③
Pipe and wiring crossing hole(L×W) 234×69 234×69 234×69 234×69
④
Hoist hole
Φ
50
Φ
50
Φ
50
Φ
50
No. Name
Pipe diameter
GMV-615WM/G-X GMV-680WM/G-X
①
Liquid pipe stop valve
Φ
15.9
Φ
15.9
②
Suction gas pipe stop valve
Φ
28.6
Φ
28.6
③
Pipe and wiring crossing hole(L×W) 234×69 234×69
④
Hoist hole
Φ
50
Φ
50
