UNIT INSTALLATION SPACE REQUIREMENTS
7.1Outline size and installation hole size
Unit : mm

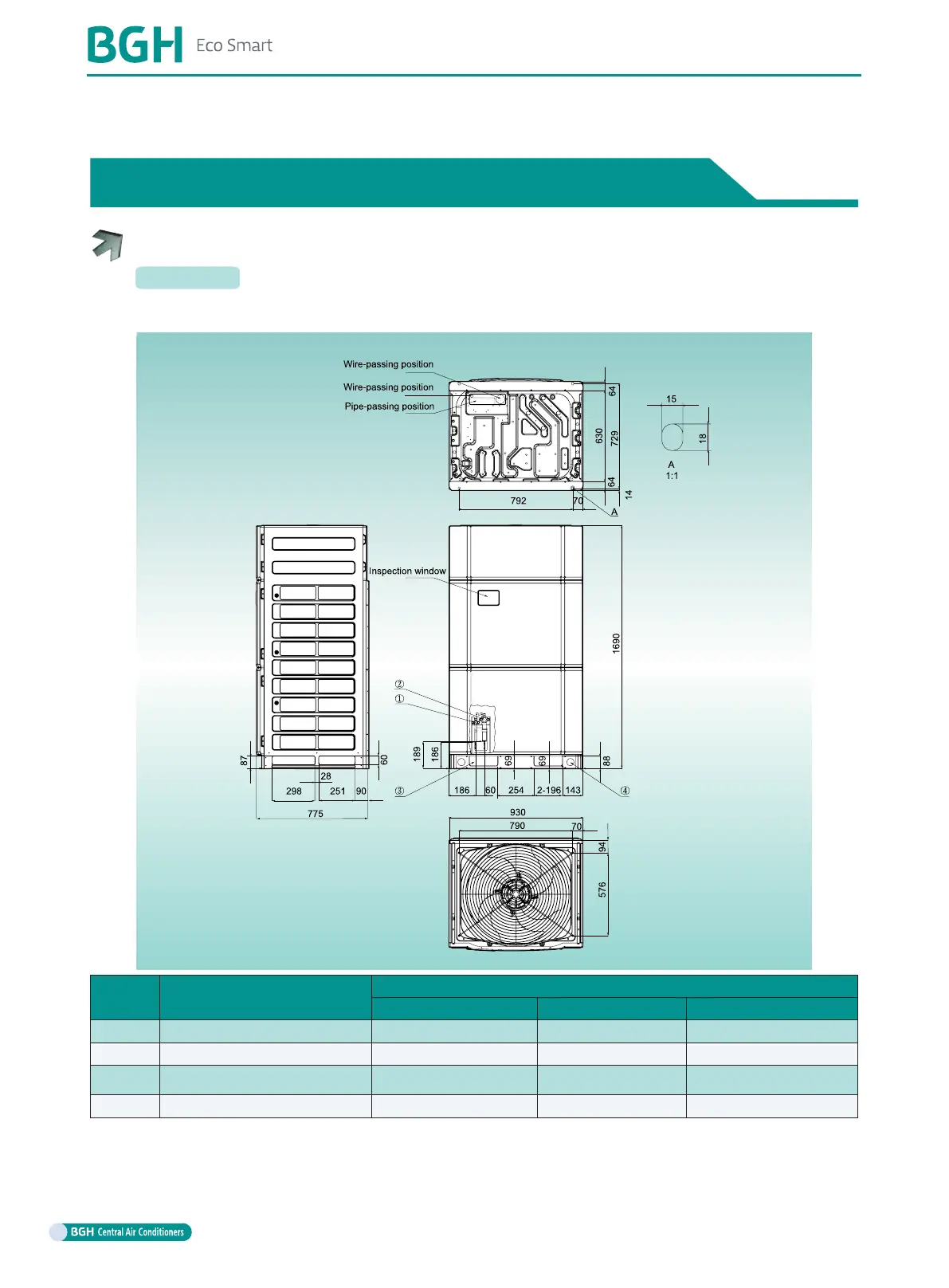

Outline size and installation hole size of GMV-224WM/G-X, GMV-280WM/G-X and GMV-335WM/G-X
No. Name
Pipe diameter
GMV-224WM/G-X GMV-280WM/G-X GMV-335WM/G-X
①
Liquid pipe stop valve
Φ
9.52
Φ
9.52
Φ
12.7
②
Suction gas pipe stop valve
Φ
19.05
Φ
22.2
Φ
25.4
③
Pipe and wiring crossing hole
(L×W)
196×69 196×69 196×69
④
Hoist hole
Φ
50
Φ
50
Φ
50
112
