7.3 Installation space requirement of ODU
Unit : mm

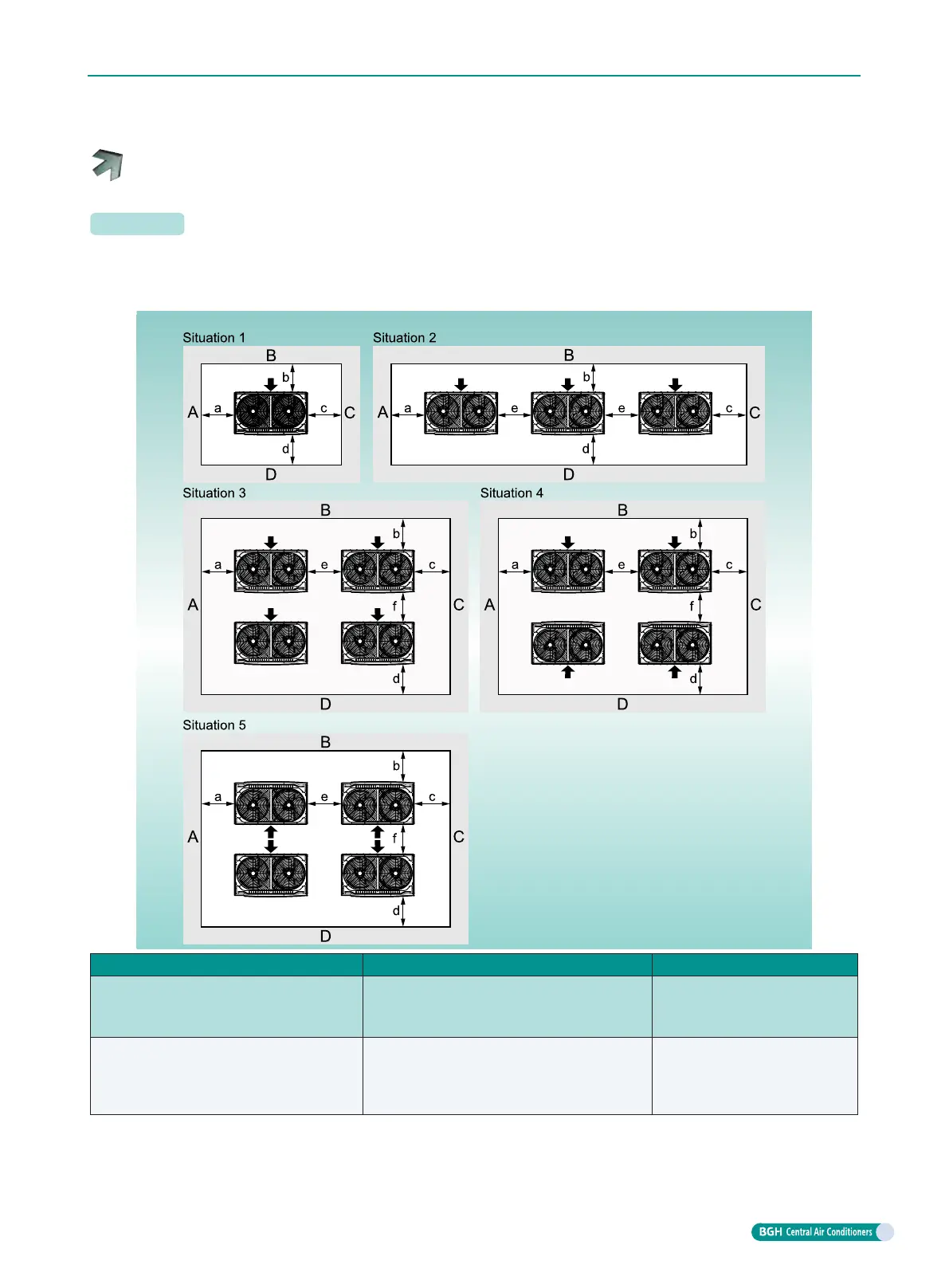

The installation space of the unit shall consider maintenance space and ventilation problem, choose one
installation method based on actual condition.
Situation A+B+C+D A+B
Situation 1
a≥300
b≥100
c≥100
d≥500
a≥300
b≥300
Situation 2
a≥300
b≥100
c≥100
d≥500
e≥100
a≥300
b≥300
e≥400
