9.3 Connection method introduction of communication cord

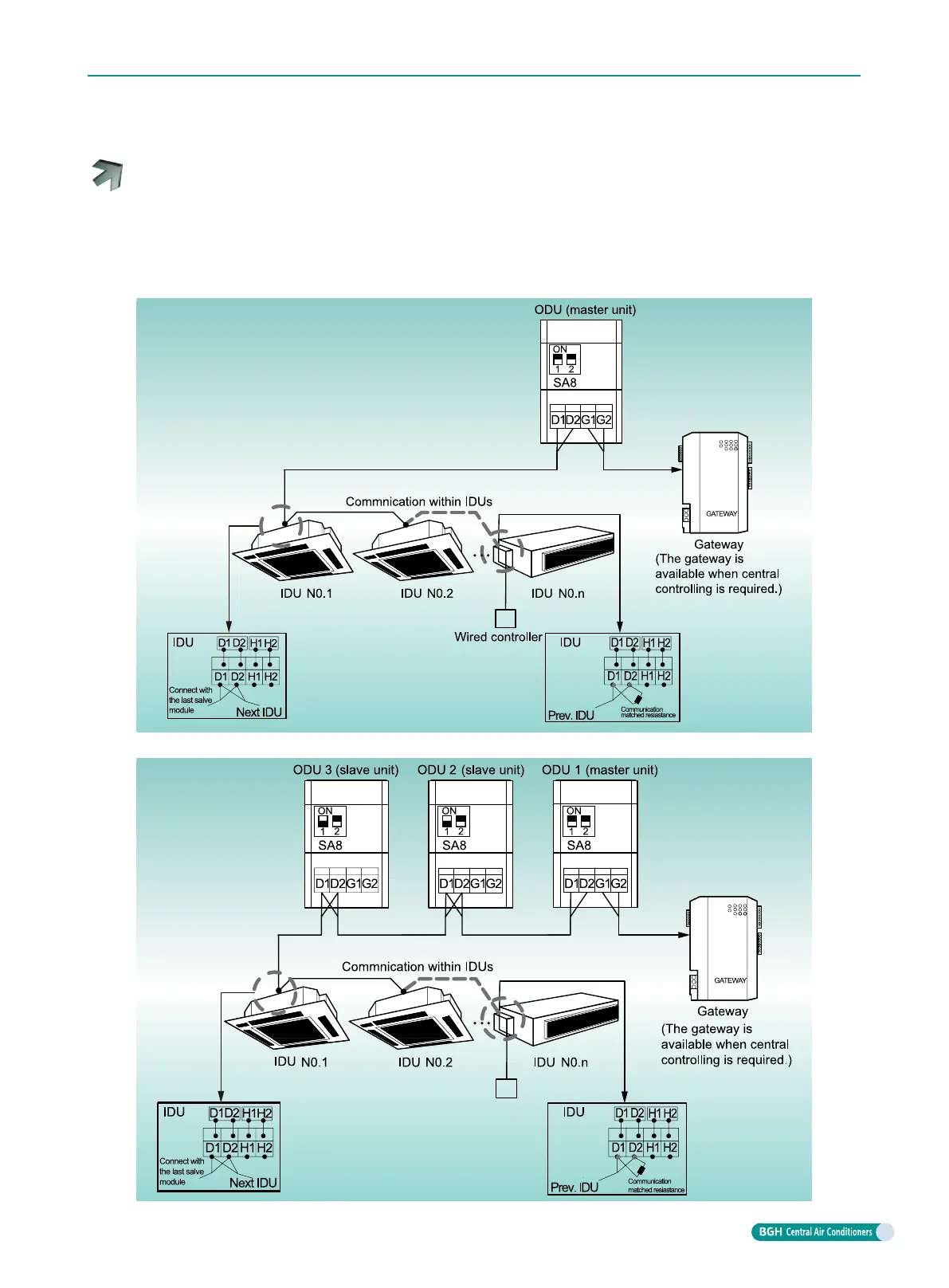

9.3.1 Communication connection between IDU and ODU
IDU and ODU is connected through the D1/D2 port of wiring board. Connection for a single unit and
modular connection is as follow:
