4. Function Characteristics
Measurement method: Dual slope integration
Reading Rate: 3 reading/sec
Polarity: Automatic, indicated minus, assumed plus
Overload indication: Blanking of all digits, except MSD, decimal point and sign
Power requirements: 1.5V x 2
Battery indication: Display indicates LO BT when approximately 20% of battery life remains.
Display: LCD, 3½ digit (1999 count)
Data hold: All function and ranges with this feature
Dimension: 193 x 73 x 25mm (L x W x H) approx
Weight: 145 grams (including battery, approx)
4.1 Accessories
Instruction manual
Test leads
AAA 1.5V x 2
5.．Operation and Recalibration

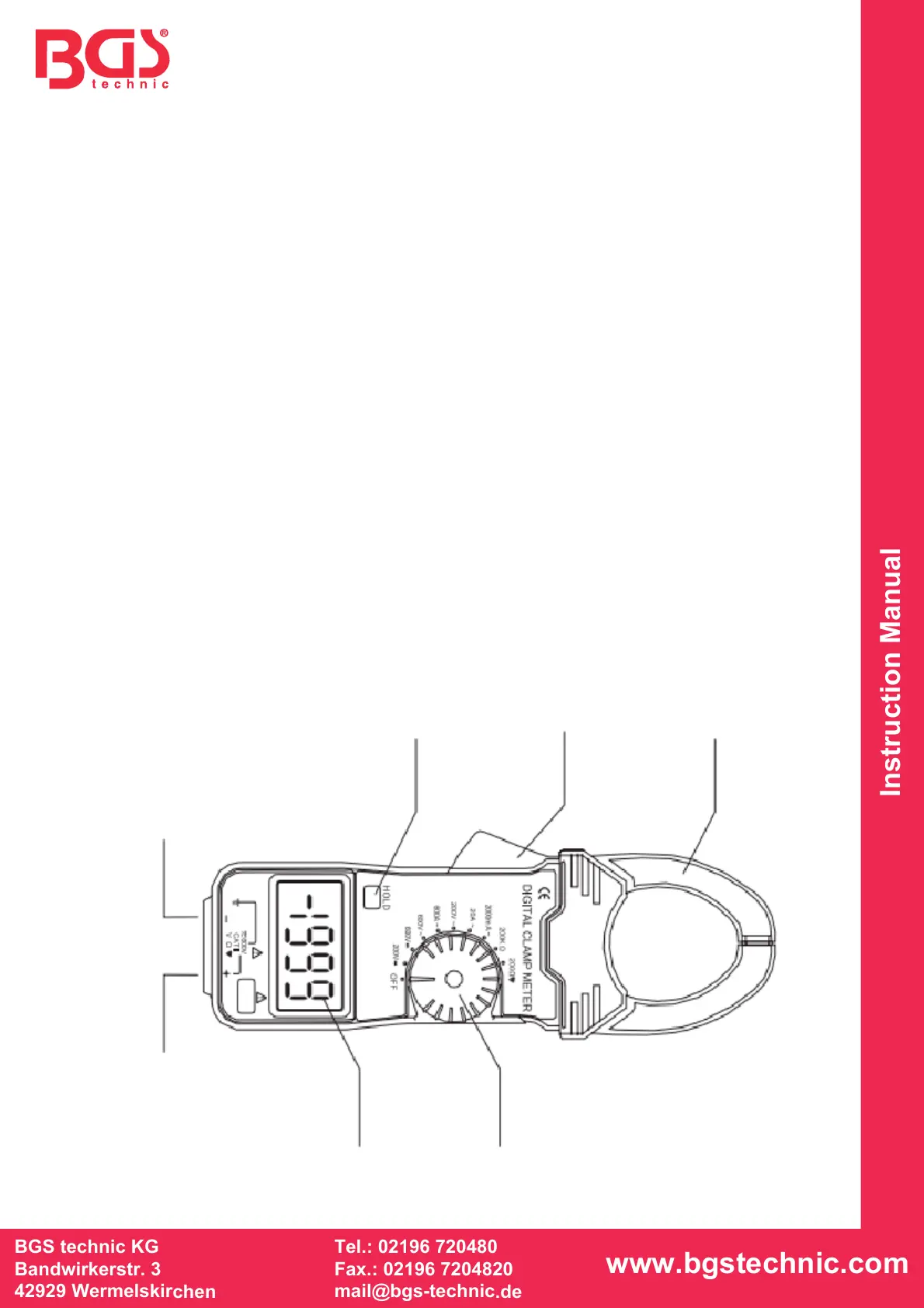

1 Transformer Jaws: Pick up the AC current flowing through the conductor.
2 Trigger: Press the lever to open the transformer jaws. When the lever is released, the jaws will
close again.
3 Data Hold Swith: A push switch (push on, do not pull to select function).All function and ranges
with this feature.
4 Rotary Switch: A rotary switch is used to select measurement Function and Range switch.
5 Display: 3½ digit (1999), decimal point, minus polarity, overrange and LO BAT indicators.
6 V. Ω. Input Connector: High input for all voltage, diode, continuity, measurement will accept
banana plugs.
7 COM Input Connector: Low input for all voltage resistance, diode, continuity, measurement, will
accept banana plugs.
1 2 3
4 5
6
7
