BH emotion evo - Troubleshooting: Operation Errors

Description
Error
Observations
System over current
01
Check that the connection between the motor and the
con troller is correct. If not, replace the controller.
System over current
02
Replace the controller.
TMM Sensor
03
Check that the connection between the TMM sensor and the
controller is correct. Check to see if the output of the TMM
sensor exceeds the normal range, it must be 0.1V-3.5V.
Motor error
04
Check the motor or controller connector.
Motor sensor error
05
Check that the connection between the motor and the
controller is correct. If the sensor inside the motor is broken,
replace the sensor or motor with a new one. Check that the
connection between the motor cable and the controller is
correct. If not, replace the controller.
Battery low
08
Check the battery level or replace it with a new one.
Motor blocked
09
Motor stopped due to accident. Motor off.
System over current
10
If there is a bad contact bad between the controller and the
motor connector, replace it with a new one.
Overheating
11
If the temperature exceeds the set value, the current gradually
weakens.
Protection against overheating
12
Enters into temperature protection mode and the controller
stops.
Communication error
13
Check the cable and the connector.
Pedal error
14
Take your foot off the pedal and switch on again.
Sensor error
15
Readjust the sensor.
Can Communication
16
Check connection motor and can converter. If error does not
disappear, contact a BH dealer.
System overvoltage
21
Restart the system. If error does not disappear, contact a BH dealer.
Torque sensor out of range
22
Over temperature
23
Below temperature
24
Current out of range
25
Torque sensor out of range
26
Speed sensor signal
27
Temperature discharging error
28

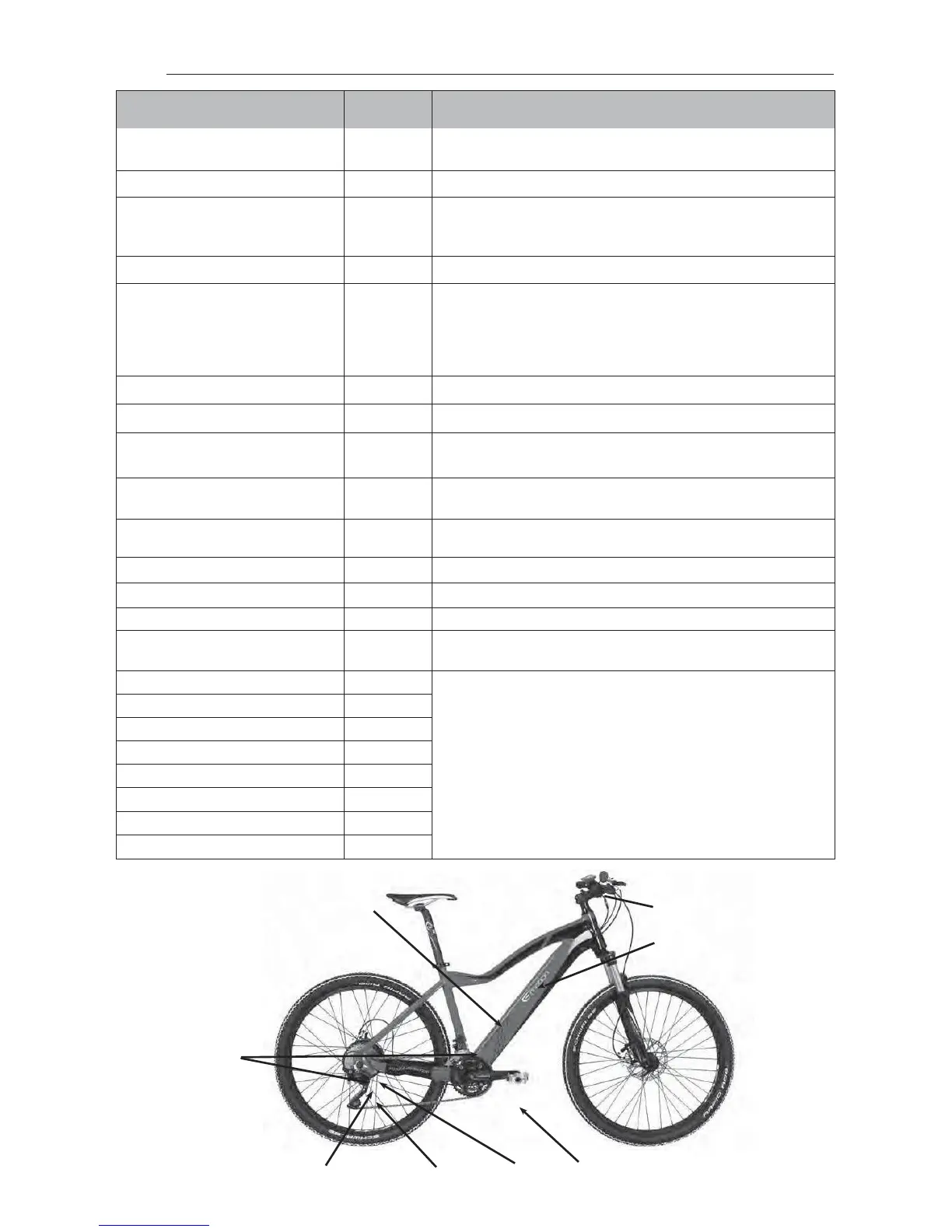

1/ 2 / 10 / 21 13 / 16 / 27 / 28
8
22 / 23 / 24
25 / 26
4 / 5 / 9 / 11 / 12 15 3
14
18
