BIC 960 - Page 12

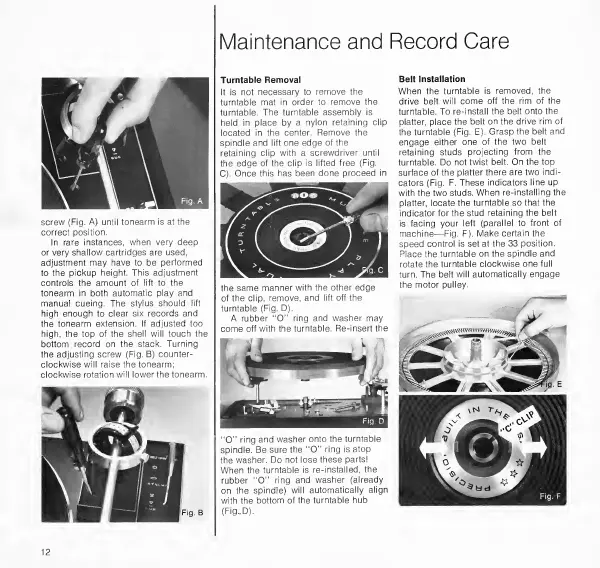

Maintenance and Record Care
Belt Installation
When the turntable is removed, the
drive belt will come off the rim of the
turntable. To re-install the belt onto the
platter, place the belt on the drive rim of
the turntable (Fig. E). Grasp the belt and
engage either one of the two belt .
retaining studs projecting from the
turntable. Do not twist belt. On the top
surface of the platter there are two indi¬
cators (Fig. F. These indicators line up
with the two studs. When re-installing the
platter, locate the turntable so that the
indicator for the stud retaining the belt
is facing your left (parallel to front of
machine—Fig. F). Make certain the
speed control is set at the 33 position.
Place the turntable on the spindle and
rotate the turntable clockwise one full
turn. The belt will automatically engage
the motor pulley.
Turntable Removal
It is not necessary to remove the
turntable mat in order to remove the
turntable. The turntable assembly is
held in place by a nylon retaining clip
located in the center. Remove the
spindle and lift one edge of the
retaining clip with a screwdriver until
the edge of the clip is lifted free (Fig.
C). Once this has been done proceed in
p “0” ring and washer onto the turntable
spindle. Be sure the “O” ring is atop
the washer. Do not lose these parts!
When the turntable is re-installed, the
rubber "0” ring and washer (already
on the spindle) will automatically align
with the bottom of the turntable hub
B (Fig..D).
screw (Fig. A) until tonearm is at the
correct position.
In rare instances, when very deep
or very shallow cartridges are used,
adjustment may have to be performed
to the pickup height. This adjustment
controls the amount of lift to the
tonearm in both automatic play and
manual cueing. The stylus should lift
high enough to clear six records and
the tonearm extension. If adjusted too
high, the top of the shell will touch the
bottom record on the stack. Turning
the adjusting screw (Fig. B) counter¬
clockwise will raise the tonearm;
clockwise rotation will lower the tonearm.
the same manner with the other edge
of the clip, remove, and lift off the
turntable (Fig. D).
A rubber “O" ring and washer may
come off with the turntable. Re-insert the
12
