7
INSTRUMENTS AND CONTROLS
The steering arm and control handle
provide controls for steering, forward
and reverse speed control, braking,
raising and lowering the forks, and
horn. Control handles on all models
have a “belly-button” reversing switch
which reverses the direction of the
truck upon contact with the operator.

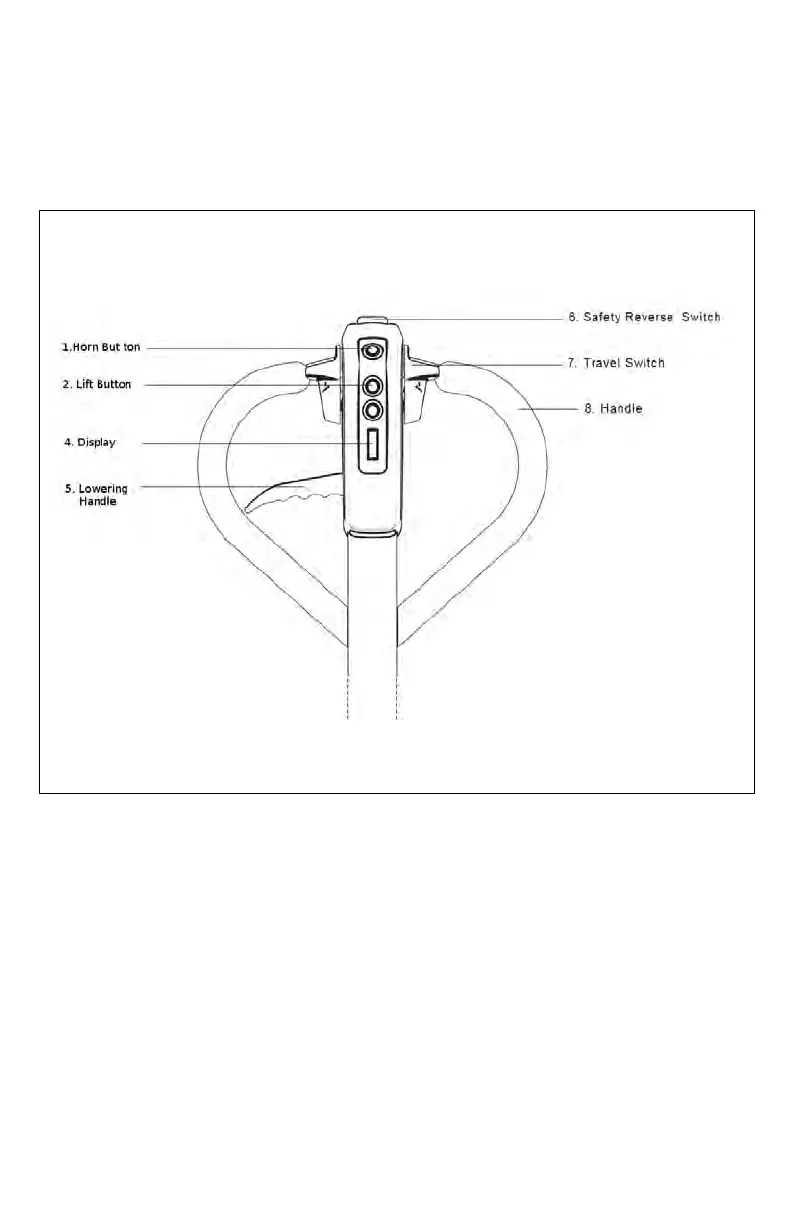

Control Handle
On the E25 pushing the red disconnect
plunger removes all power from the
truck circuits in the event of an emer-
gency.
