BIGREP ONE GENERATION 3 - Page 25

II. Electric BigRep

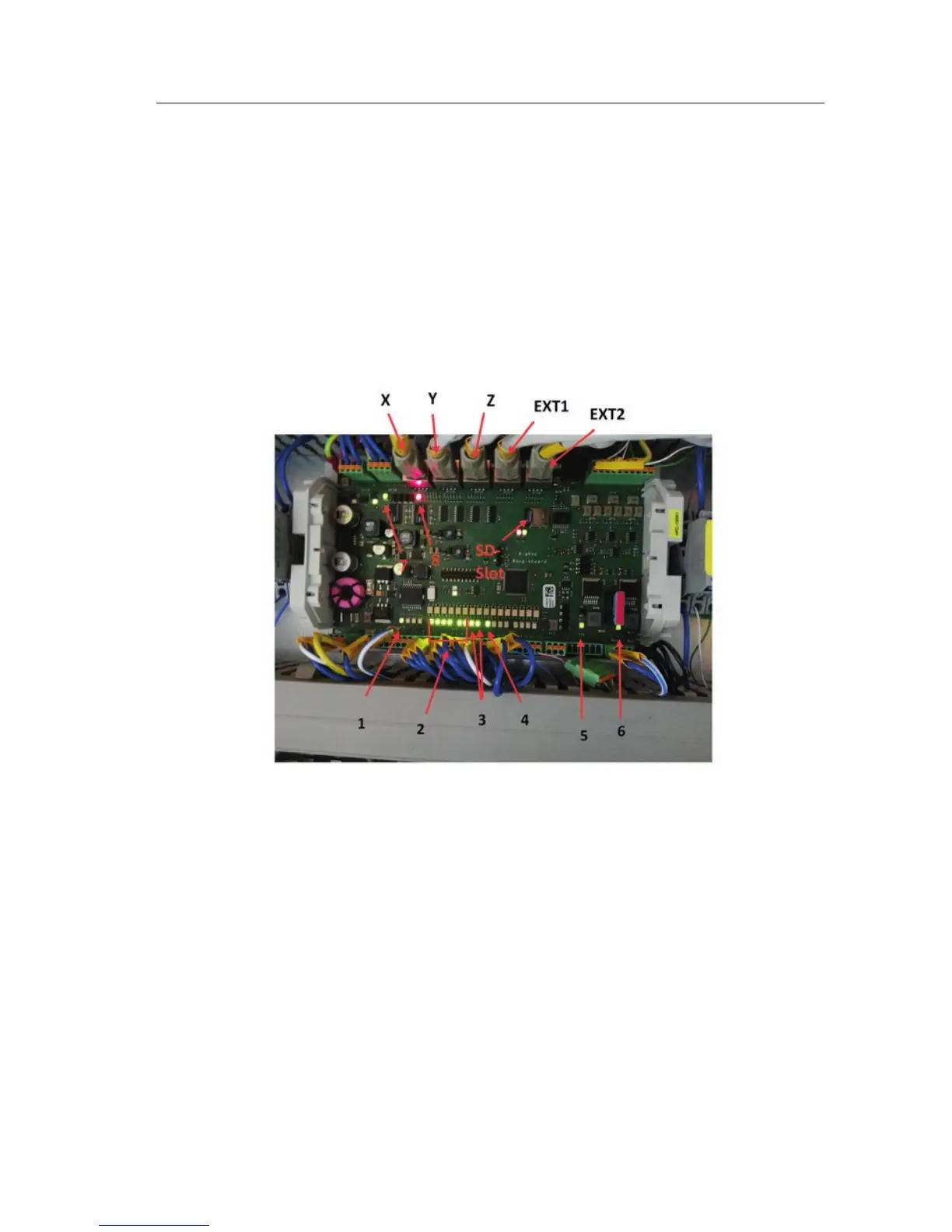

LEDs
1. BED: Led´s on when heating
2. End stops: LED´s 1 on when end stops are not triggered
3. Filament out sensor T0 and T1: LED´s on when filament in
4. Emergency-Stop: LED´s on when not hit
5. Extruder heating T0: LED´s on when heating
6. Extruder heating T1: LED´s on when heating
7. Extruder T0/T1: green if extruder is not activated (upper position)
8. Extruder T0/T1: red if extruder is activated (lower position)
II-B 5/7
