Wiring
The SFS V2.0 uses a splitting cable, the 3-pin connectors plug into the
motherboard, and the 4-pin connector plugs into the SFS V2.0.

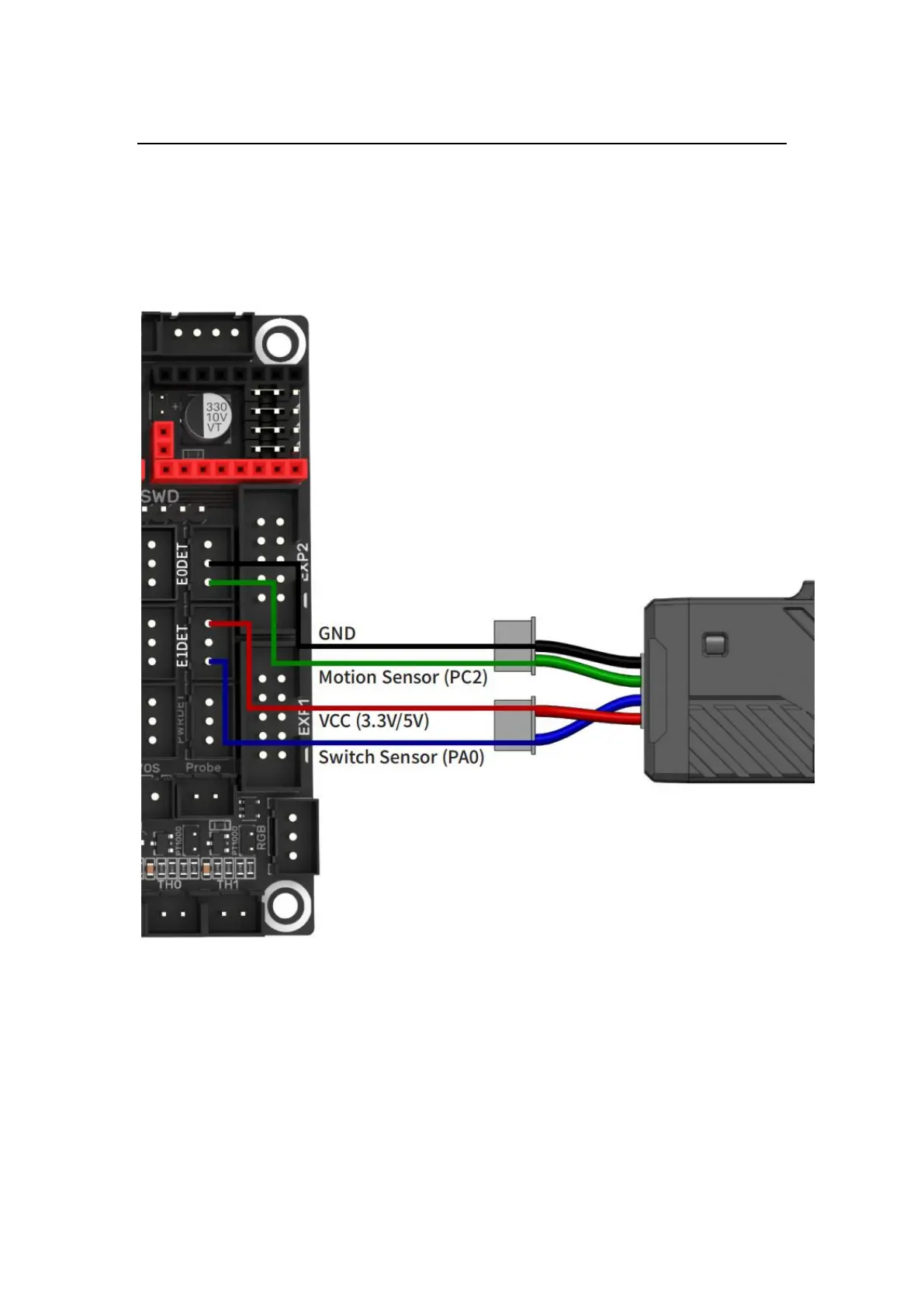

Take the SKR 3 motherboard as an example, the wiring is as shown in the figure
below:
Figure 2
