Shenzhen BIGTREE Technology CO., LTD.
BIG TREE TECH

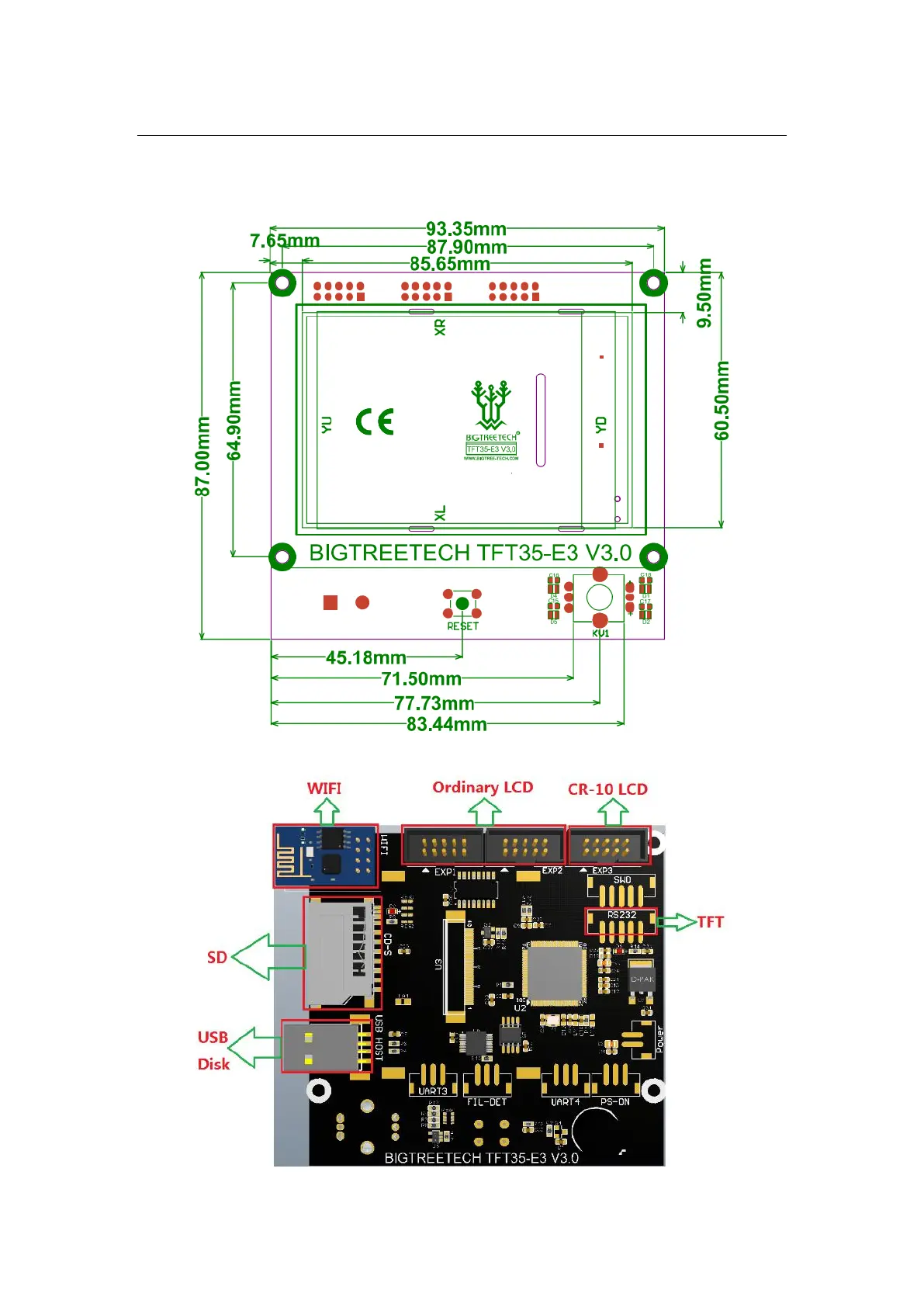

Ⅲ.Ports on the board
1.Size diagram
2.Connection diagram

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the BIGTREETECH TFT35 E3 V3.0 and is the answer not in the manual?

BIGTREETECH TFT35 E3 V3.0 Specifications

General IconGeneral
Screen Size3.5 inches
Touch ScreenYes
Resolution480x320 pixels
Supported ModesMarlin Mode, Touch Mode
Power SupplyDC 5V
Product TypeTouch Screen Display
Firmware UpdateVia SD card
Supported FirmwareMarlin
Dimensions93 x 87 mm
InterfaceEXP1, EXP2, TFT
