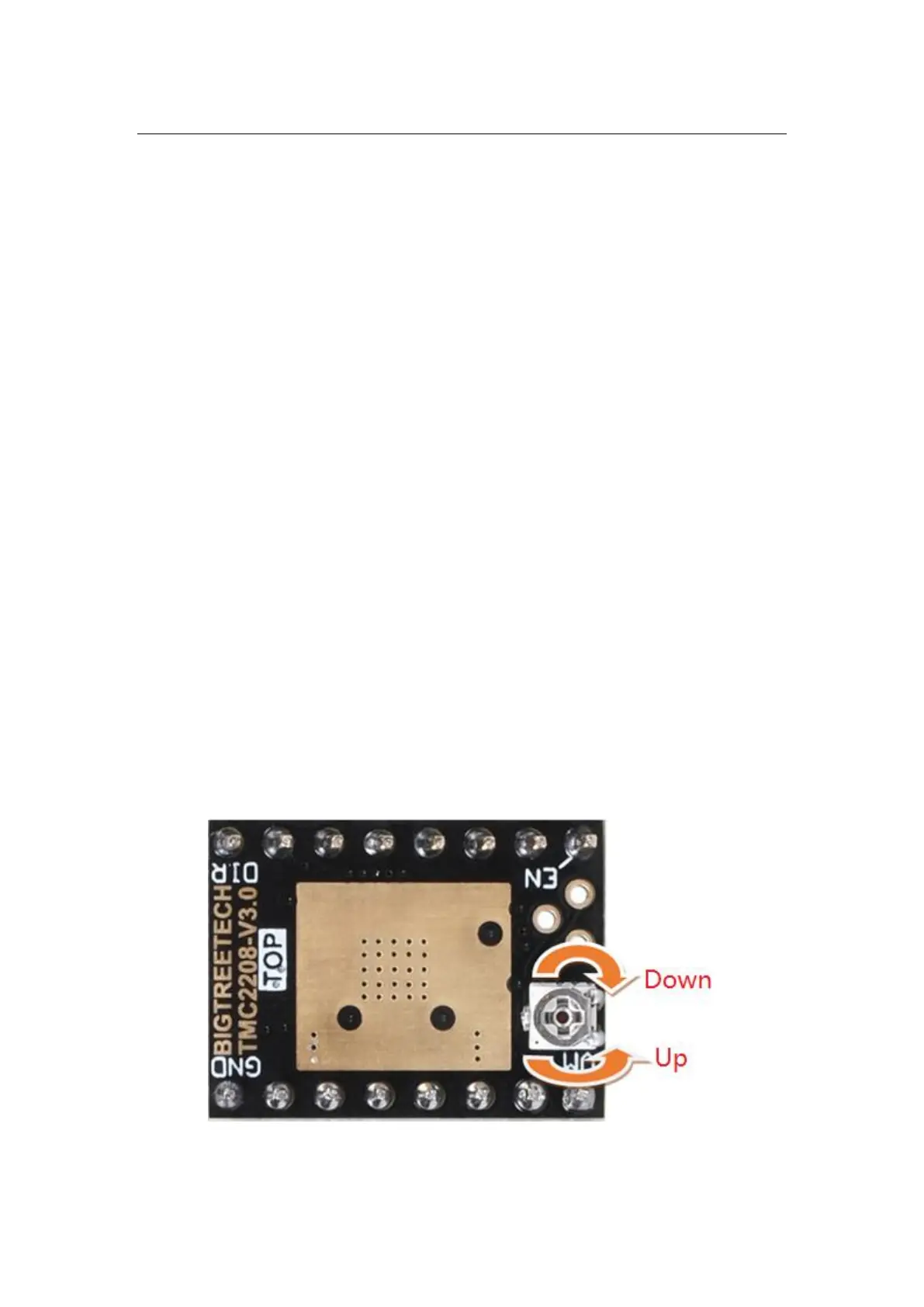

Potentiometer regulation instructions:
Clockwise Rotating Potentiometer - Reduces Vref, thereby reducing drive
current;
Counterclockwise rotating potentiometer - Increase Vref, thereby
increasing the driving current.
The accurate voltage of Vref can only be measured when the main
board is supplied with 12V or 24V voltage.
The range of Vref value: default value: 1V (+0.2); MAX: 2V; MIN:
0V;
Rotating potentiometer must not use too much force to prevent
irreversible damage to the potentiometer; when the counter-clockwise
rotation reaches the maximum, if it continues to rotate, it will become the
minimum; similarly, when the clockwise rotation reaches the minimum, if
it continues to rotate, it will become the maximum
