BIGTREETECH TMC2209 V1.2 User Manual

TMC2209-V1.2 manual Shenzhen Biqu Technology Co., Ltd.
8 / 9

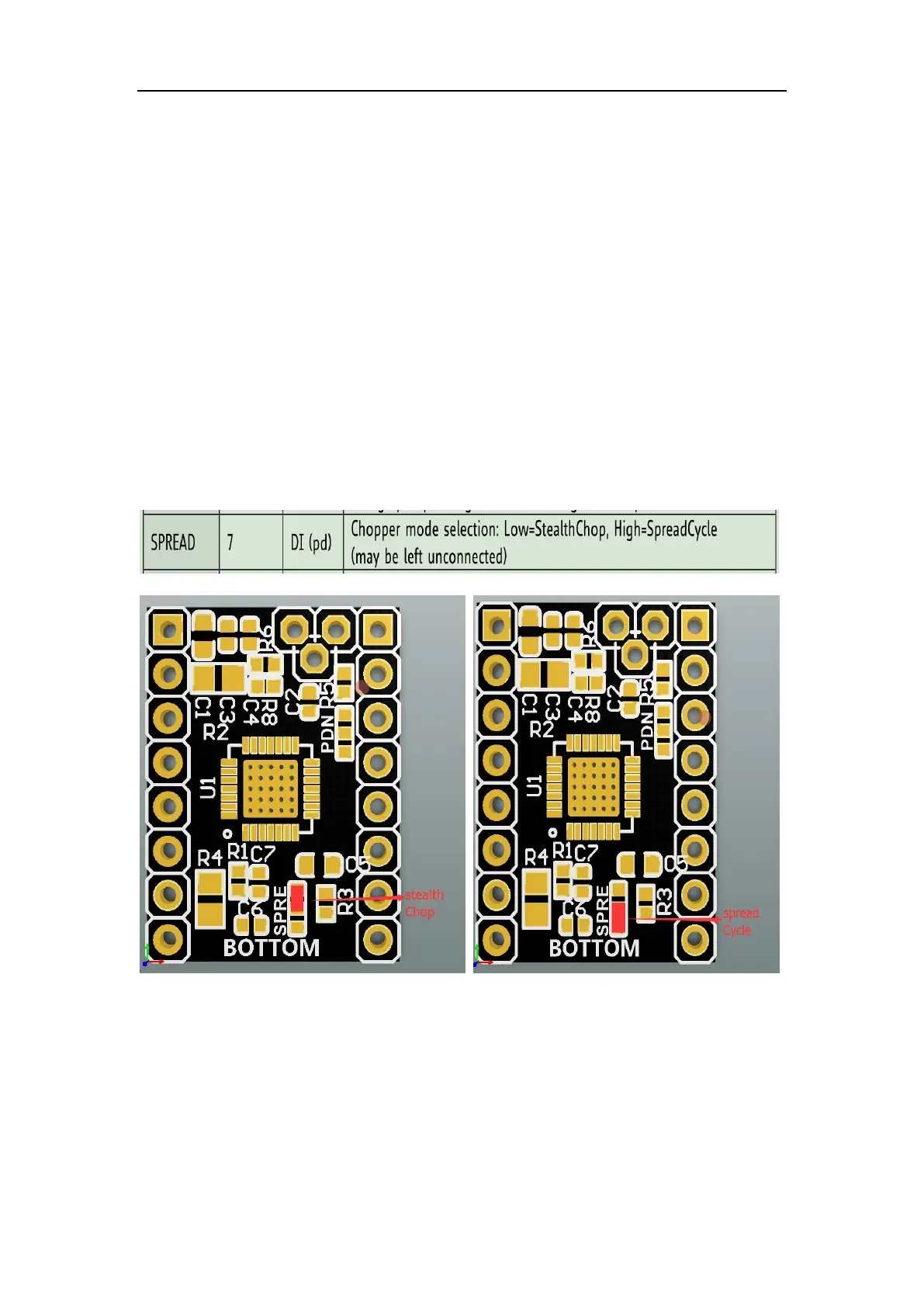

8.3、Mute mode and anti-shake mode selection
The default mode used by the factory is mute mode,
as shown in the picture on the left of the following
figure.If anti-shake mode is needed,remove the
resistance and weld it to the following two pads, as
shown in the picture on the right of the picture below.
9、Matters needing attentions

BIGTREETECH TMC2209 V1.2 Specifications

General

Microstepping	Up to 1/256
Interface	UART
Logic Voltage	3.3V / 5V
Version	V1.2
Features	StealthChop2, SpreadCycle, StallGuard4, CoolStep
Protection	Short circuit
Dimensions	20mm x 15mm
