created: 04.16.19 E4-WM5-Y630A00_2 Page 4 of 22 latest revision: 09.29.20
D.

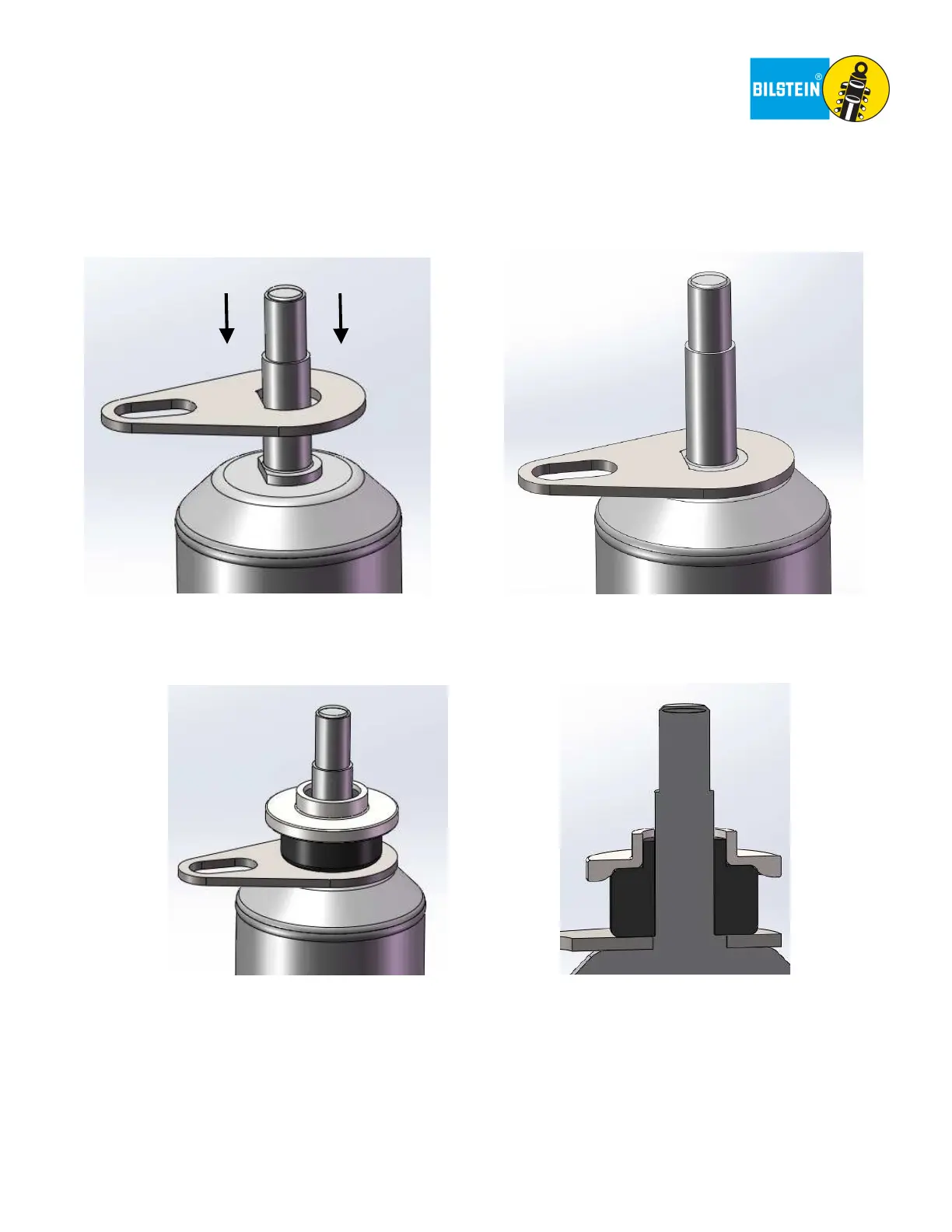

Slide the Anti Rotation Plate (BOM item #4) over the threaded pin and onto the shock body as shown below. Verify
the D-ring hole in the plate seats over the D-ring boss at the base of the pin. Failure to lock this D-ring into place as
shown below may cause your shock to rotate and contact the E-Brake cable as well as other components on the
vehicle.
E.
Slide the Lower Bushing (BOM item #5) and the appropriate Alignment Washer for your vehicle (BOM item #6 or #7
depending on year; see BOM on page 2) over the threaded pin on the shock body as shown below.
F.
Install the lower shock mount and thread in the OE lower shock bolt/washer that was removed in step A. Thread in
until the lower shock mount is almost snug, but don’t tighten yet.
To Next Page
