Binary B-900-MOIP-4K-CTRL Networking Guide

6
have no impact on available bandwidth. The bandwidth requirements of other devices on the
network should also be considered.
Each MoIP Transmitter will consume 250-850 Mbps (4K) or 150-750 Mbps (1080p) of
the available bandwidth. The lowest bandwidth link limitation applies no matter to which
switch in the multiple switch setup the transmitter is connected. To calculate the required
bandwidth needed to support the desired number of MoIP Transmitters, multiply the number
of MoIP Transmitters by 0.85. This will give you the bandwidth in Gbps. For example, 10 MoIP
transmitters would require 8.5 Gbps. In the diagrams below, X Gbps indicates a multiple gigabit
connection between switches. The throughput of this uplink must accommodate, for this
example, 8.5 Gbps for the MoIP system to operate optimally.

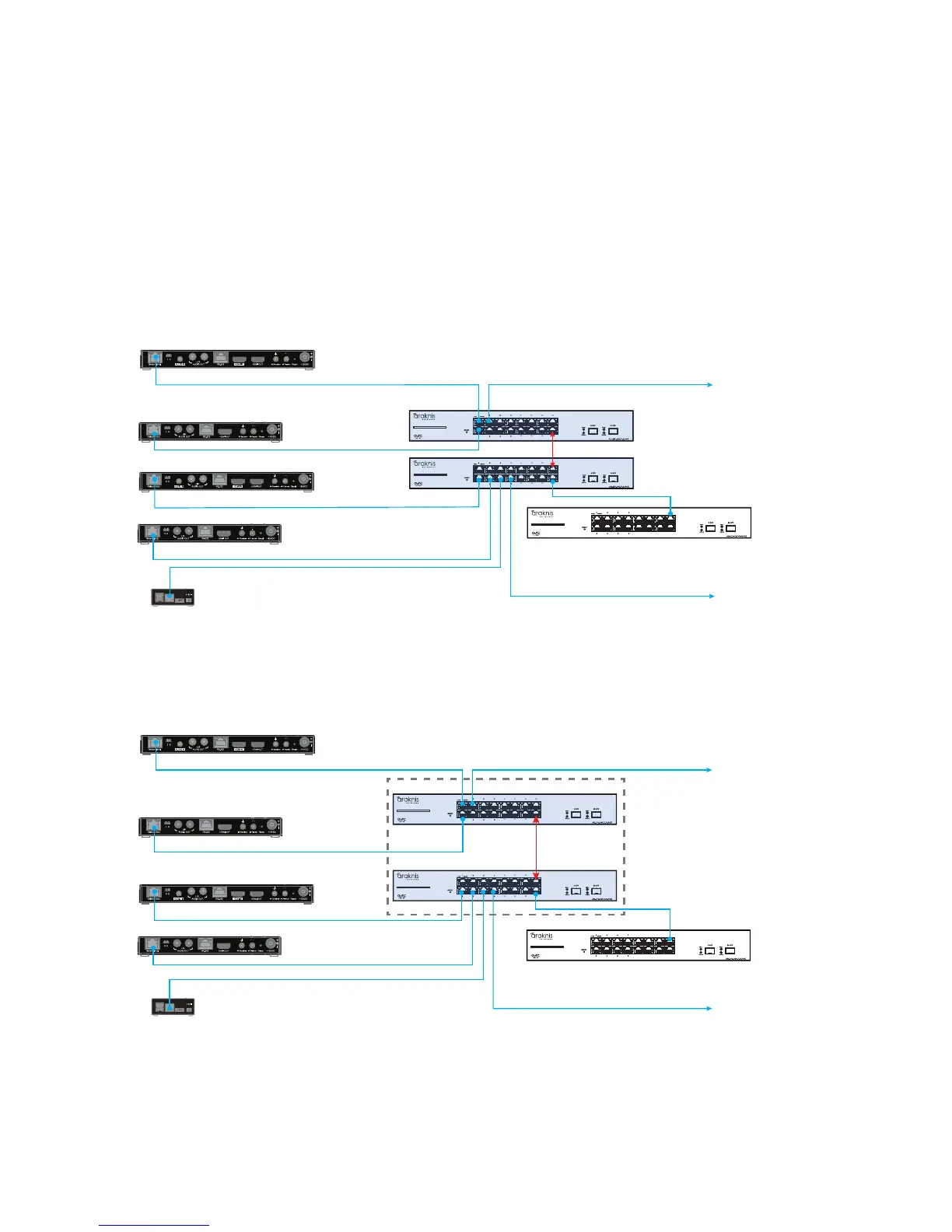

Cascaded Switches
9 11 13 15
10 12 14 16
9 11 13 15
10 12 14 16
9 11 13 15
10 12 14 16
Network
+5VDC
MoIP Transmitter
MoIP Transmitter
MoIP Receiver
MoIP Extended Switch
MoIP Core Switch
xGbps
xGbps
Main LAN Switch
MoIP Receiver
MoIP Controller
To other network device
To other network device
Stacked Switches
9 11 13 15
10 12 14 16
9 11 13 15
10 12 14 16
9 11 13 15
10 12 14 16
Network
+5VDC
MoIP Transmitter
MoIP Transmitter
MoIP Receiver
MoIP Switch 1
MoIP Core Switch
MoIP Core
Switch Stack
Main LAN Switch
MoIP Receiver
X Gbps
MoIP Controller
To other network device
To other network device
