Binary B-900-MOIP-4K-CTRL Networking Guide

5
MoIP System Network Setups
Single switch MoIP network congurations are supported by Araknis 210 PoE and 310 PoE
Series switches. Integrators familiar with the above requirements and the conguration of
stackable and cascaded switches with multi-gigabit uplinks will be able to create very large
MoIP deployments.

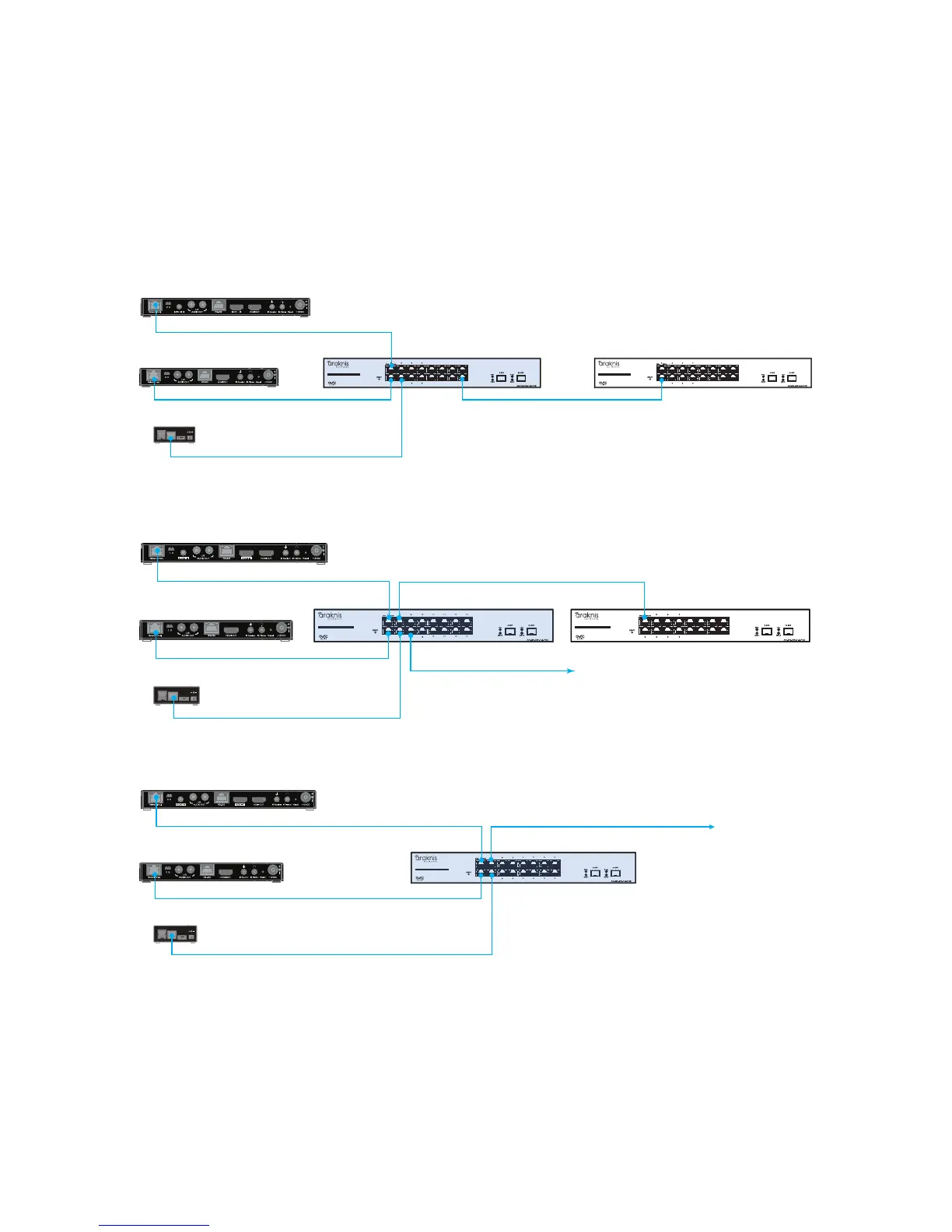

Single Switch
Dedicated MoIP Switch (RECOMMENDED)
Network
+5VDC
9 11 13 15
10 12 14 16
9 11 13 15
10 12 14 16
MoIP Transmitter
MoIP Receiver
MoIP Controller
Dedicated MoIP Switch Main LAN Switch
Shared MoIP Switch
9 11 13 15
10 12 14 16
9 11 13 15
10 12 14 16
Network
+5VDC
To other network device
MoIP Switch Main LAN Switch
MoIP Transmitter
MoIP Receiver
MoIP Controller
MoIP on Main LAN Switch
9 11 13 15
10 12 14 16
Network
+5VDC
Main LAN Switch
MoIP Transmitter
MoIP Receiver
MoIP Controller
To other network device
Multiple Switches
Please refer to your network switch manufacturers’ documentation to enable the critical
features for optimal performance in multiple switch MoIP network congurations.
Bandwidth considerations are critically important. The maximum number of MoIP
Transmitters which can be supported by a given network topology is limited by the lowest
bandwidth link in the network. Typically, this will be the link between switches. MoIP Receivers
