7
ARAKNIS 210/310 PoE SERIES CONFIGURATION
1. Congure Network Switch
Steps below use an Araknis 210 PoE or 310 PoE Series switch as an example
1. Factory default the MoIP switch to be used for all MoIP Components (not necessary for
new switches). Press and hold the reset button for 10—15 seconds until the Status LED
ashes once. This will reboot the switch and reset to factory settings.
2. Connect the dedicated MoIP switch directly to your Main LAN switch. (The Main LAN
switch is the main network switch into which all other switches and network devices are
connected. The Main LAN switch is the only switch connected to the router. A dedicated
MoIP switch is preferred but not required. See ‘Network Guide’ for more information.)
3. Access the local of the MoIP Switch.
Note: Default login in credentials for an Araknis which are araknis / araknis. The Default IP
address is 192.168.20.254.

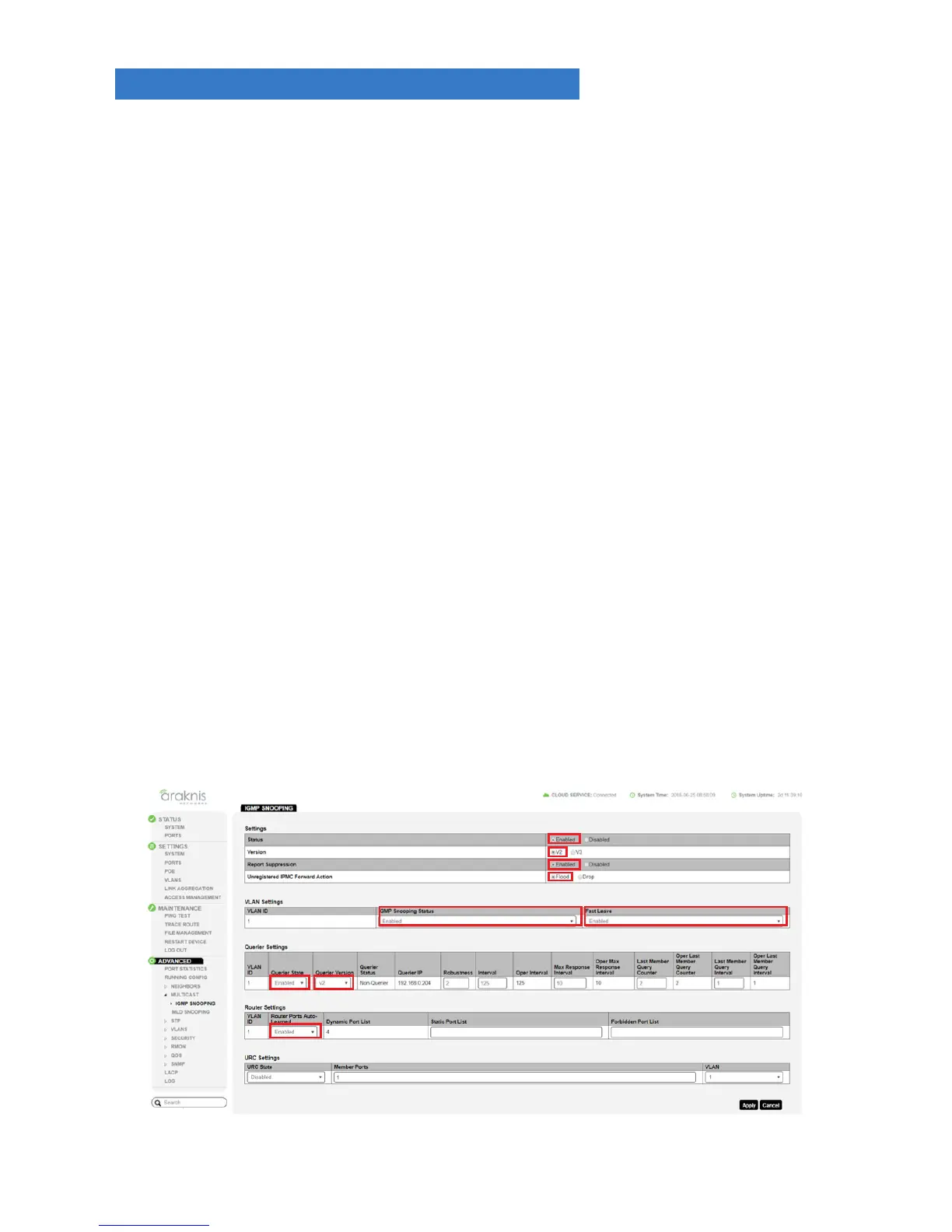

2. Enable IGMP Snooping
Choose ADVANCED > MULTICAST > IGMP SNOOPING, then check options as follows:
1. Status: Enabled
2. Version: V2
3. Report Suppression: Enabled
4. Unregistered IPMC Forward Action: Flood
5. IGMP Snooping Status: Enabled
6. Fast Leave: Enabled
7. Querier State: Enabled
8. Querier Version: V2
9. Router Settings > Router Ports Auto-Learned: Enabled
Click Apply to save these settings
