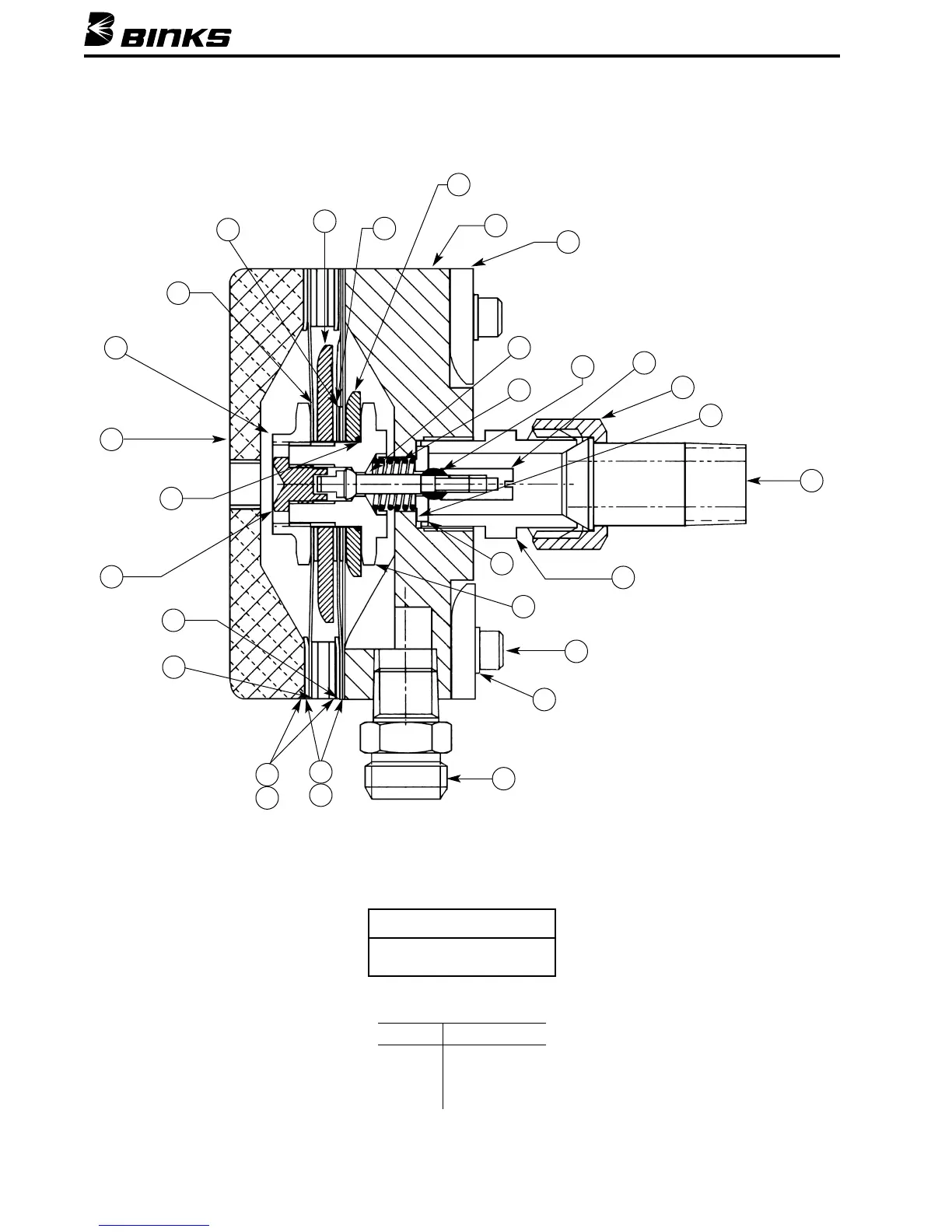

Binks MODELS 84-598 & 84-599 REMOTE FLUID PRESSURE REGULATORS
SERVICE INSTRUCTIONS
TORQUE SPECIFICATIONS
Item Torque
3 100-110" lbs.
4 110-120" lbs.
22 35-45" lbs.
NOTE
Use Teflon tape on threads of
items 3 and 17.
28
29
31
24
20
15
21
19
14
7
6
12
8
4
2A
16
3
11
9
27
25
17
23
22
26
5
13
2B
10
18
