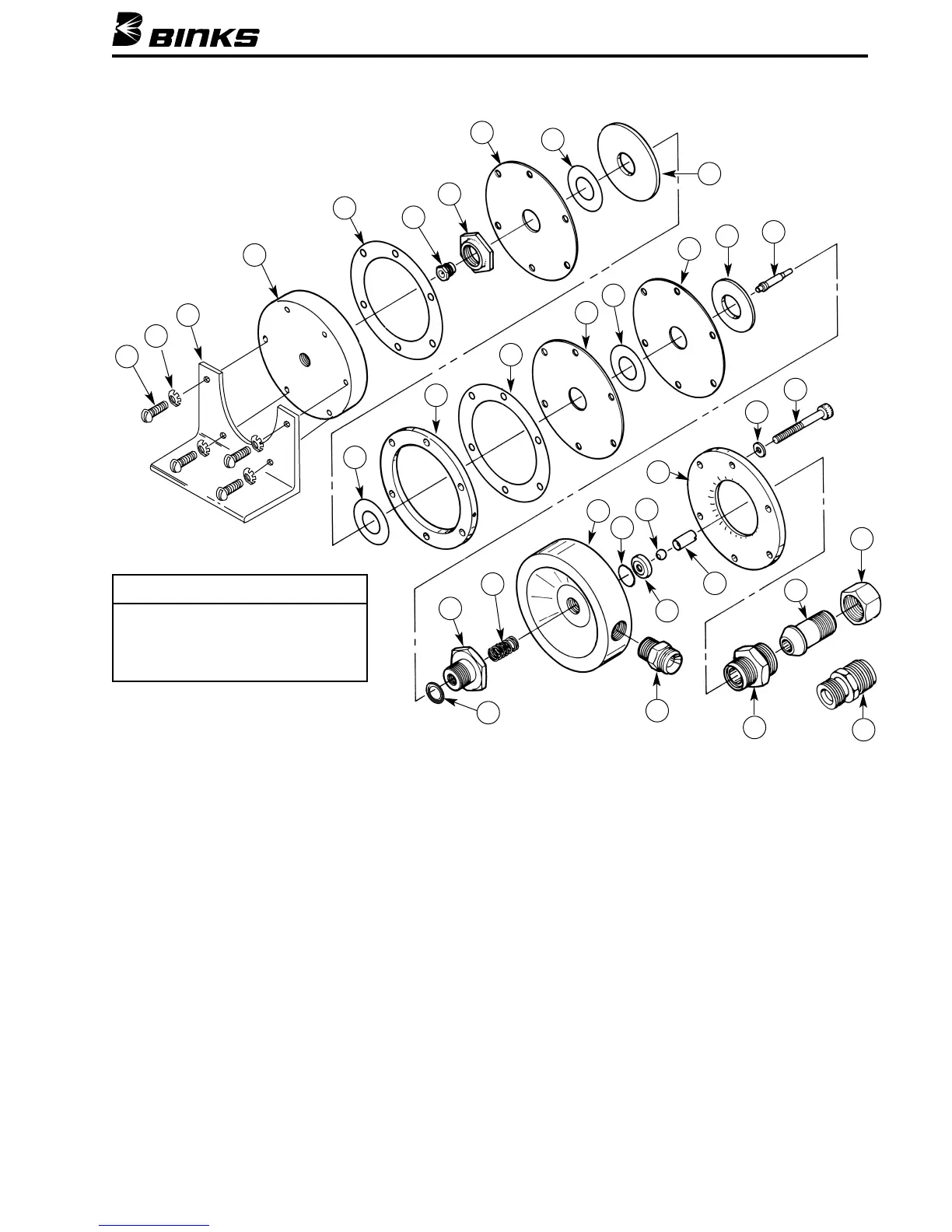

Binks 84-598 - Detailed Parts List and Identification; Binks Models 84-598 & 84-599 Parts Identification; Parts List for Ordering

5
Binks MODELS 84-598 & 84-599 REMOTE FLUID PRESSURE REGULATORS
ITEM PART
NO. NO. DESCRIPTION QTY.
1A 20-227
■ RD. HD. MACHINE SCREW
(10-24 x 1/2" Long) ............................ 4
1B 20-2530■ LOCK WASHER ................................ 4
1C 95-19407■ MOUNTING BRACKET ...................... 1
2A 84-534 BONNET ............................................ 1
2B 84-463*† GASKET ............................................ 1
3 84-333 SOCKET ............................................ 1
4 84-331 NUT .................................................. 1
5 84-399*† DIAPHRAGM .................................... 1
6 84-388*† GASKET ............................................ 1
7 84-398 DISK .................................................. 1
8 (SAME AS ITEM 6) ............................ 1
9 84-532 SPACER.............................................. 1
10 (SAME AS ITEM 2B).......................... 1
11 84-329*† DIAPHRAGM .................................... 1
12 (SAME AS ITEM 6) ............................ 1
13 (SAME AS ITEM 5) ............................ 1
14 84-328*† DISC .................................................. 1
15 84-395 ROD .................................................. 1
16 20-5921*† O-RING (To Prevent Leakage) .............. 1
17 84-467 RETAINER.......................................... 1
18 84-535*† SPRING .............................................. 1
19 84-533 BODY
(Alum.) .................................... 1
ITEM PART
NO. NO. DESCRIPTION QTY.
20 84-524
† VALVE (Tungsten Carbide) .................. 1
20 84-538* VALVE (Tungsten Carbide) .................. 1
21 84-493 FLANGE ............................................ 1
22 20-1375 LOCKWASHER (#10) .......................... 6
23 20-3336 SOC. HD. CAP SCREW
(10-24 x 1-3/4" Long) ........................ 6
24 84-336 CAP NUT (Model 84-598).................... 1
24 84-470 CAP NUT (Model 84-599).................... 1
25 84-523† SEAT (Tungsten Carbide) .................... 1
25 84-537* SEAT (Tungsten Carbide) .................... 1
26 83-2484 D.M. NIPPLE (Stainless Steel)
(1/4" NPT x 3/8" NPS)
........................ 1
27 84-337 INLET ................................................ 1
28 84-318 TAILPIECE.......................................... 1
29 72-337 SWIVEL NUT .................................... 1
30 84-529■▲ INLET (3/8" NPS) ................................ 1
31 84-526†* GASKET ............................................ 1
■ Optional. Please order separately.
* Also available in Repair Kit 6-525 (Model 84-598). Kit not furnished,
please order separately.
▲ Item 30, when used, replaces the three Items 27, 28, 29.
† Also available in Repair Kit 6-526 (Model 84-599). Kit not furnished,
please order separately.
PARTS LIST
When ordering, please specify Part No.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
25
26
27
28
29
30
24
22
23
1A
2A
2B
1B
1C
31
NOTE
Model 84-598 uses 84-538 valve (20) and
84-537 seat (25).
Model 84-599 uses 84-524 valve (20) and
84-523 seat (25).
